Vehicle Specs
|
TRX-4MT Chevrolet K10 98064-1 |
||||||||||||||||||
|
Product Description

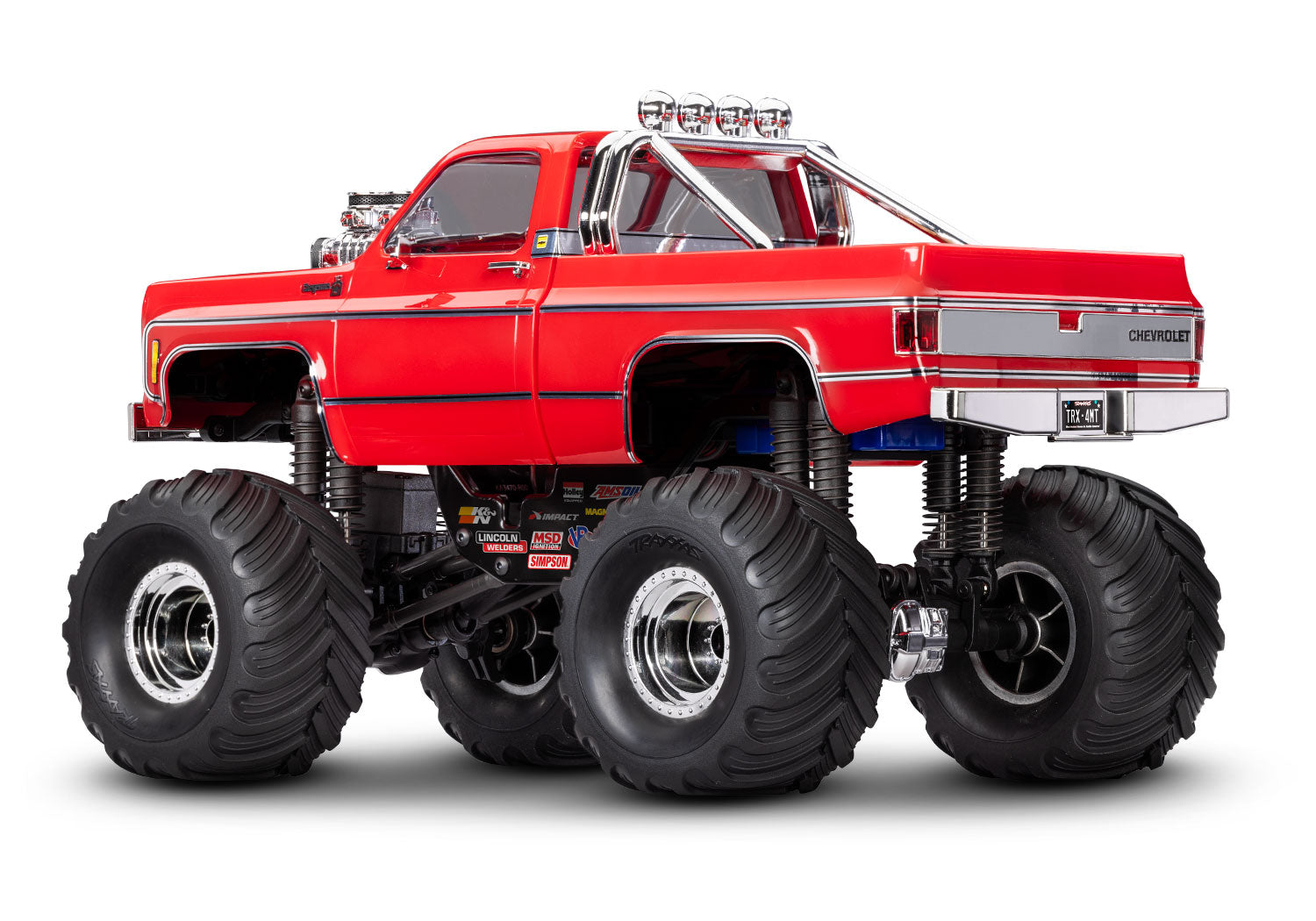

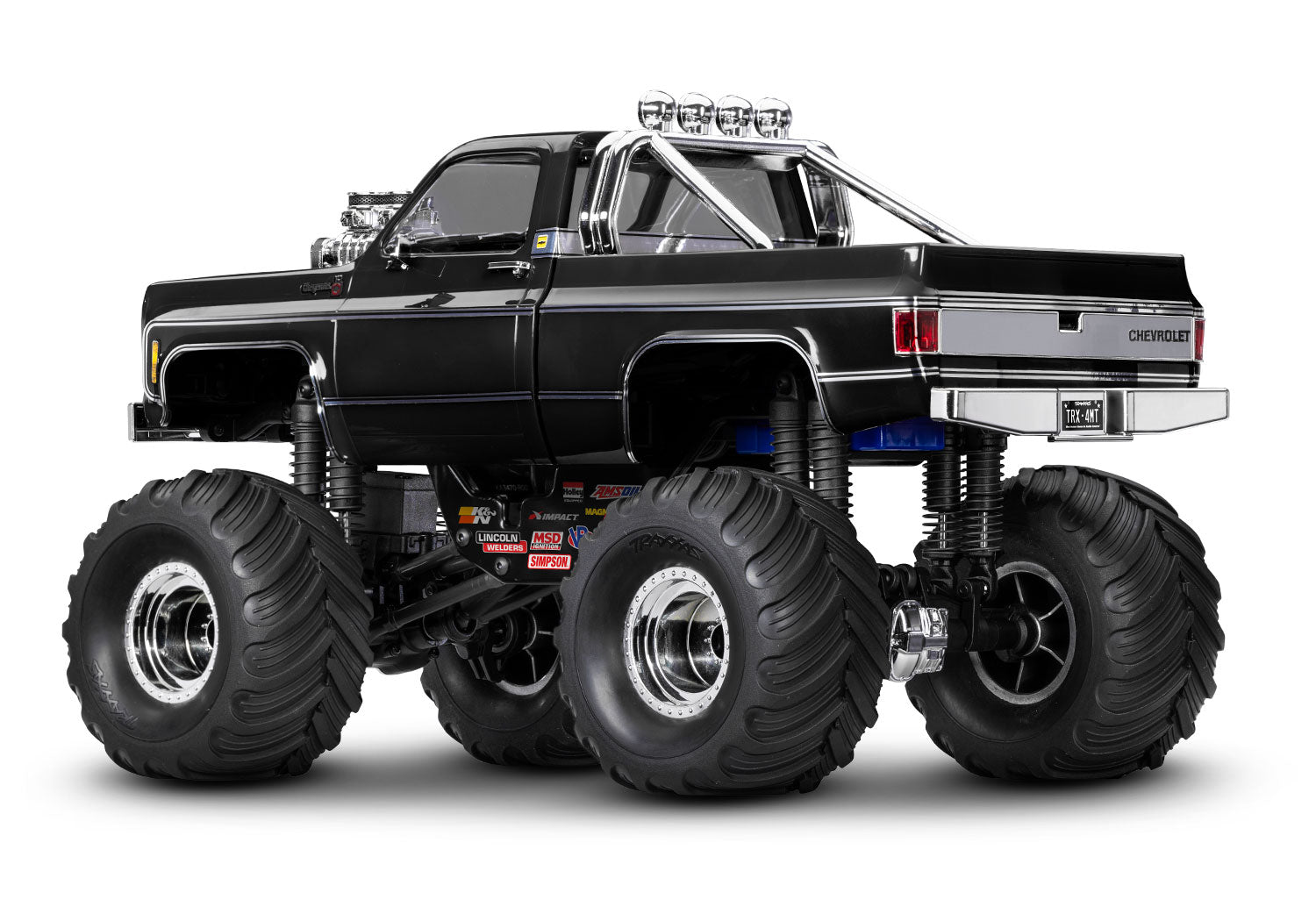

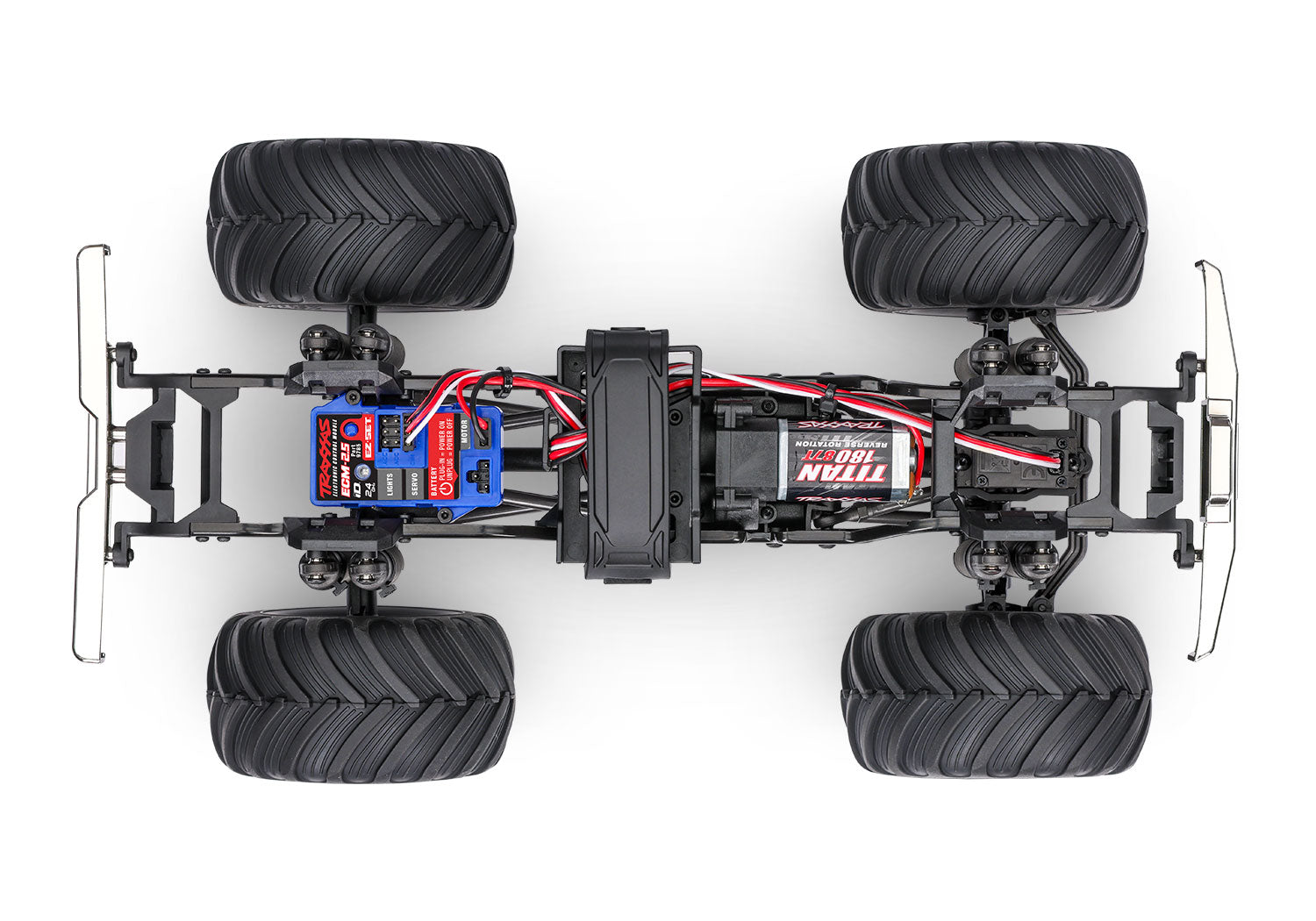

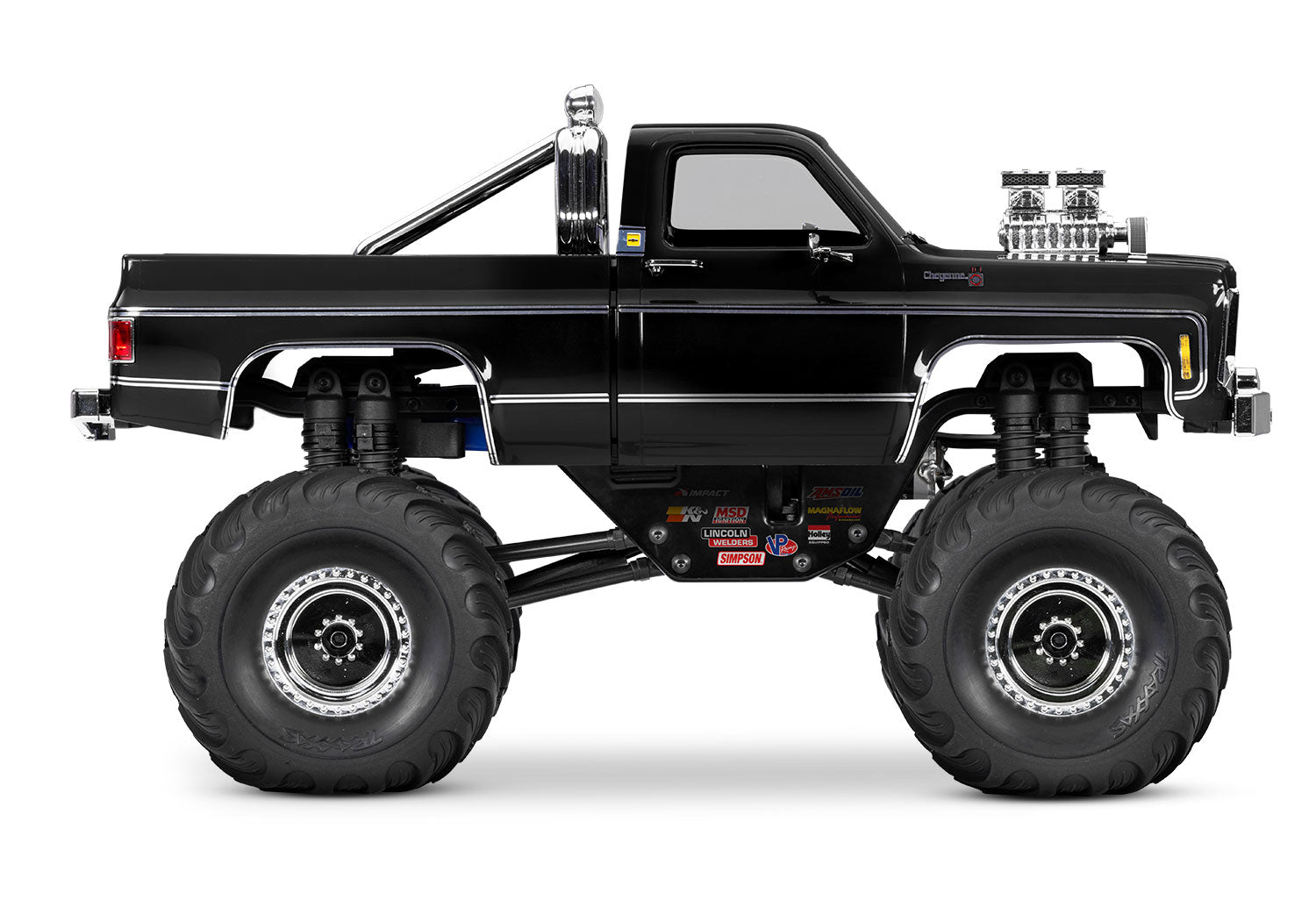

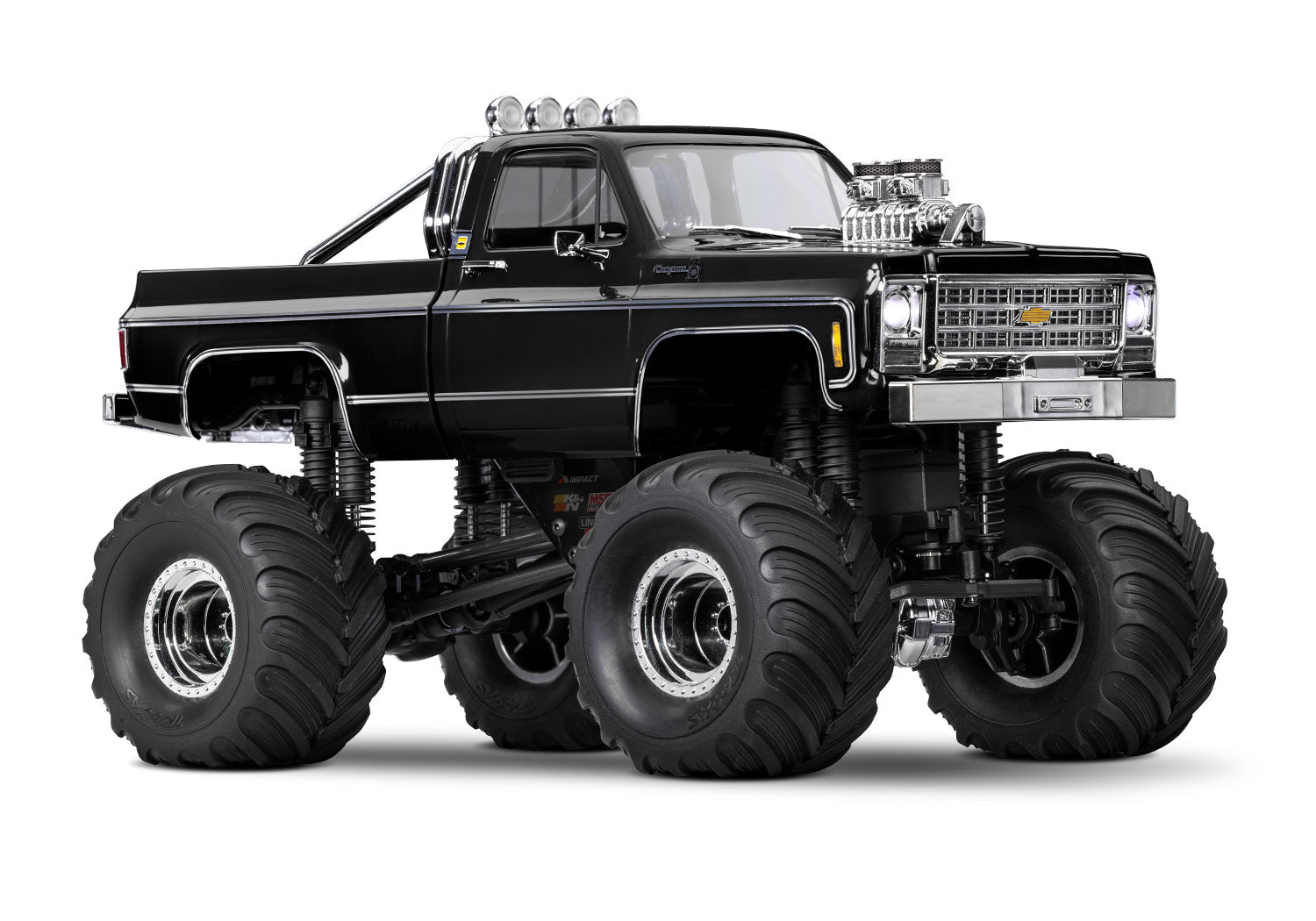

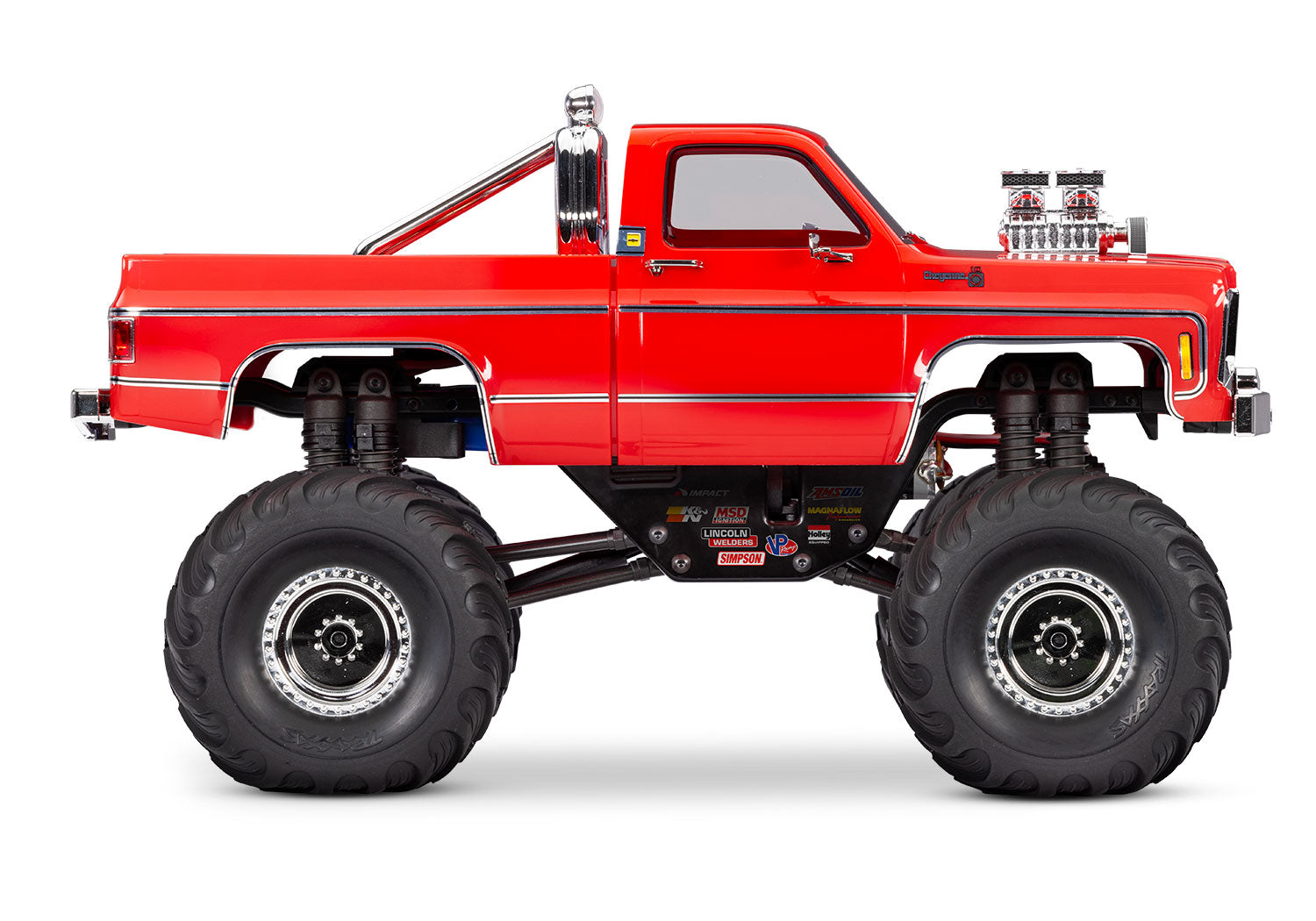

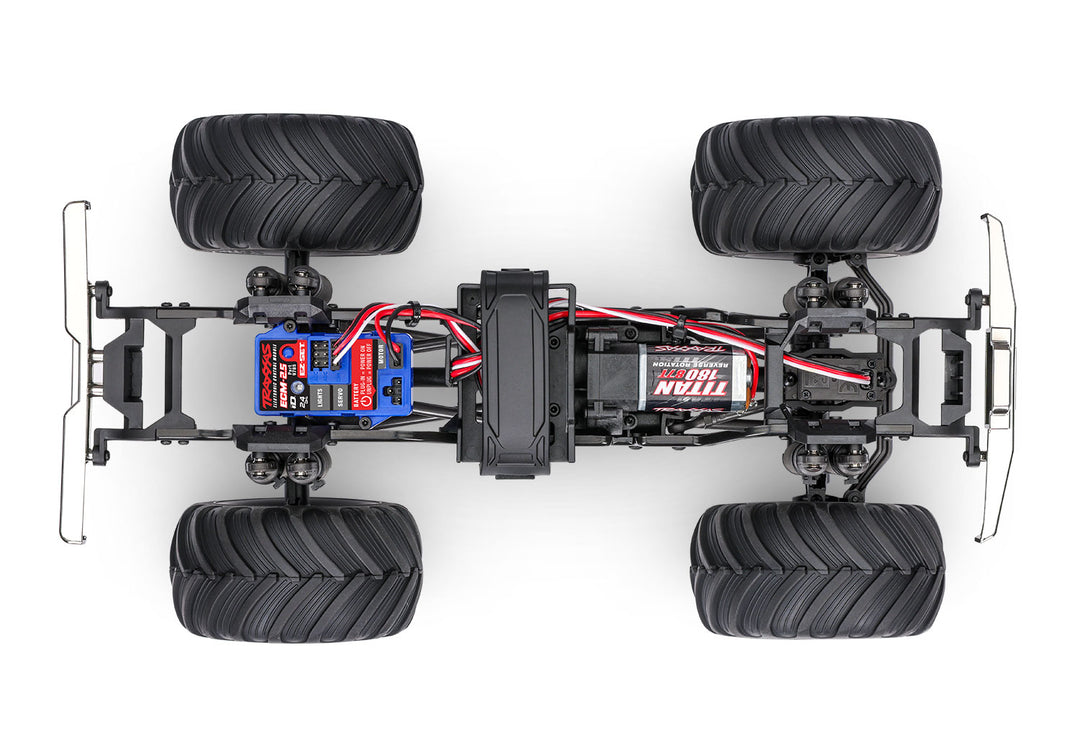

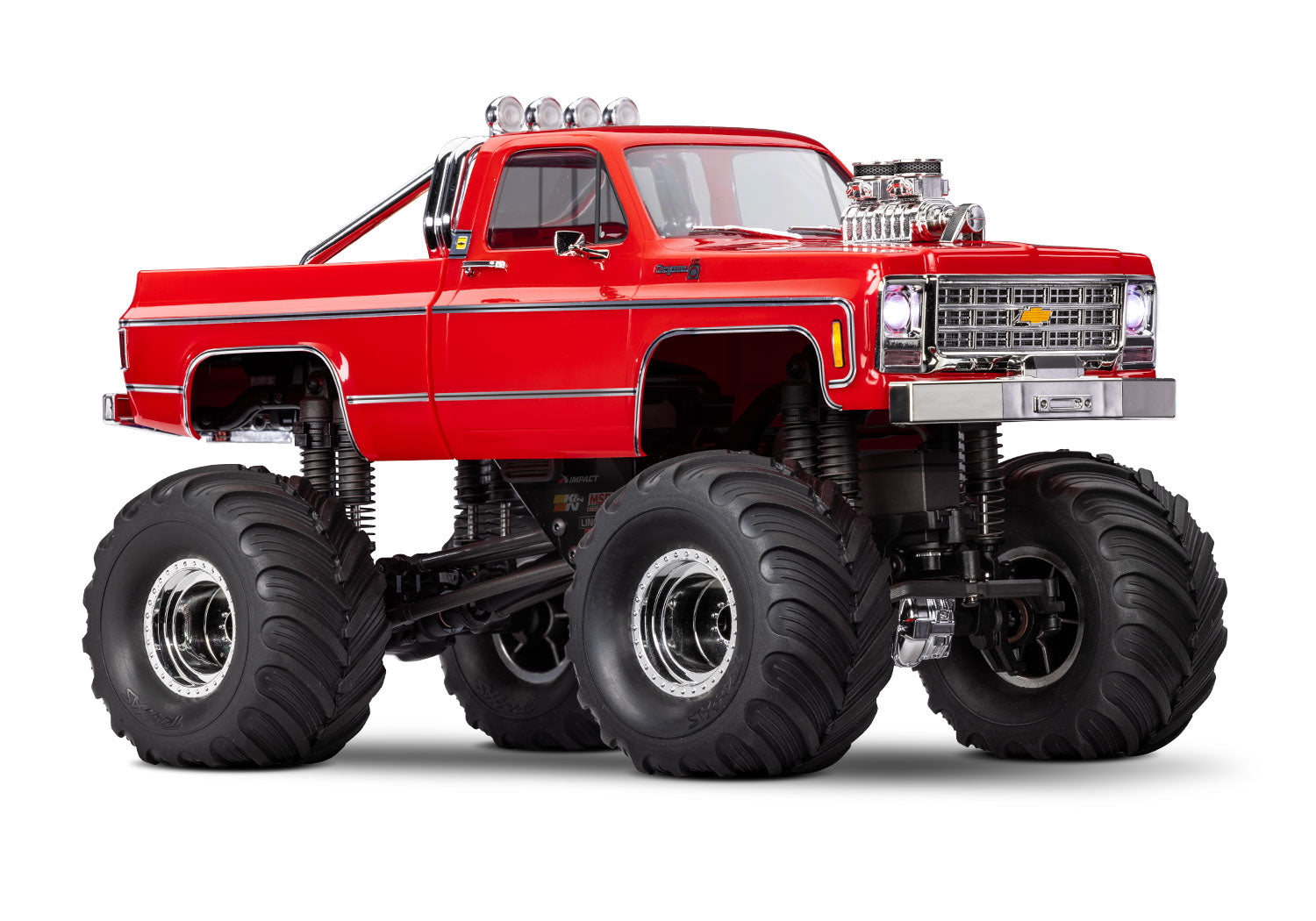

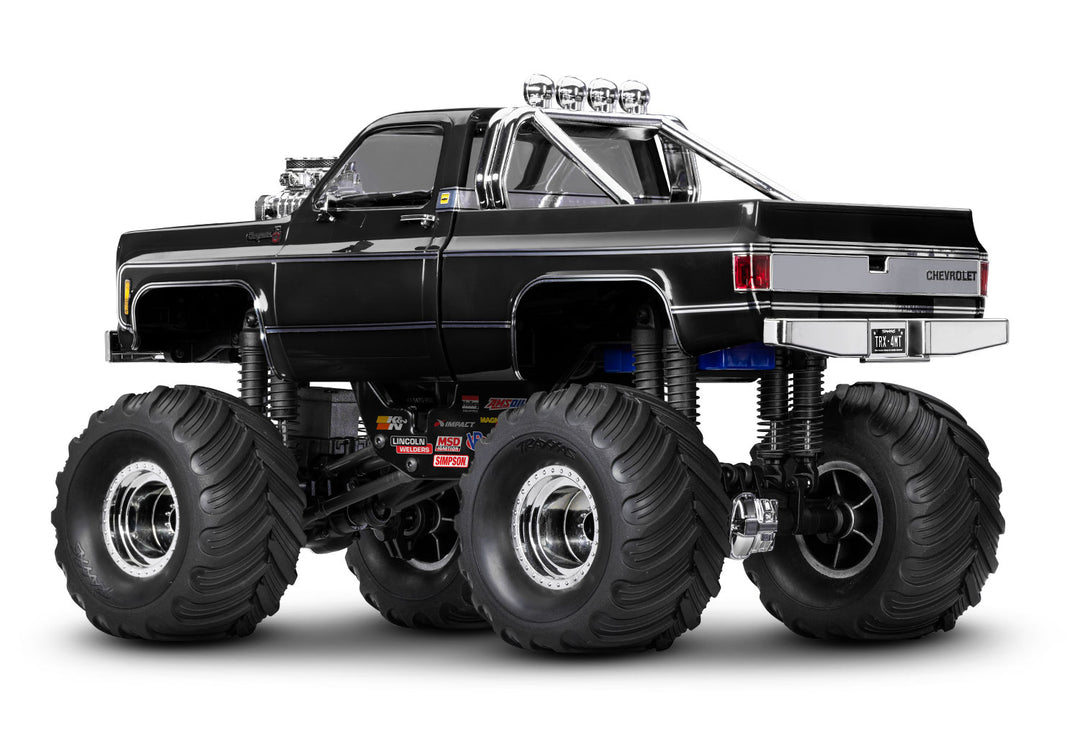

TRX-4MT Chevrolet K10 98064-1
Model Specs
| Model Name: | TRX-4MT Chevrolet K10 Monster Truck |
|---|---|
| Model Type: | Monster Truck |
| Model Skill Level: | 1 |
| Scale: | 1/18 |
| Weight: | 1.27 pounds (577 g) |
| Length: | 10.6 inches (276 mm) |
| Width: | 6.5 inches (166 mm) |
| Front Track: | 6.5 inches (166 mm) |
| Rear Track: | 6.5 inches (166 mm) |
| Height: | 6.7 inches (170 mm) |
| Wheelbase: | 6.45 inches (164 mm) |
| Center Ground Clearance: | 2.16 inches (55 mm) |
|---|---|
| Battery Type: | Lithium polymer (LiPo) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single speed direct drive |
| Differential Type: | Locked spool |
| Gear Ratio (Internal): | 11.38 |
| Gear Pitch: | 64 pitch |
| Servo(s): | 2065R |
| Radio System: | TQ 2.4 GHz 2-channel transmitter |
| Battery Compartment Specs: | 51 mm X 31 mm |
Motor Specs
| Motor Name: | Titan 180 |
|---|---|
| Motor Type: | 87-turn brushed motor |
| Motor Weight: | 1.16 ounces (33 g) |
| Motor Length: | 1.66 inches (42 mm) |
| Motor Diameter: | .81 inches (21 mm) |
ESC Specs
| ESC Name: | ECM 2.5™ |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm) |
| ESC Weight: | .92 ounces ( 26 g) |
