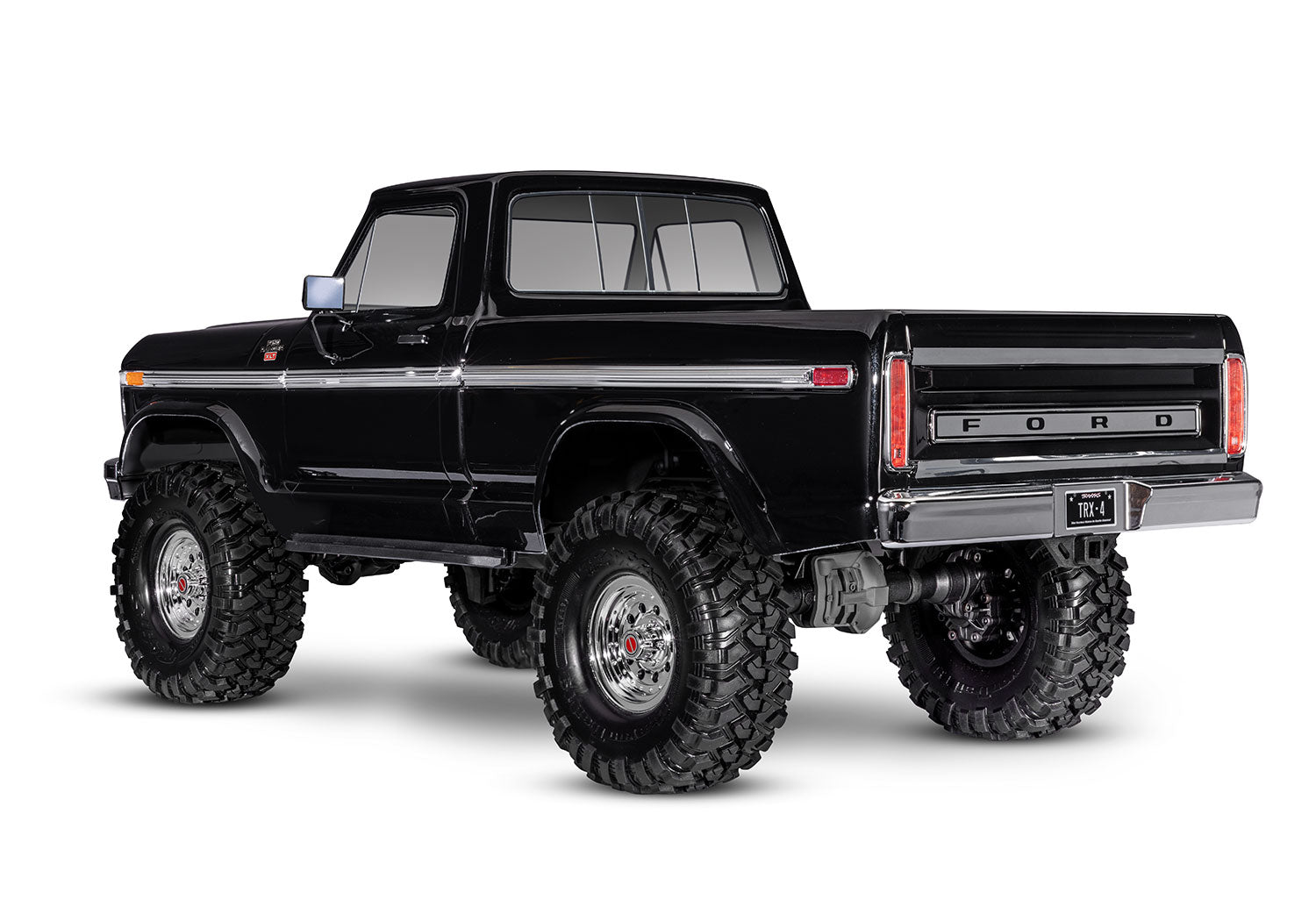

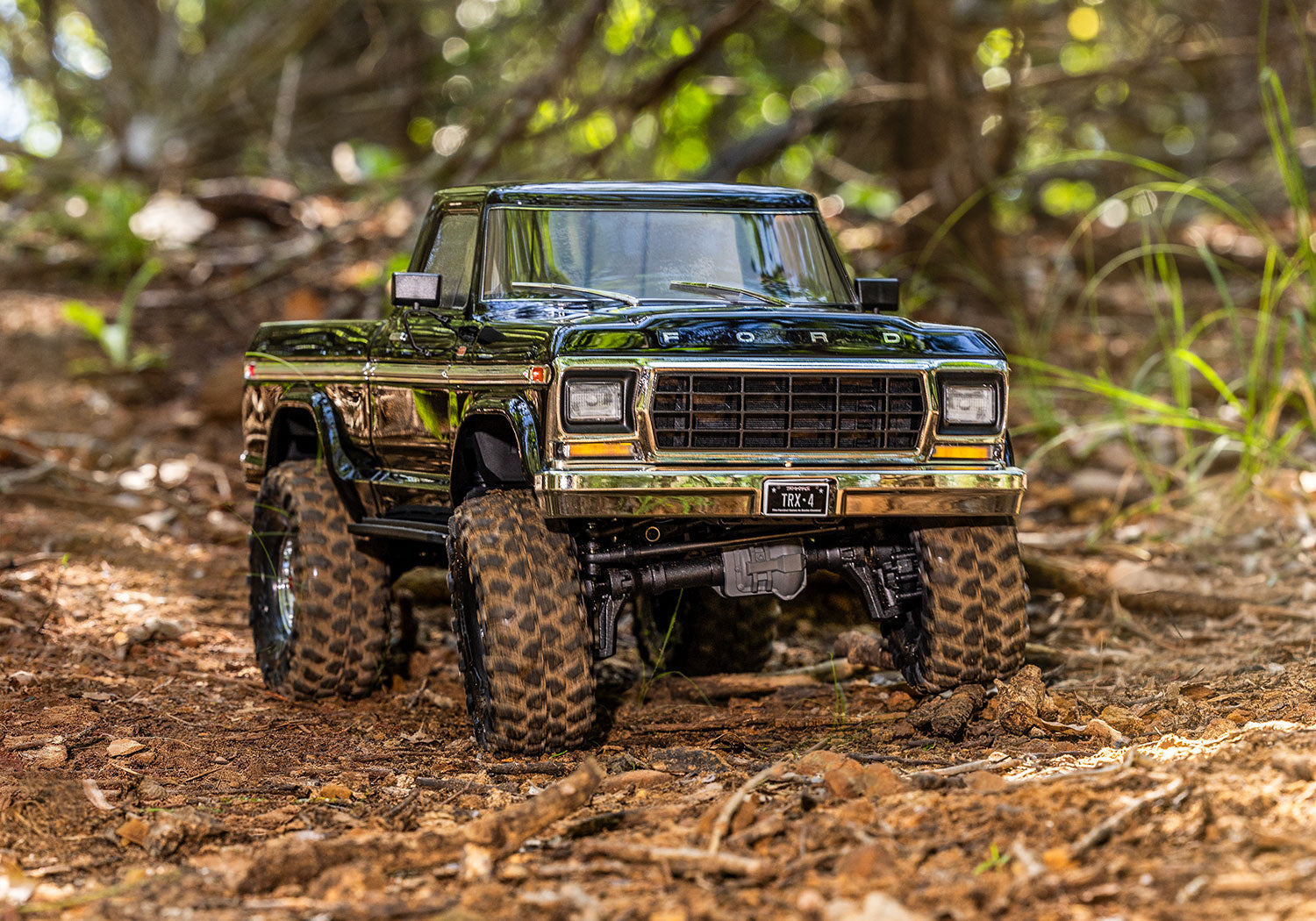

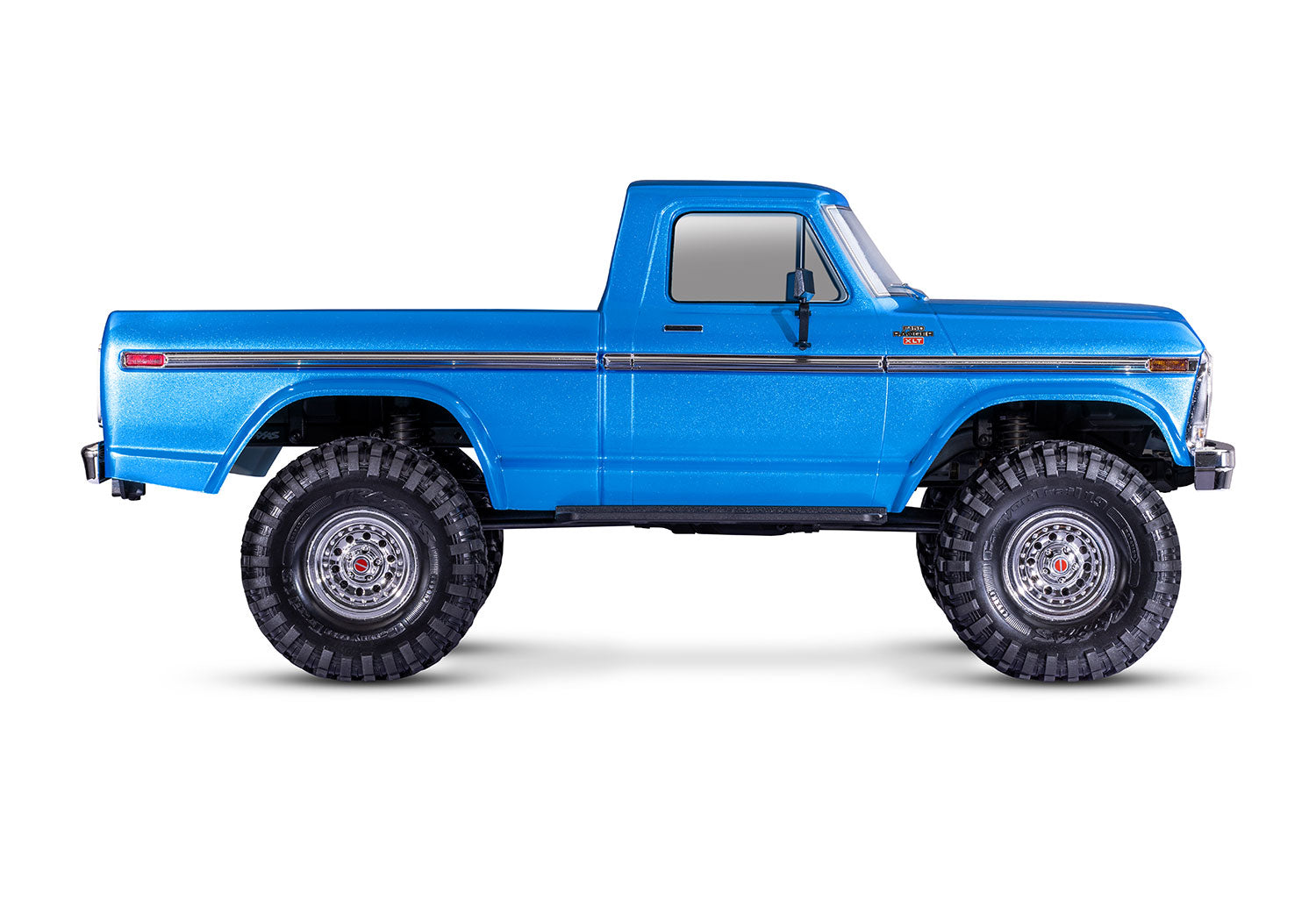

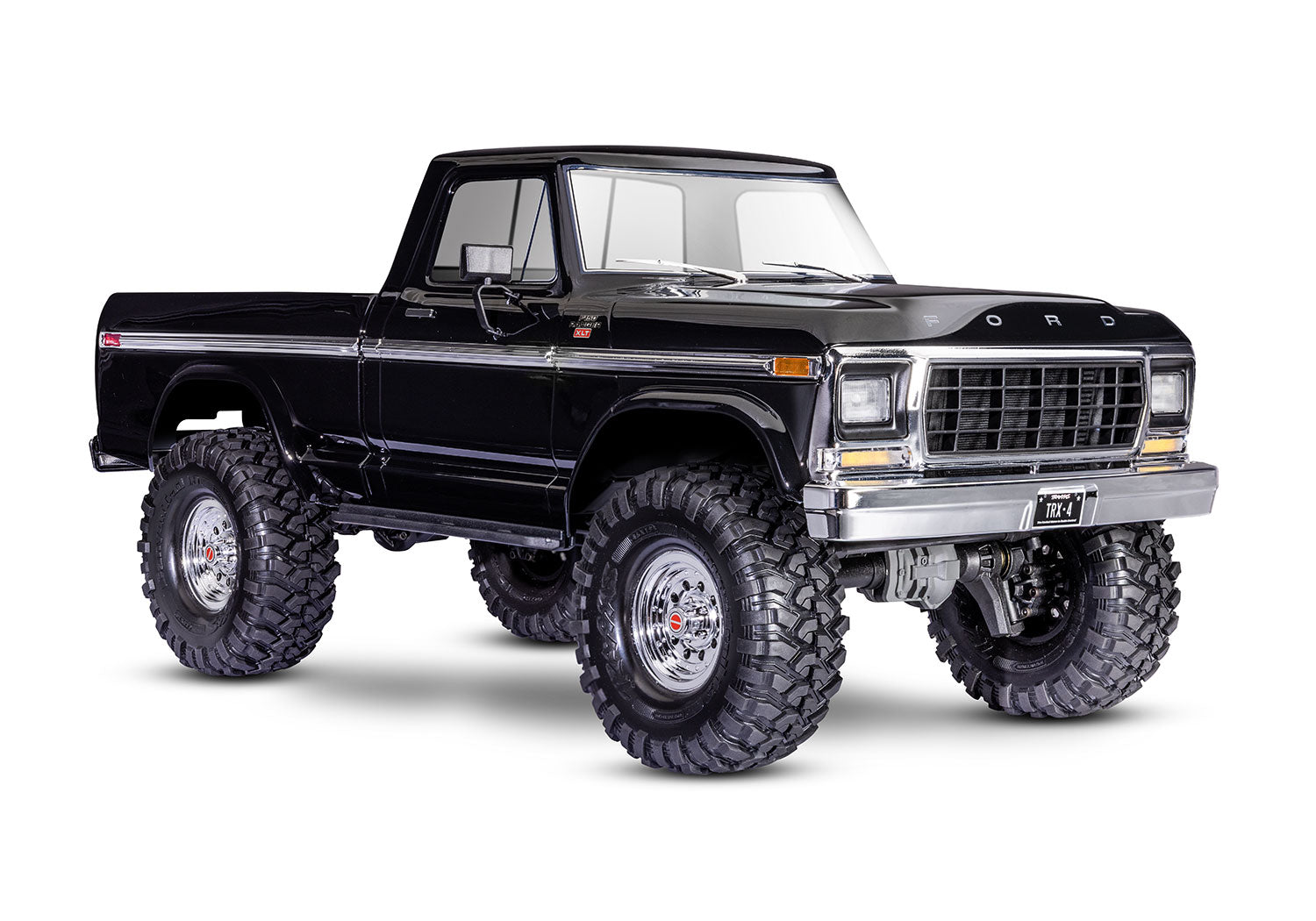

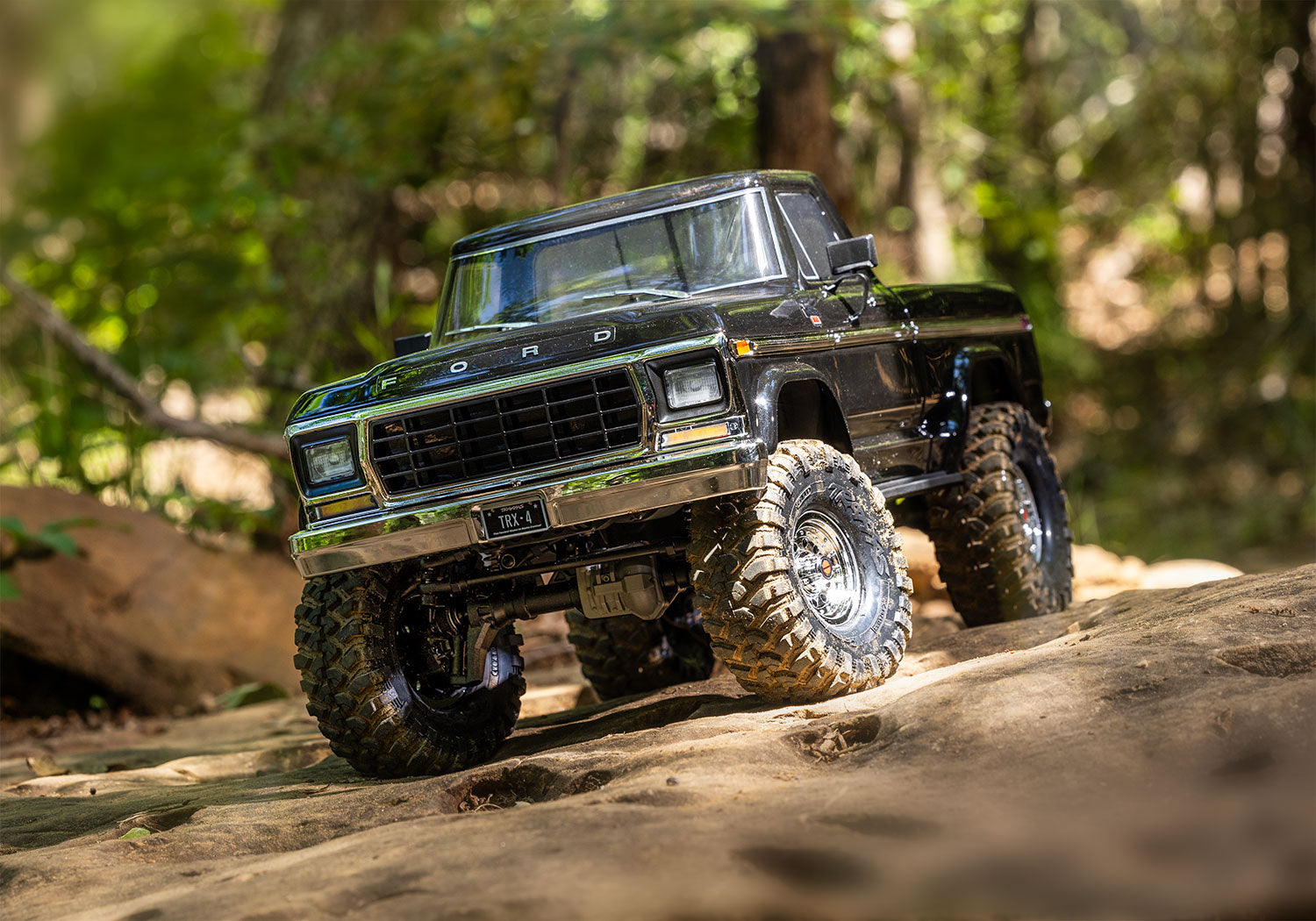

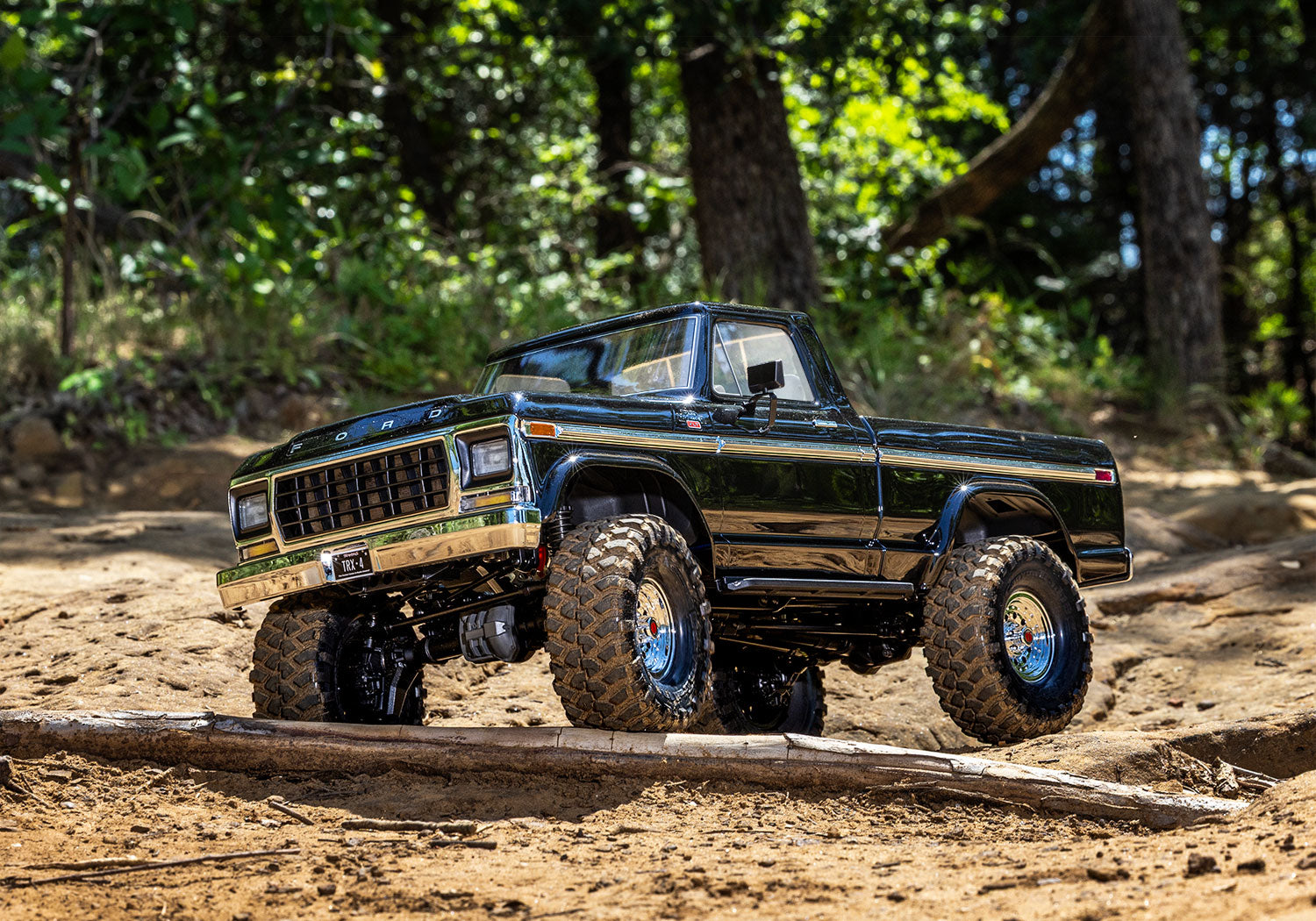

TRX-4 Ford F-150 92144-4

Color

Price

$449⁹⁵

$700⁰⁰ $449⁹⁵

Save $250.05

Secure payments

Low stock - 1 item left
Backordered, shipping soon

MPN: 92144-4-BLK UPC: 020334060815

TRX-4 Ford F-150 92144-4

MODEL SPECS

Name:	TRX-4 Ford F-150
Type:	Trail Truck / Crawler
Skill Level:	1
Chassis:	Extended steel ladder frame
Scale:	1/10
Weight:	5.79 lb (2.63 kg)
Length:	22.30 inches (566 mm)
Width:	9.78 inches (249 mm)
Height:	9.47 inches (241 mm)
Track:	9.78 inches (249 mm)

Wheelbase:	13.23 inches (336 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Driveline:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Spool (no differentials)
Gear Pitch:	32 pitch
Steering Servo:	2075X metal gear, digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel transmitter
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

FEATURES

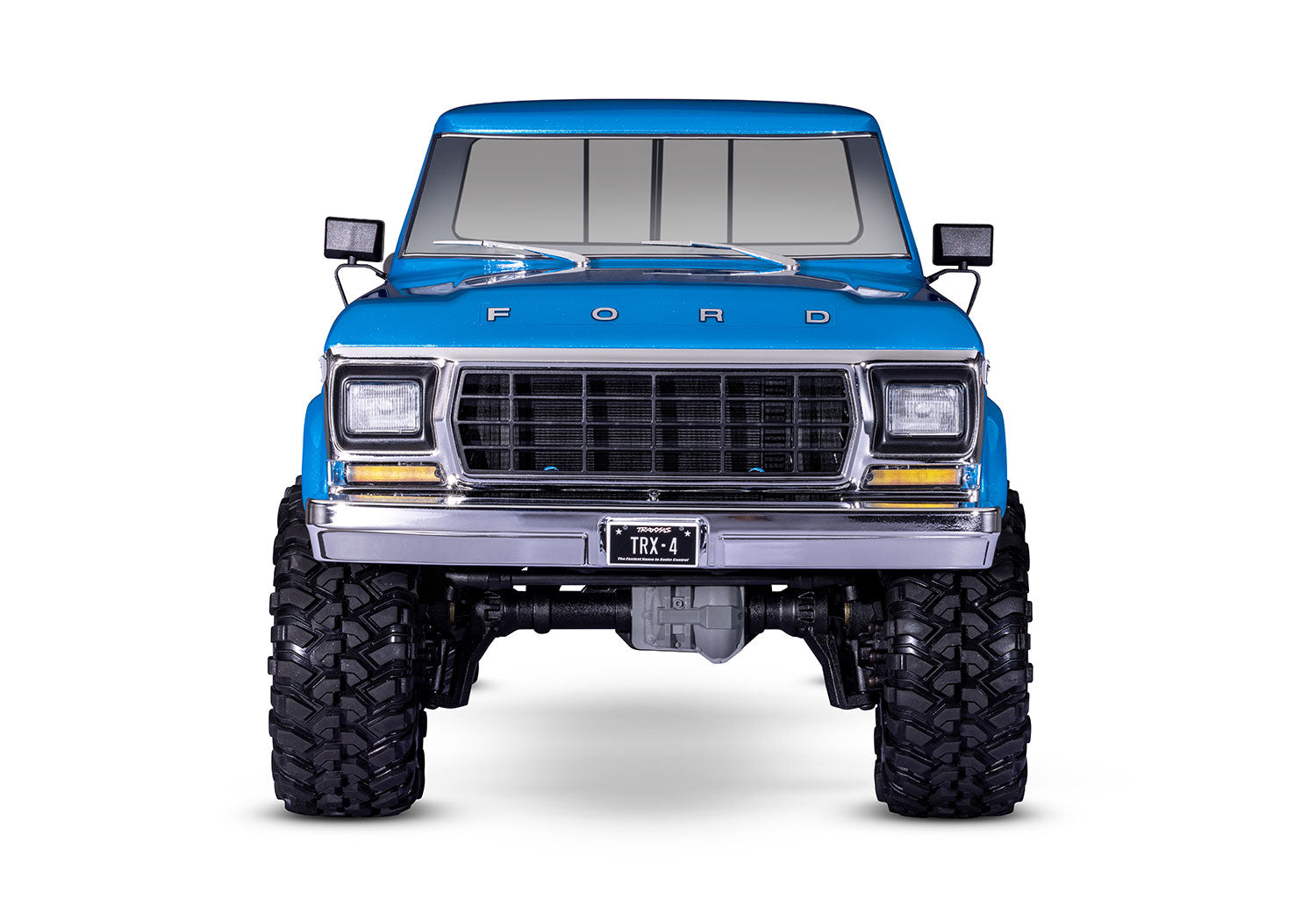

Officially Licensed 1979 Ford^® F-150^® Ranger XLT Body
- Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
- LED-ready headlights and tail lights
- Authentic decals
- Full Nylon composite wheel wells and floor pans
Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
  - Body details mount directly to internal frame
Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control

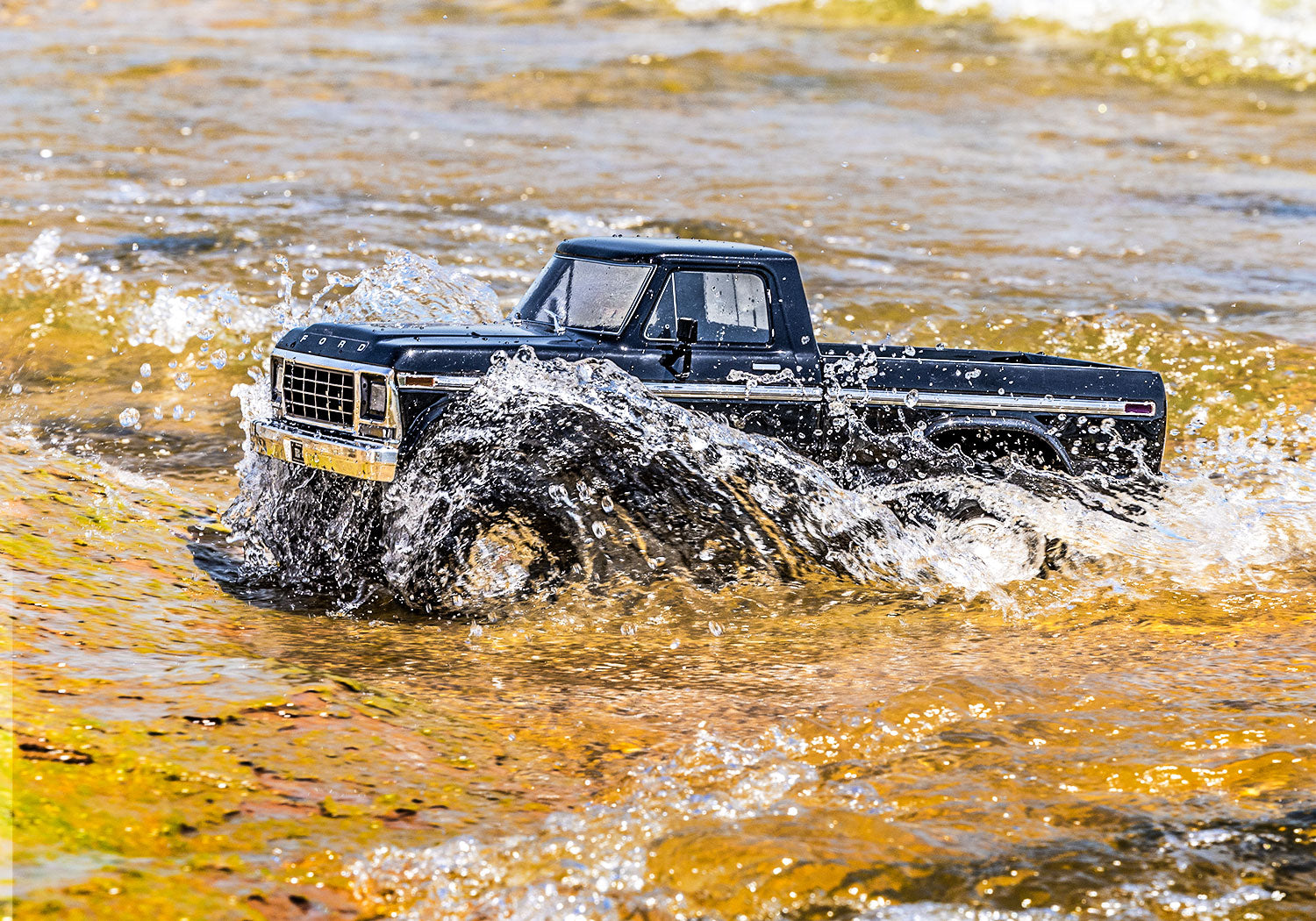

- Fully waterproof design
- Five drive profiles
  - Sport Mode — forward / brake / reverse
  - Race Mode — forward / brake / no reverse
  - Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  - Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set^® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
Titan^® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh

TQ™ 2.4 GHz 2-Channel Radio
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented o-ring sealed watertight receiver box keeps the receiver dry
Extended Wheelbase Chassis
- Long 336 mm wheelbase for improved stability
- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear axles
- Steel gear transfer case

Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual x-ring shaft seals
Wheels and Tires
- 1.9″ chrome mag wheels wheels with hub inserts
- Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating
Requires Battery and Charger (Sold Separately)

MODEL 92144-4: TRX-4^® Scale and Trail^® crawler with 1979 Ford^® F-150^® truck body: 1/10 Scale 4WD electric truck. Ready-To-Explore^®, with TQ™ 2.4 GHz radio system, XL-5™ HV ESC (fwd/rev), and Titan^® 550 motor.

What’s In The Box:

TRX-4 trail truck
XL-5 HV waterproof electronic speed control
Titan 21T reverse rotation motor
TQ 2.4 GHz radio system
High quality maintenance tools

What You’ll Need:

Batteries
TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
Charger
The Traxxas EZ-Peak^® charger 2970 is recommended for easy and fast charging performance.
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
