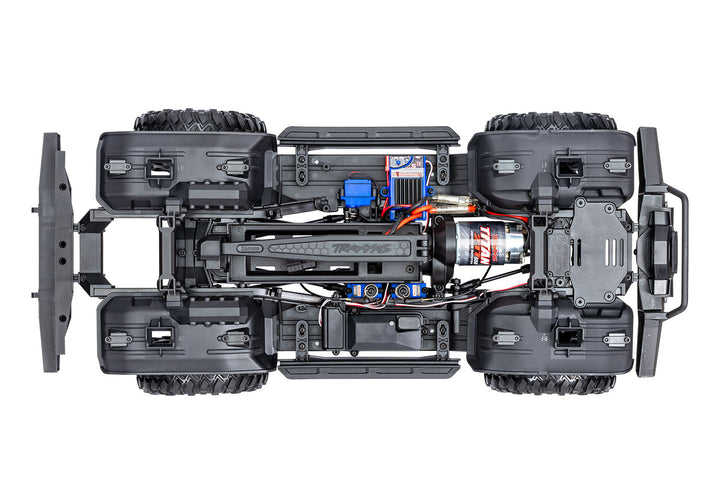

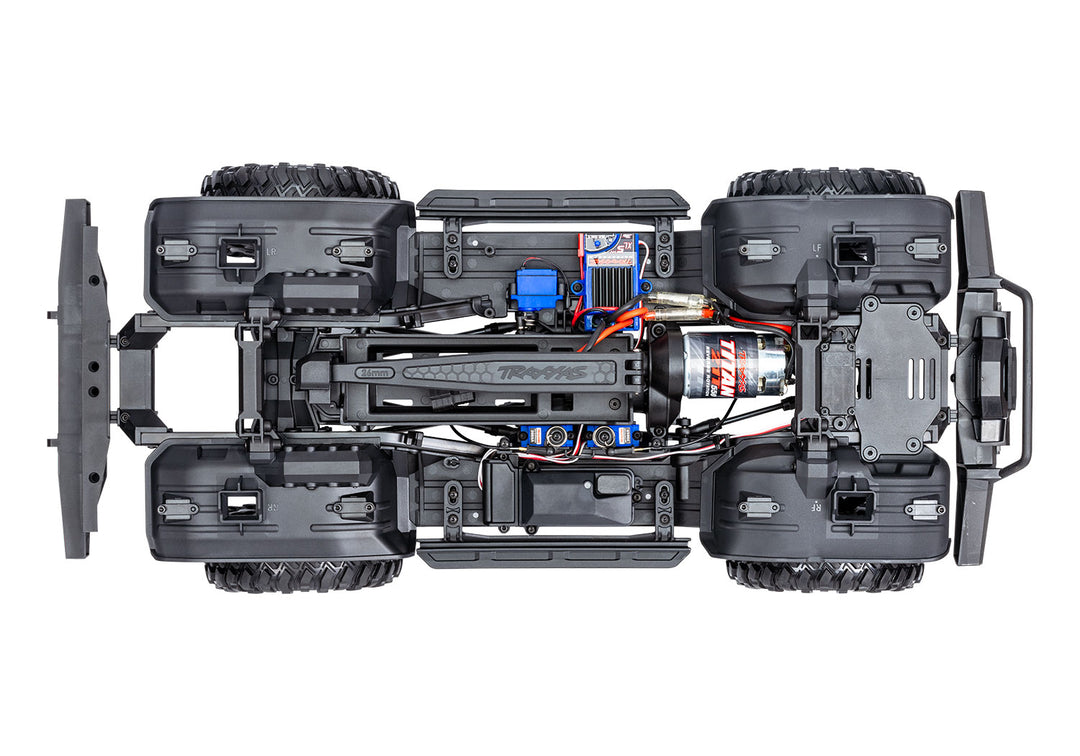

TRX-4 Crawler Kit 82216-4-R6

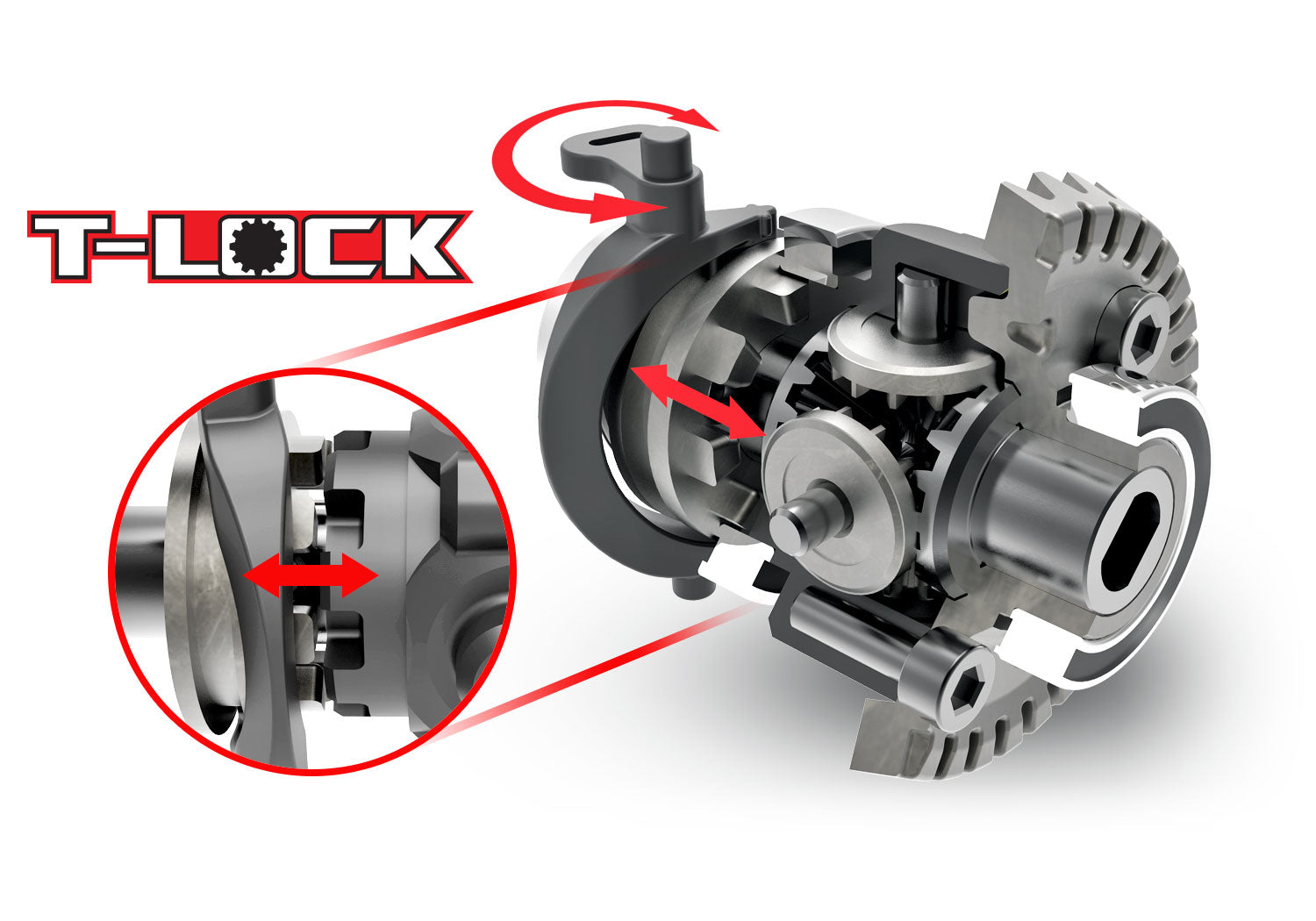

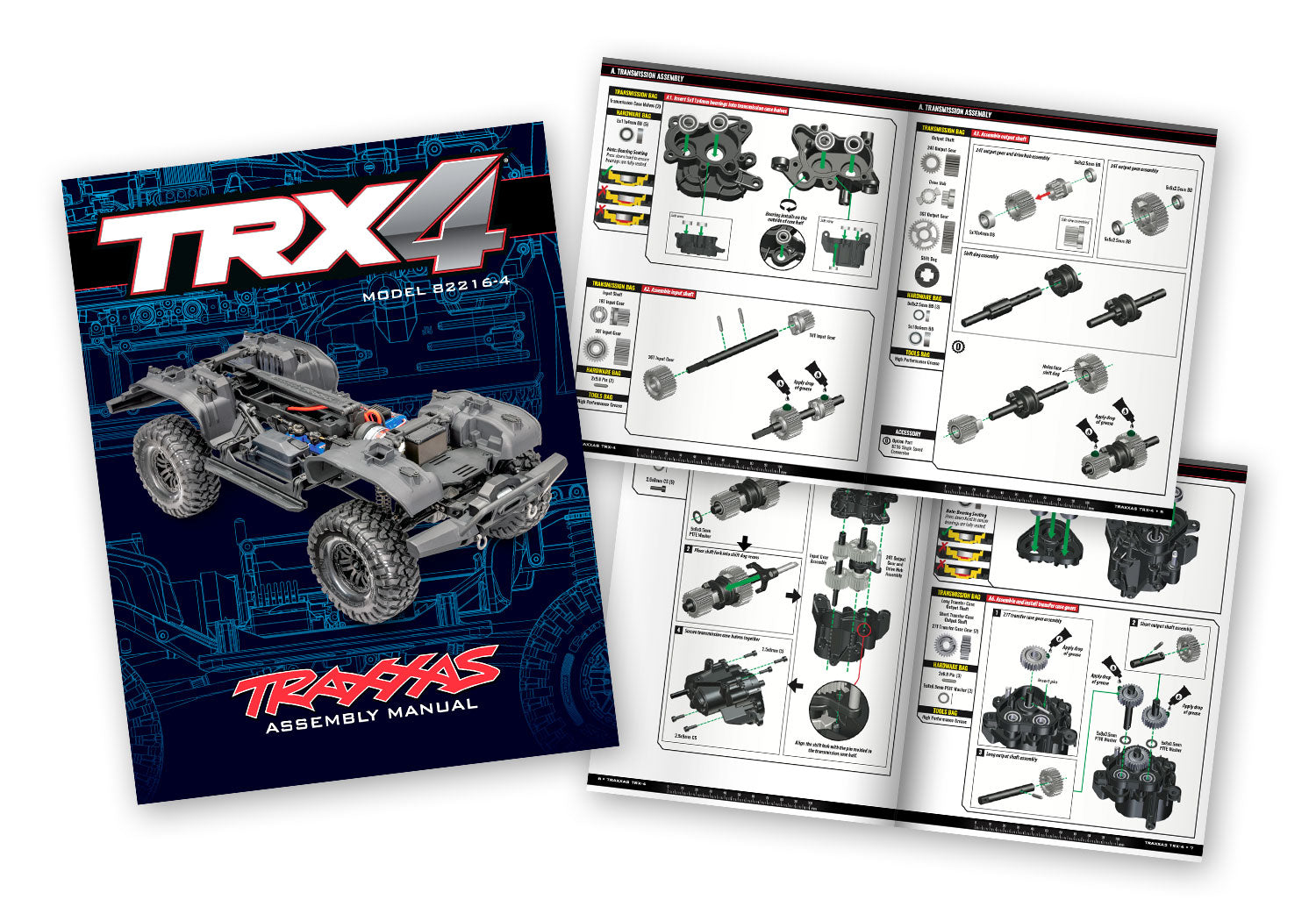

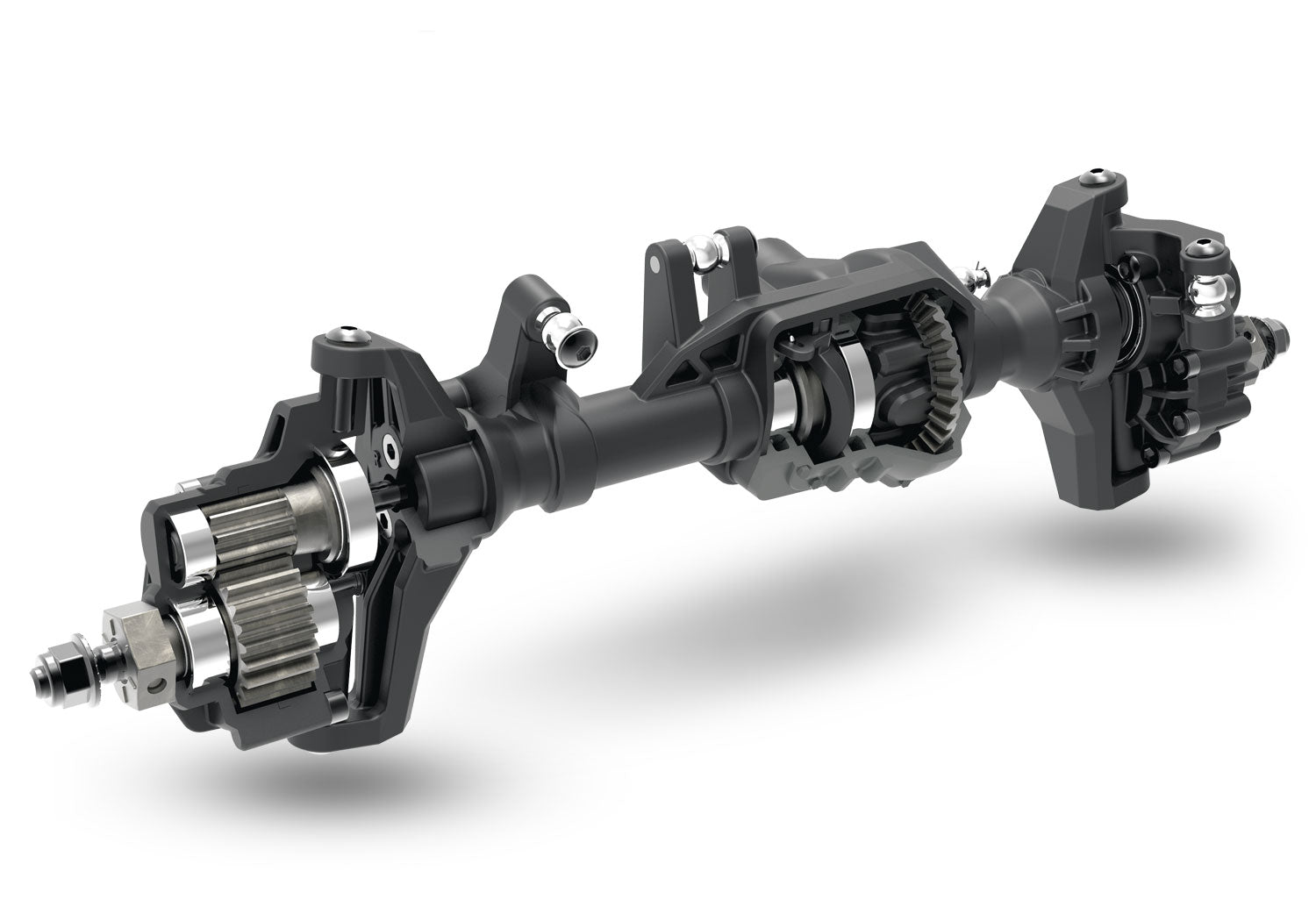

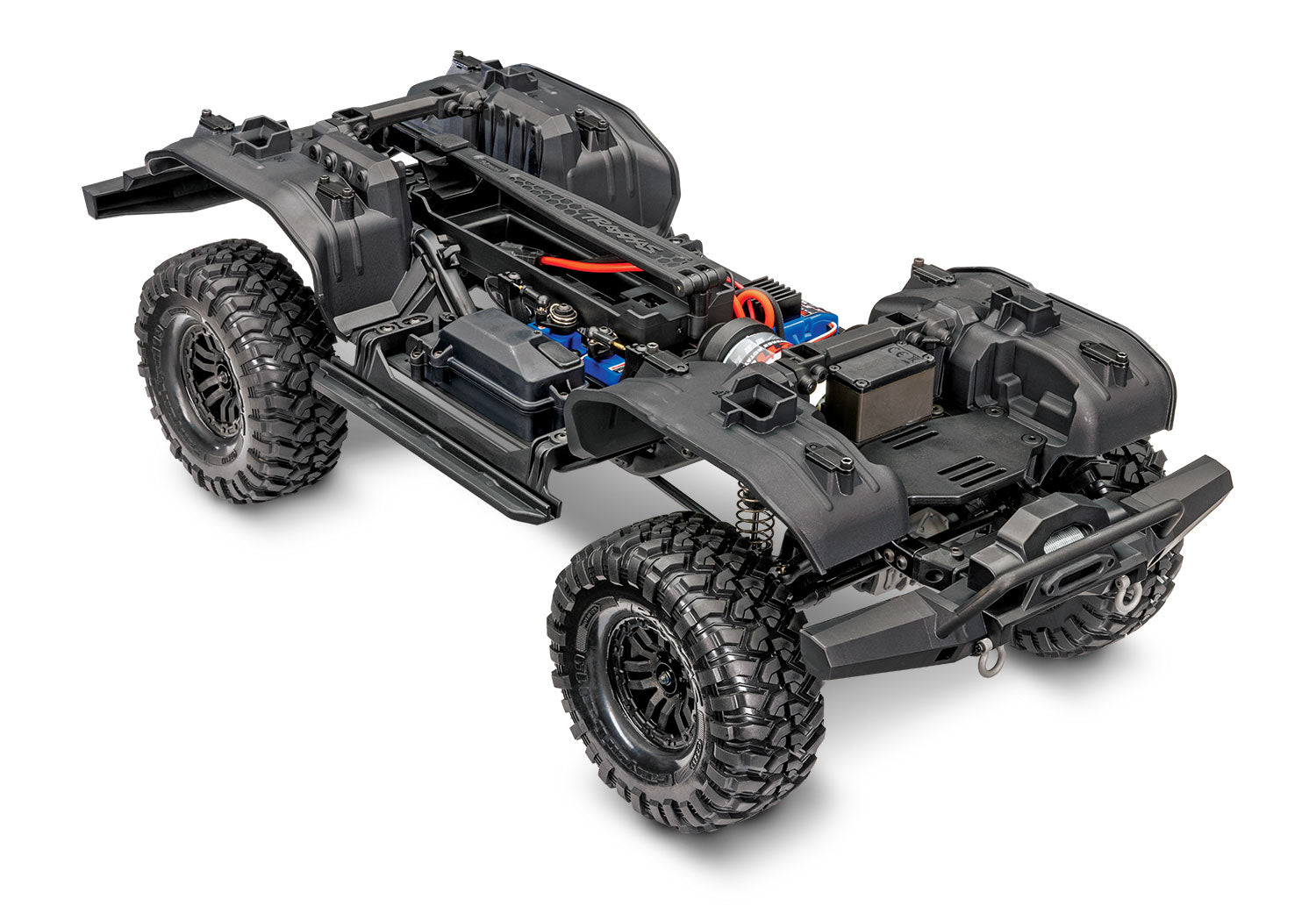

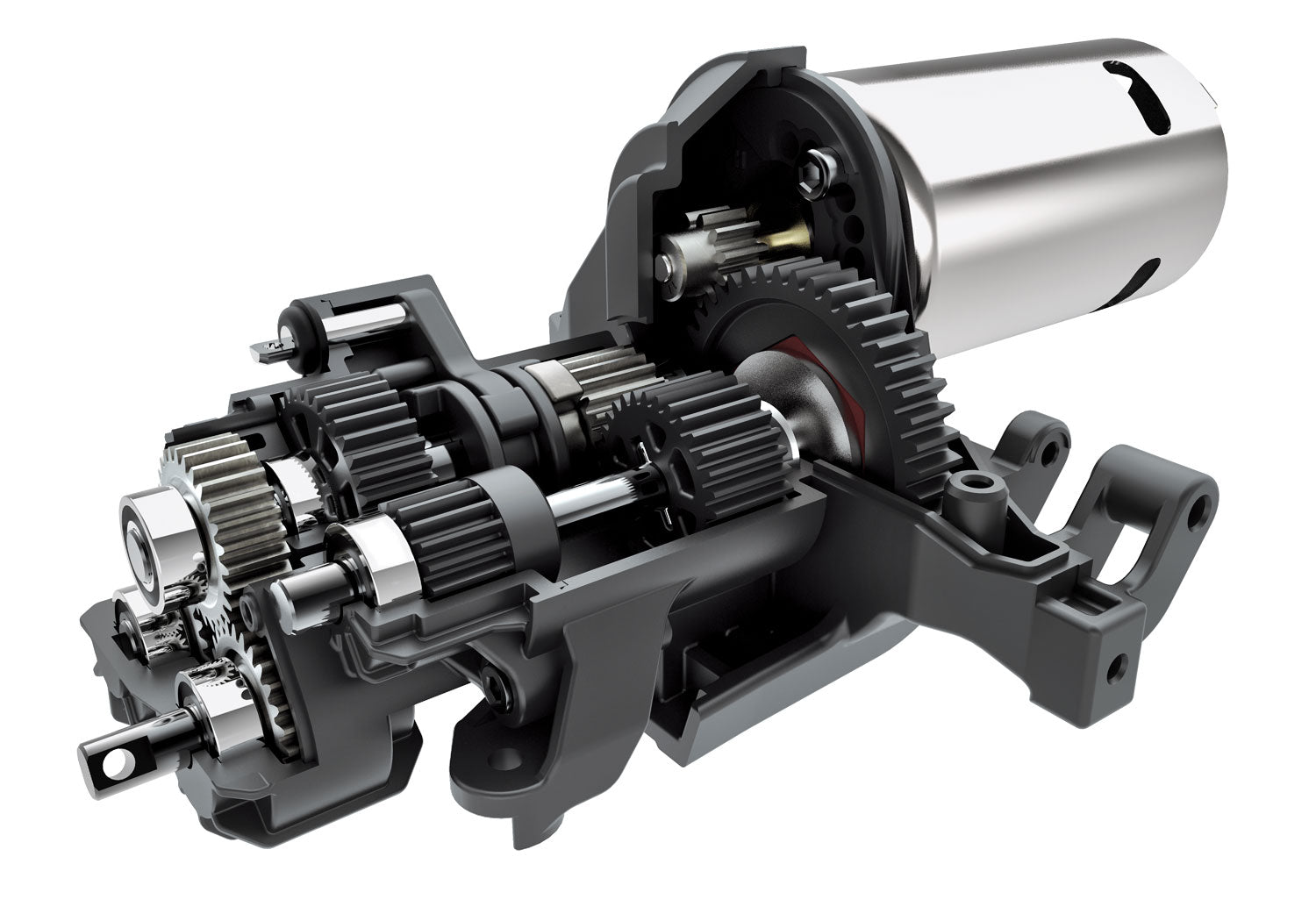

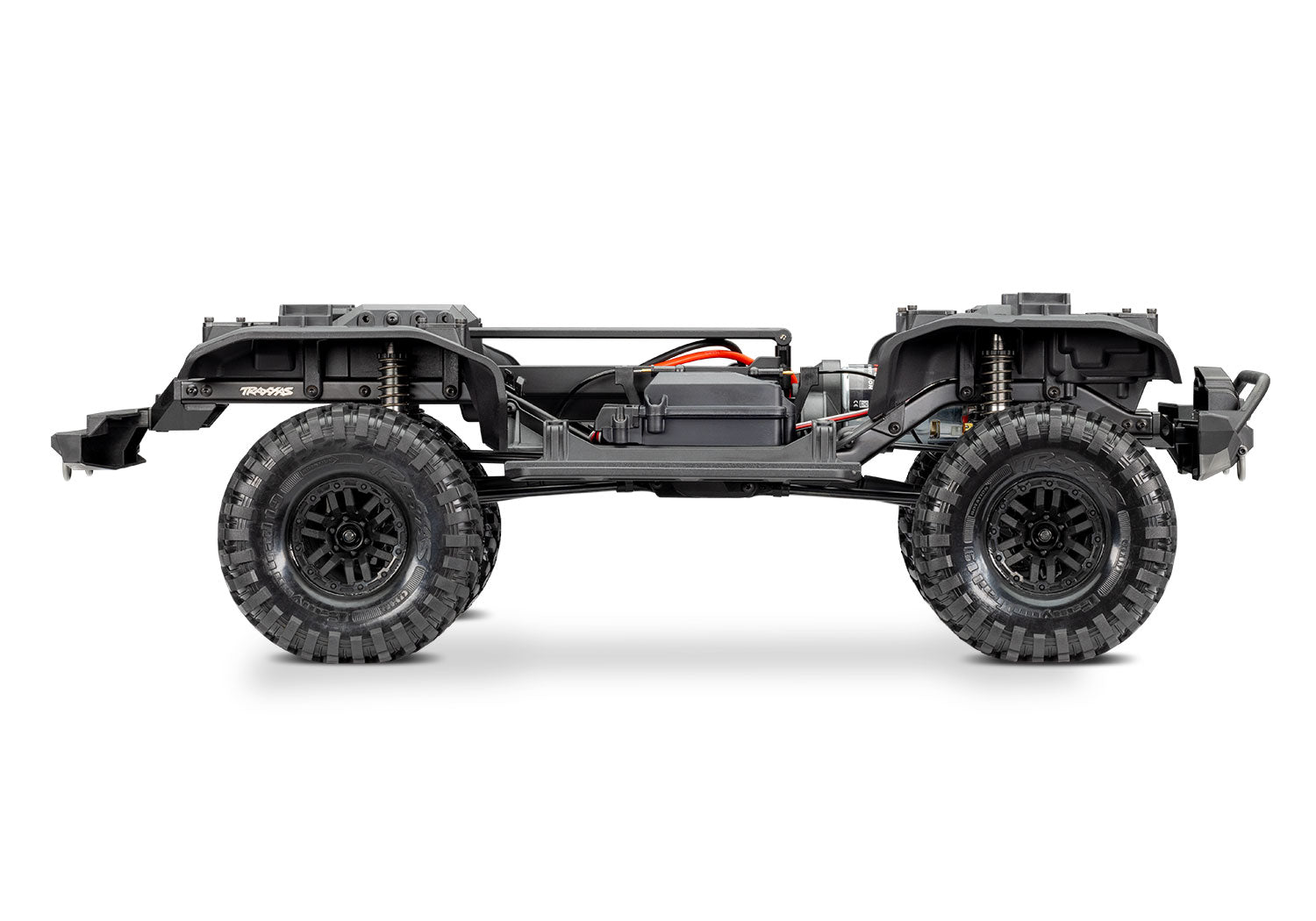

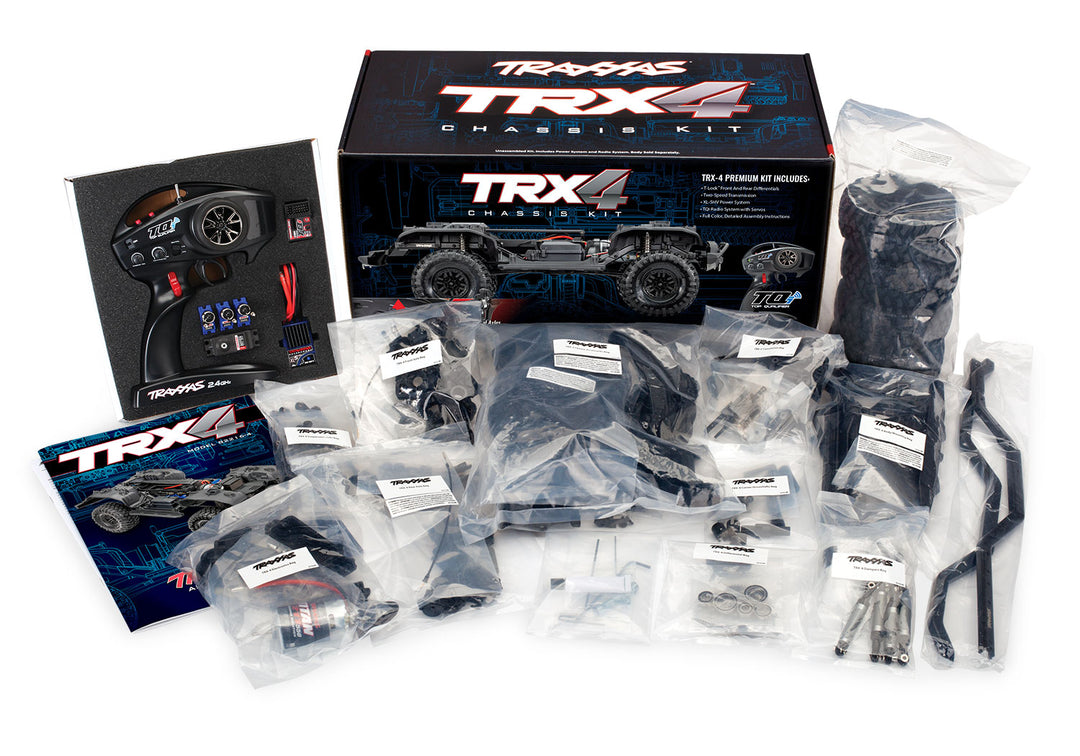

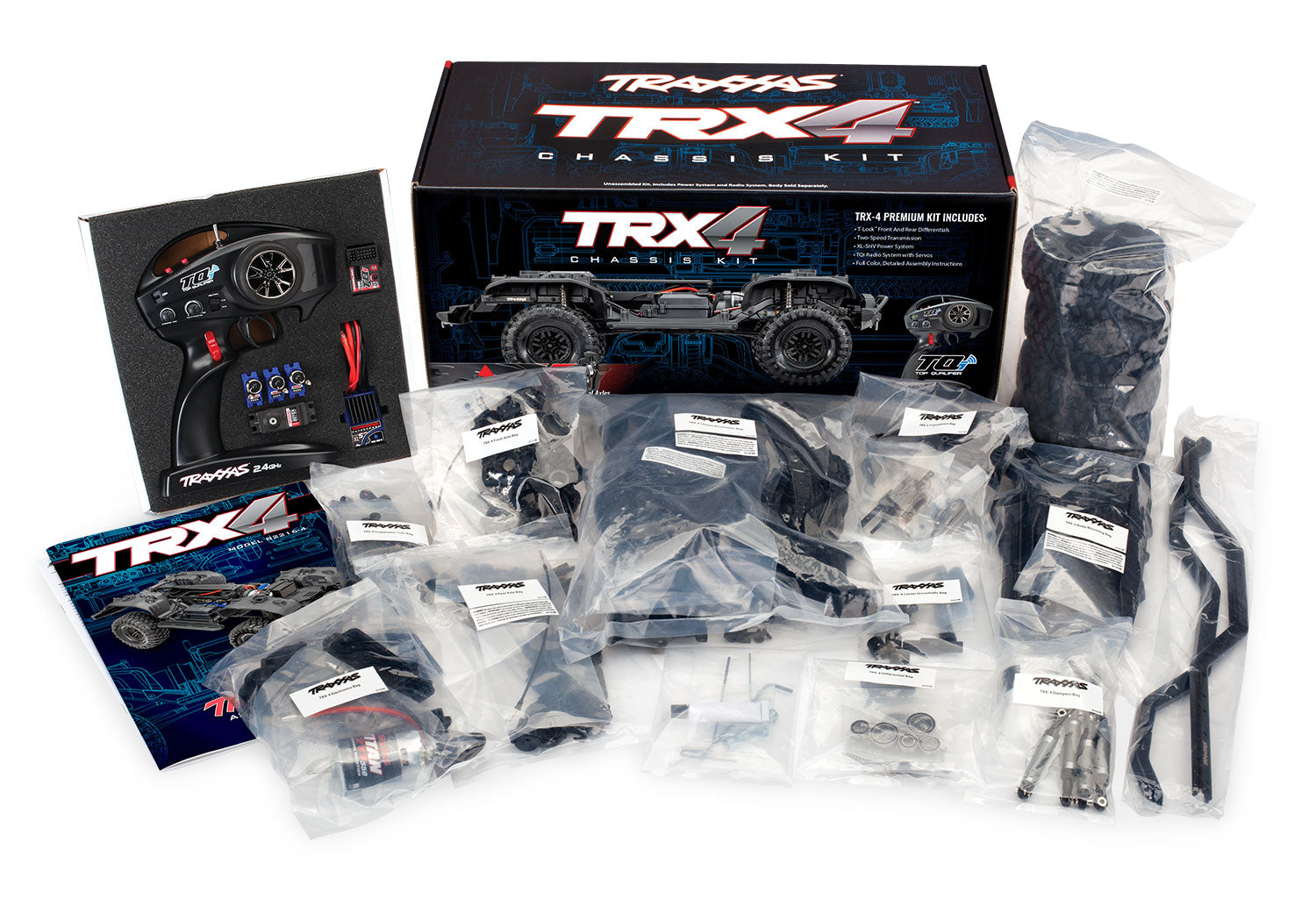

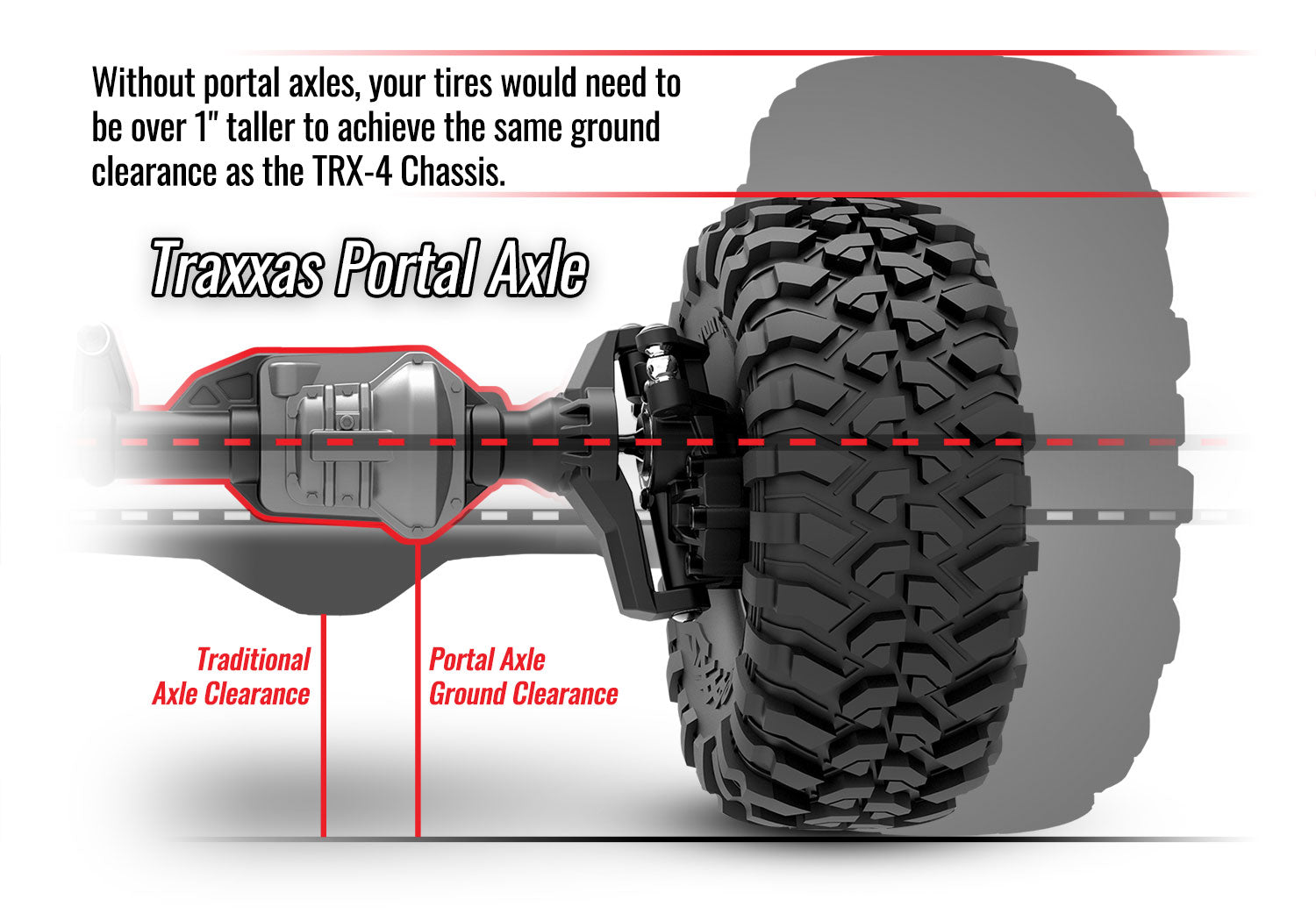

TRX-4® set the standard for off-road versatility with its radical design and rugged durability. The TRX-4 chassis kit combines the same innovative features as the RTR vehicle with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remotely locking differentials. All the parts are organized neatly in labeled bags with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.
| Model Name: | TRX-4® Unassembled Kit |
|---|---|
| Model Type: | Crawler |
| Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 102.72 ounces (2.91 kg) |
| Length: | 20.57 inches (523 mm) |
| Width: | 9.78 inches (249 mm) |
| Front Track: | 9.78 inches (249 mm) |
| Rear Track: | 9.78 inches (249 mm) |
| Height: | 10.47 inches (266 mm) |
| Wheelbase: | 12.28 inches (312 mm) |
| Ground Clearance: | 3.14 inches (80 mm) |

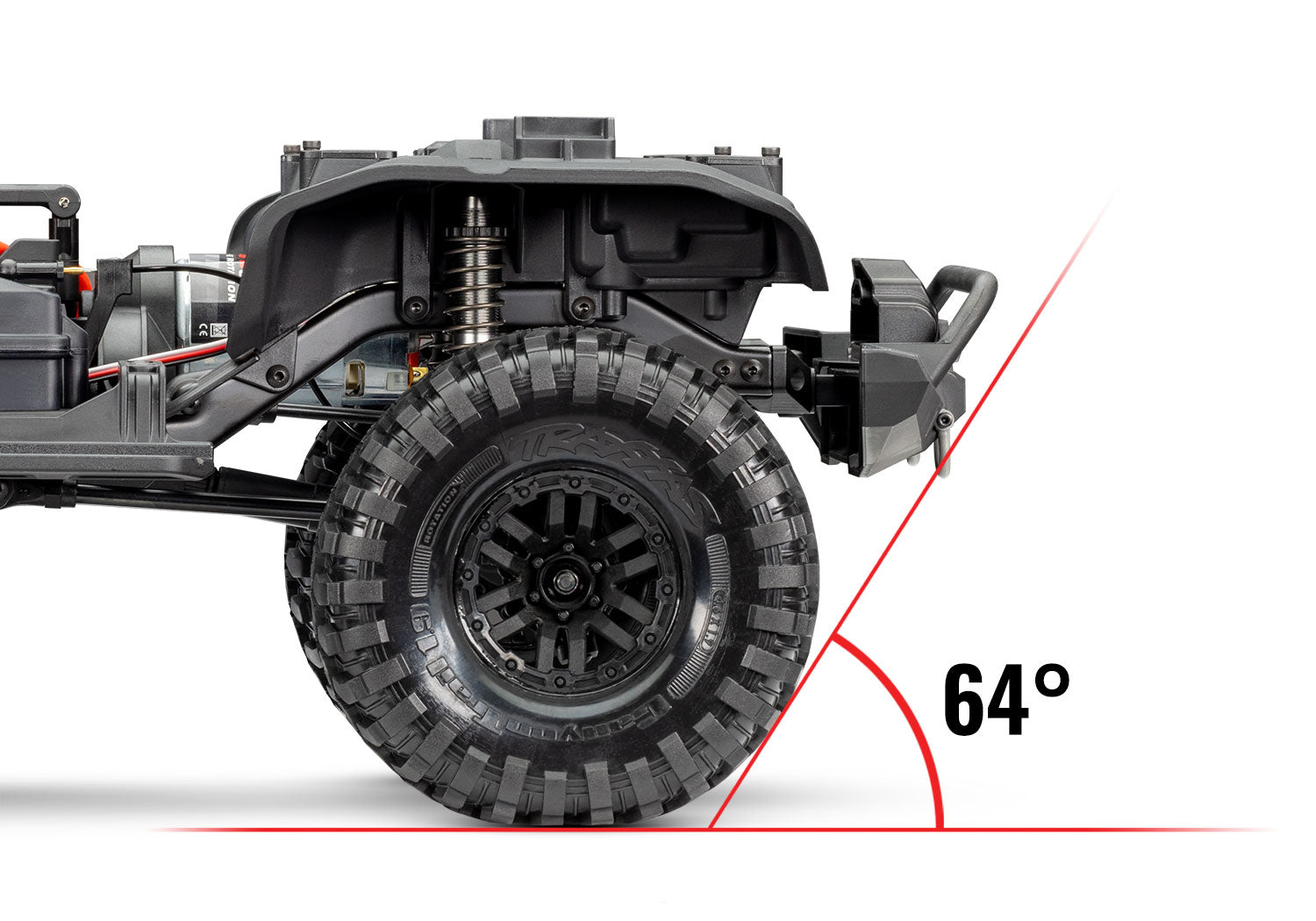

| Approach Angle: | 63.82° |
| Departure Angle: | 43.22° |
| Breakover Angle: | 59° |
| Motor Name: | Titan® 21T Reverse Rotation |
|---|---|
| Motor Type: | High-torque brushed motor |
| Motor Weight: | 8.47 ounces (240 g) |
| Motor Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Motor Diameter: | 1.53 inches (39 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Bullet |
| ESC Name: | XL-5™ HV |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| ESC Weight: | 2.60 ounces (74 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 14 gauge |
