Traxxas Bandit XL-5 with Battery 24254-8

Traxxas Bandit XL-5 with Battery 24254-8

Color Blue Red

Price

~~$229.95~~

Save $0

Secure payments

In stock, ready to ship
Backordered, shipping soon

MPN: 24254-8-BLUEX UPC: EAN:

Traxxas Bandit XL-5 with Battery 24254-8

MODEL SPECS

Name:	Bandit HD w/USB-C
Type:	Buggy
Speed:	35+ mph with 7-cell battery
Skill Level:	1
Scale:	1/10
Weight:	3 pounds (1.36 kg)
Length:	16.25 inches (413 mm)
Width:	9.84 inches (250 mm)
Front Track:	9.84 inches (250 mm)
Rear Track:	9.84 inches (250 mm)
Height:	7 inches (178 mm)

Wheelbase:	11.25 inches (286 mm)
Driveline:	2WD
Transmission:	Magnum 272™
Differential Type:	Planetary steel gear
Gear Ratio (Internal):	2.72 (final drive: 12.34)
Gear Pitch:	48 pitch
Steering Servo:	2056 high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	164 mm X 46 mm X 26 mm

MOTOR SPECS

Name:	Titan^® 12T 550
Type:	High-speed brushed motor
Weight:	8.47 ounces (240 g)
Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter:	1.41 inches (36 mm)
Shaft Size:	3 mm
Connector Type:	B

ESC SPECS

Name:	Waterproof XL-5 ESC with low-voltage detection
Type:	Brushed
Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
Weight:	2.44 ounces (69 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
Power Wire:	14 gauge

ProGraphix^® Painted Body

Pre-painted body with applied decals
Aggressive, aerodynamic body with rear wing

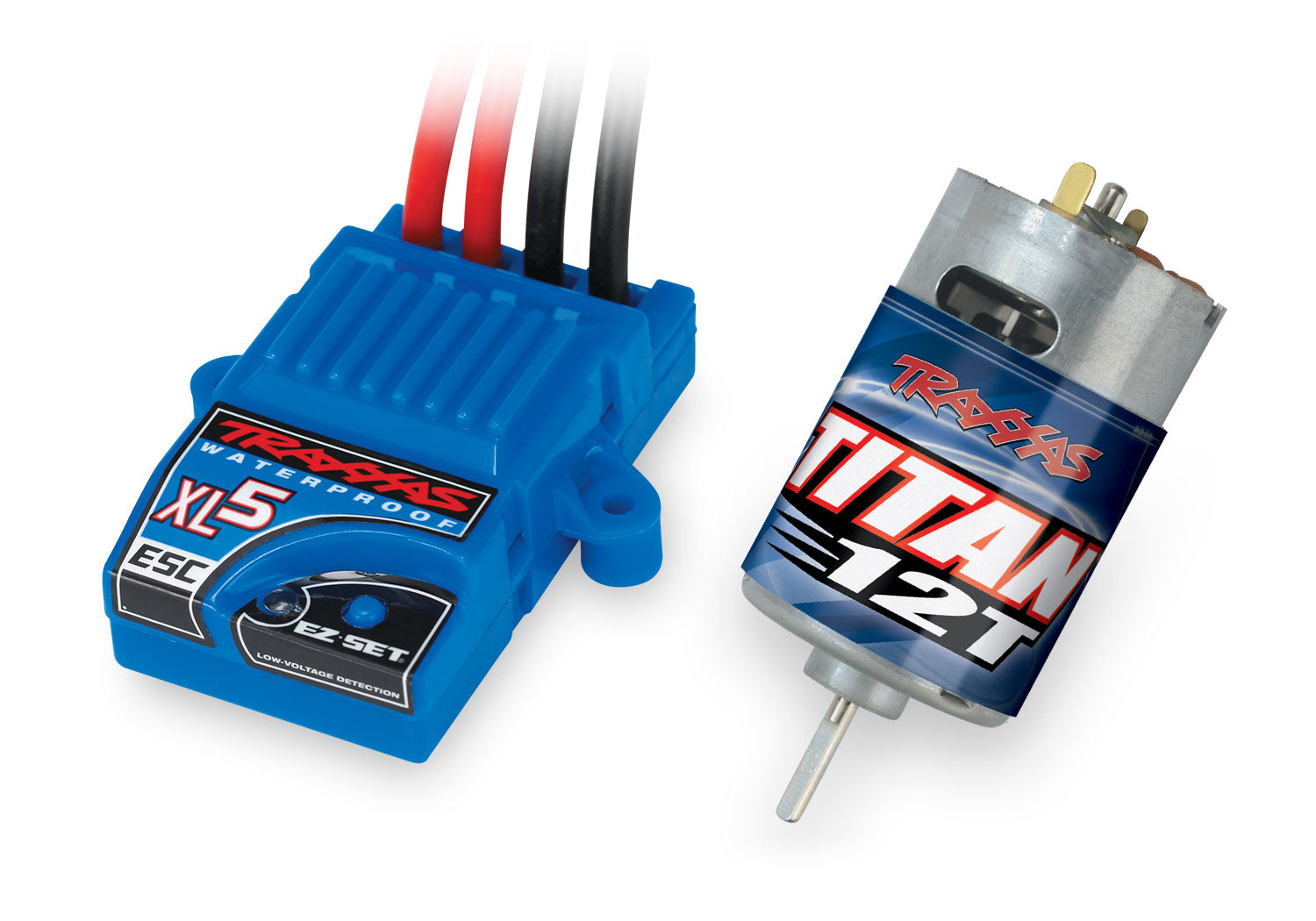

High-Performance Waterproof XL-5™ Electronic Speed Control

Innovative waterproof design
Three drive profiles

Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)

Traxxas EZ-Set^® ;one-button setup
LiPo and NiMH compatible with two-stage low-voltage detection

Titan^® 550 Motor

Powerful Titan 12T 550 modified motor with internal cooling fan
Oversized armature for big torque and increased power handling
Virtually maintenance-free operation

TQ™ 2.4 GHz 2-Channel Radio System

Ergonomic transmitter with internal antenna
Traxxas 6519 3-channel micro receiver with fail-safe security
Sealed watertight receiver box keeps the receiver dry

Extreme Heavy Duty Parts Installed

Strengthened C-hubs, axle carriers, and steering blocks
HD suspension arms

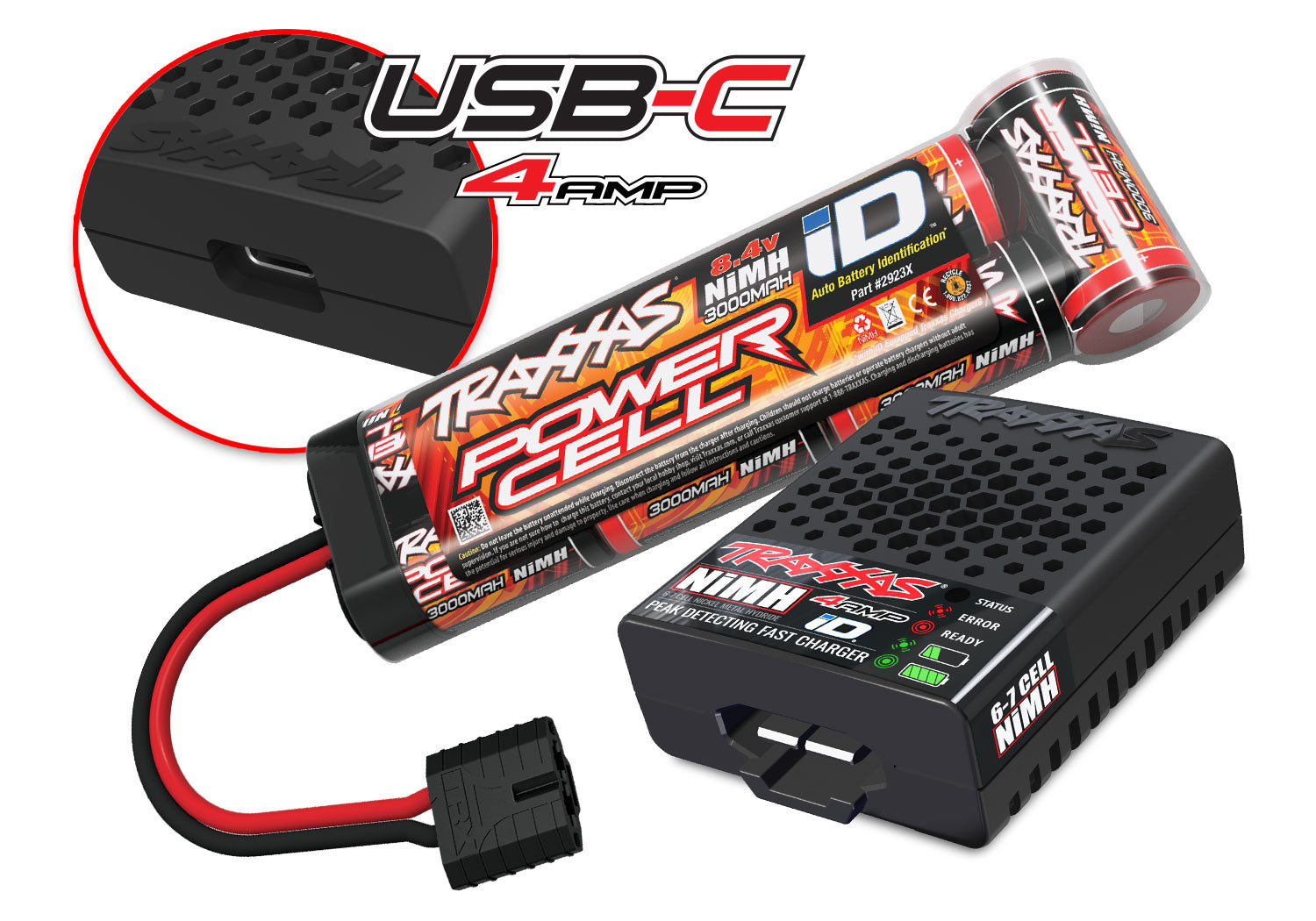

Includes Battery and Charger

4-amp USB-C fast charger
3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD^®

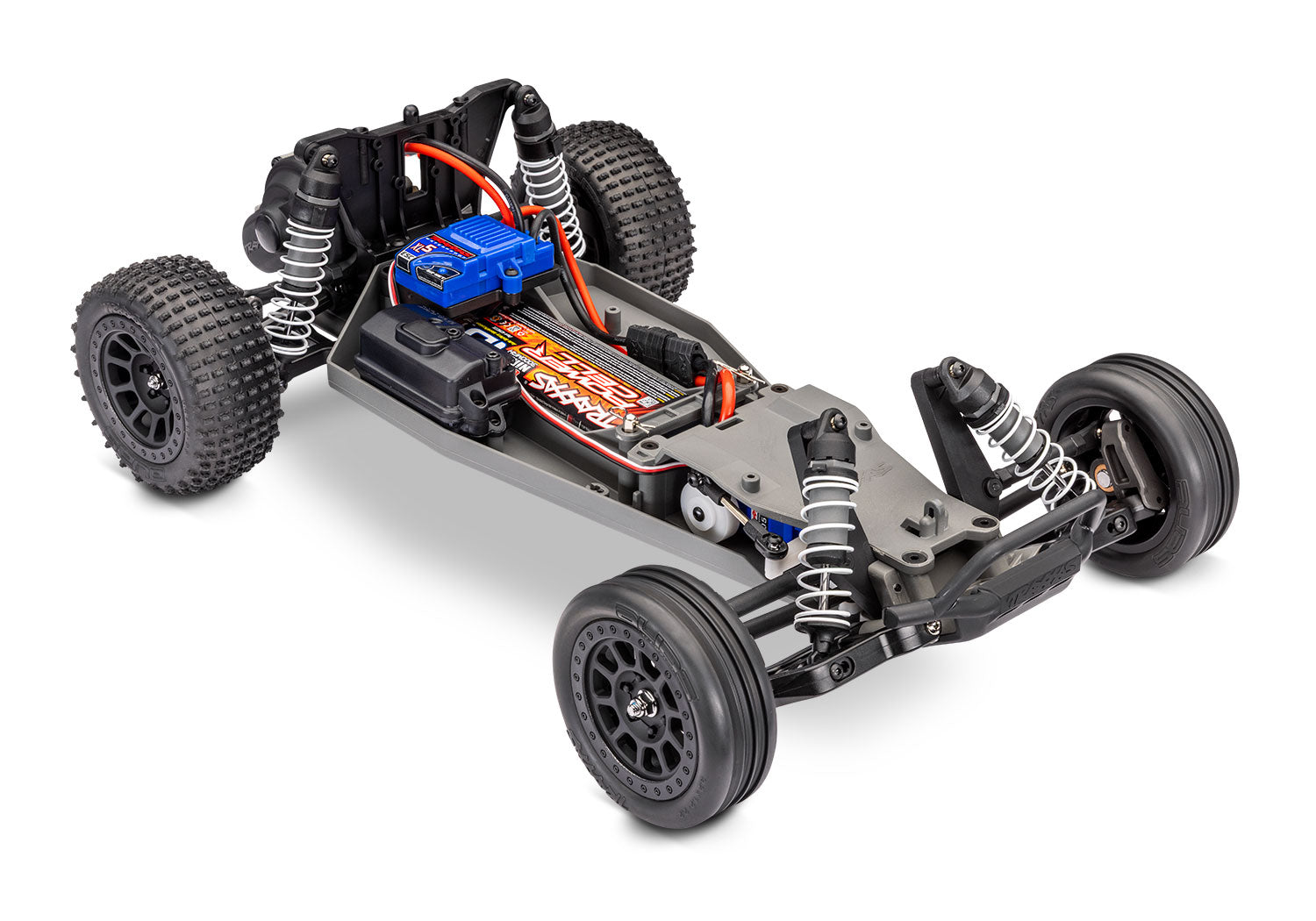

Tough Fiber-Composite Monocoque Chassis

Wide, low-profile design for increased stability
All electronics securely fastened to chassis

Easy Access Battery Compartment

Accepts 7-cell flat packs and hump packs
Accepts 2-cell LiPo batteries

Transmission and Driveline

Brushless-ready Magnum 272™ metal-gear transmission
Torque-Control™ slipper clutch system
Planetary gear differential with steel ring gear
Sealed gearbox protects the transmission with beefed up motor guard
External gear cover with easy clutch access
Heavy-duty telescoping U-joint driveshafts and yokes

Steering

High-torque waterproof Traxxas 2056 steering servo
High-performance bellcrank system minimizes bump steer

Suspension

Durable solid camber links eliminate the need for adjustment
Captured rod ends won't pop off

Springs and Shocks

Fully adjustable oil-filled Ultra Shocks™ ;with X-ring technology
White powder-coated springs

Wheels and Tires

Pre-glued Alias^® step-pin rear tires and ribbed front tires with performance foam inserts
2.2″ black multi-spoke wheels

Precision Hex Hardware

What’s In The Box:

Bandit 2WD with XL-5™ ESC and Titan^® 550 Motor
TQ™ 2.4 GHz radio system
Traxxas 3000 mAh, 8.4-volt 7-cell NiMH battery with iD^®
4-amp USB-C fast charger
High quality maintenance tools

What You’ll Need:

Batteries
Four AA alkaline batteries for the transmitter.

MODEL 24254-8: Fully assembled, waterproof, Ready-To-Race^®, with TQ™ 2.4 GHz radio system, XL-5^® Electronic Speed Control, 8.4 V NiMH 3000 mAh Power Cell™ battery, 4-amp USB-C fast charger, and ProGraphix^® painted body.
