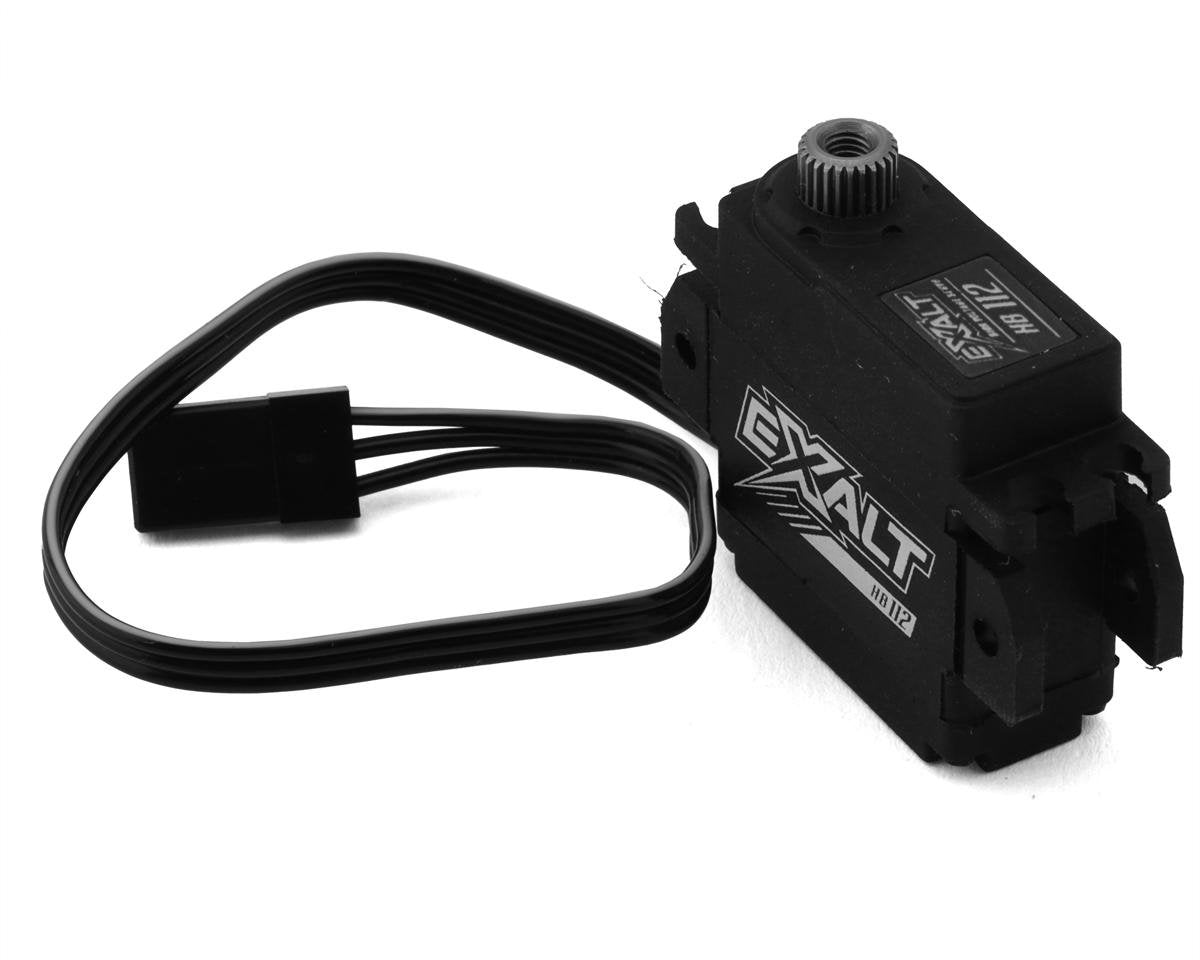

Team Exalt HB112 1/12 Metal Gear Brushless Mini Servo (High Voltage) EXAHB112

Team Exalt HB112 1/12 Metal Gear Brushless Mini Servo (High Voltage) EXAHB112

Team Exalt HB112 1/12 Metal Gear Brushless High Voltage Mini Servo. Capable of running on up to 8.4V with all machined Titanium and metal gears, and a super lightweight composite case, this mini servo is intended for 1/12 scale cars in need of a lightweight servo without compromising speed and torque to provide a smooth and responsive steering feel!

Features:

• Hi voltage capable of up to 8.4V
• High torque and speed powerful coreless motor
• All Metal and Titanium machined gears
• Smooth and responsive feel
• Lightweight composite case

Specifications:

• Speed:
• @6.0V: 0.085sec/60°
• @7.4V: 0.073sec/60°
• @8.4V: 0.065sec/60°
• Torque:
• @6.0V: 87.49oz-in (6.3kg-cm)
• @7.4V: 104.15oz-in (7.5kg-cm)
• @8.4V: 118.04oz-in (8.5kg-cm)
• Motor: Coreless
• Operating Voltage: 4.8V-8.4V
• Operating Trmp.: -
• Dimensions (LxWxH): 27x12x28mm
• Weight: 16.5g (0.582oz)
• Operating Spline: 25T

Includes:

• (1) Exalt HB112 High Torque 1/12 Coreless Servo

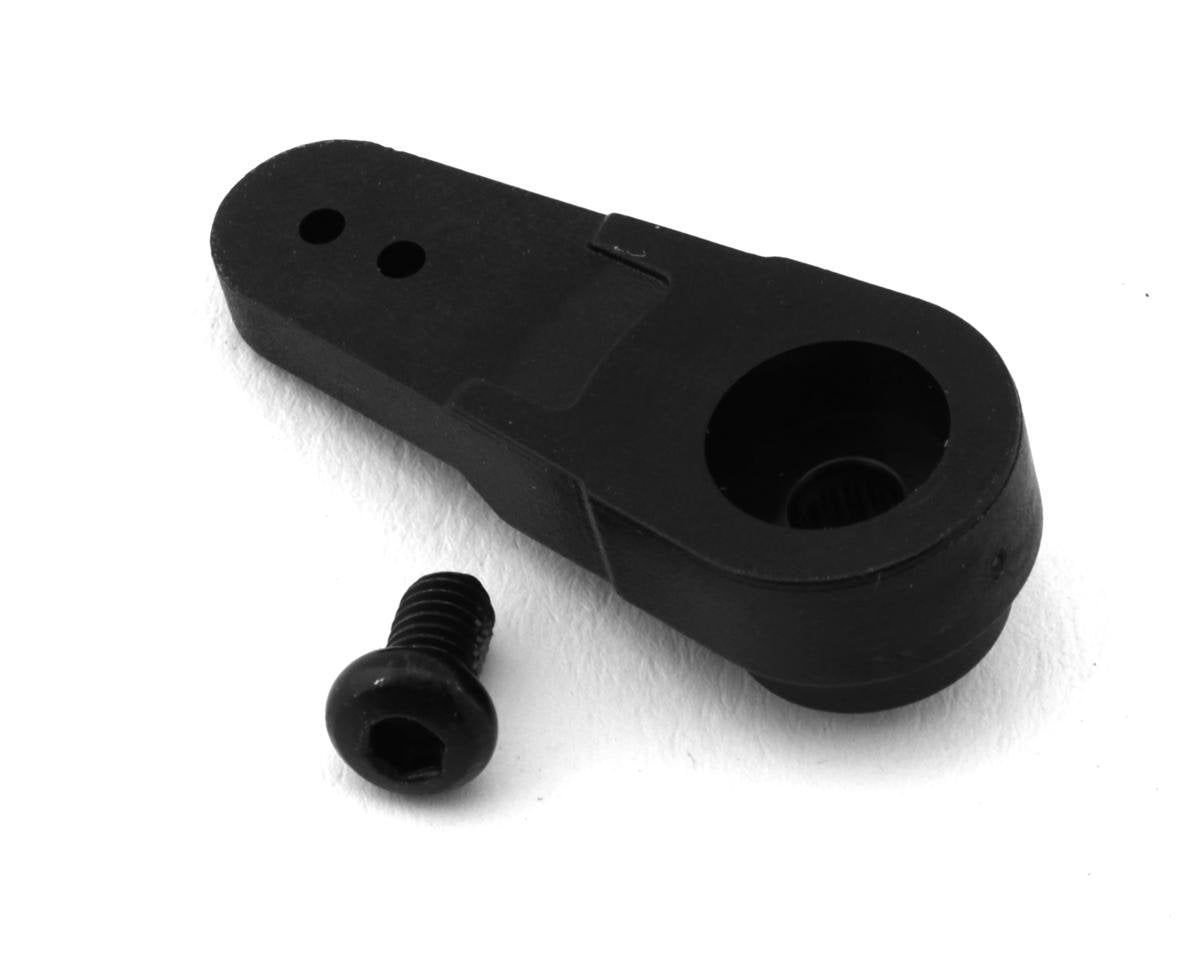

• Composite Servo Horns and Mounting Hardware
