Product Details
Overview

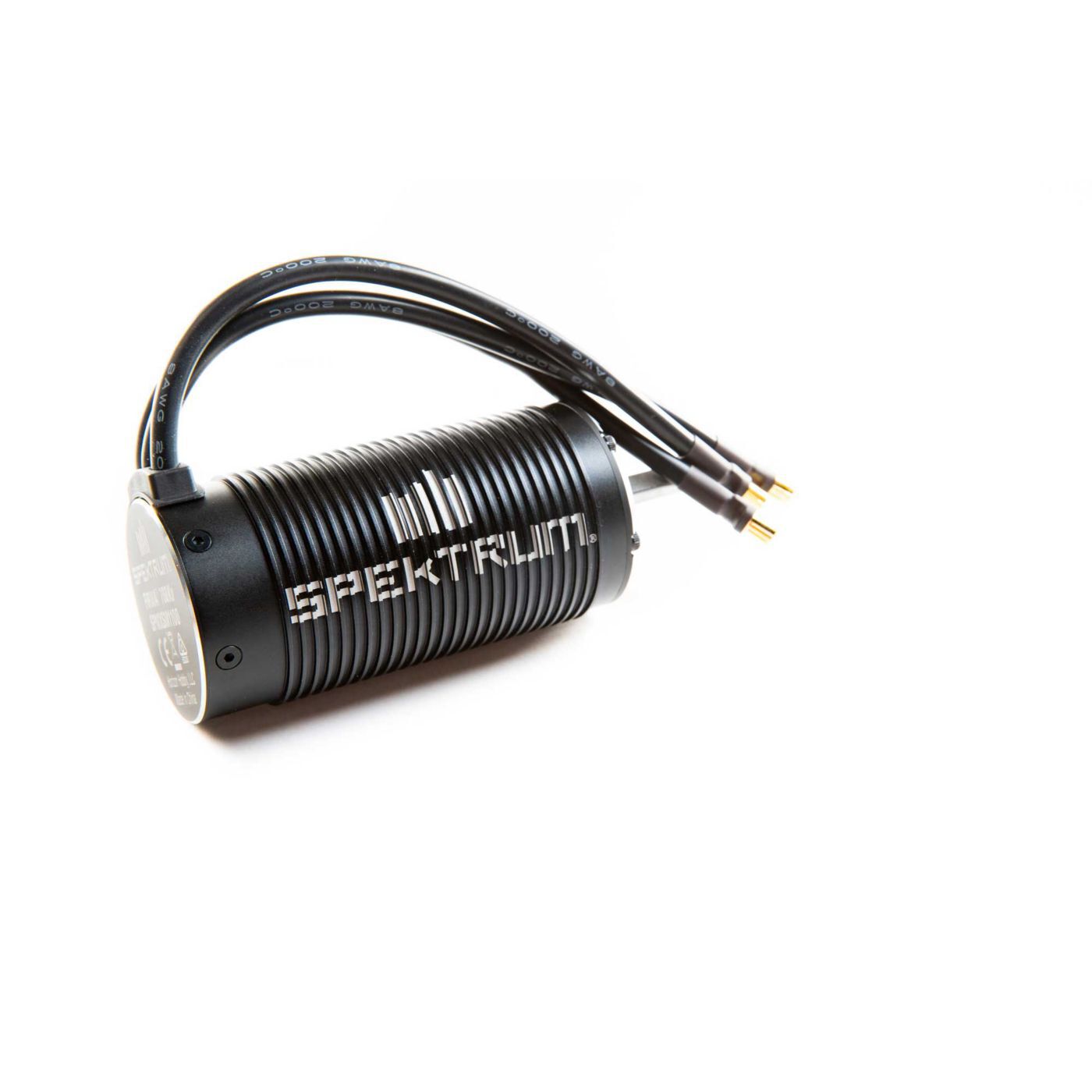

The Firma 2050Kv brushless motor is a perfect option for 1/7 and 1/8 scale buggy, truggy or monster trucks with a 3S-6S LiPo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
Perfect upgrade for 1/7 and 1/8 scale racers and bashers
Safe-D Shaft provides a C-clip locking point to prevent pinion gear slip
High efficiency design
6S LiPo power capable
High-quality 4-pole sintered rotor
4mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 5mm shaft
In The Box
- Firma 2050Kv Brushless Motor
Needed to Complete
Product Specifications
| Motor Type |
Brushless - Sensorless |
| Motor Design |
Inrunner |
| Maximum Continuous Current |
62A |
| Connector Type |
4mm Bullet |
| Efficiency |
85% |
| Motor Size |
4074-2050Kv Brushless Inrunner |
| Product Length |
2.9" (74 mm) |
| Application |
1/8 scale buggy, truggy or monster trucks with 3S-6S LiPo setup |
| Number of Poles |
4 |
| Output |
5050W |
| Product Weight |
0.92lbs (415g) |
| Shaft Diameter |
0.196" (5 mm) |
| Size |
4074 |
| Outer Diameter |
1.57" (40 mm) |
| Input Voltage |
12 - 25.2V |
| RPM/Volt (Kv) |
1900Kv |
