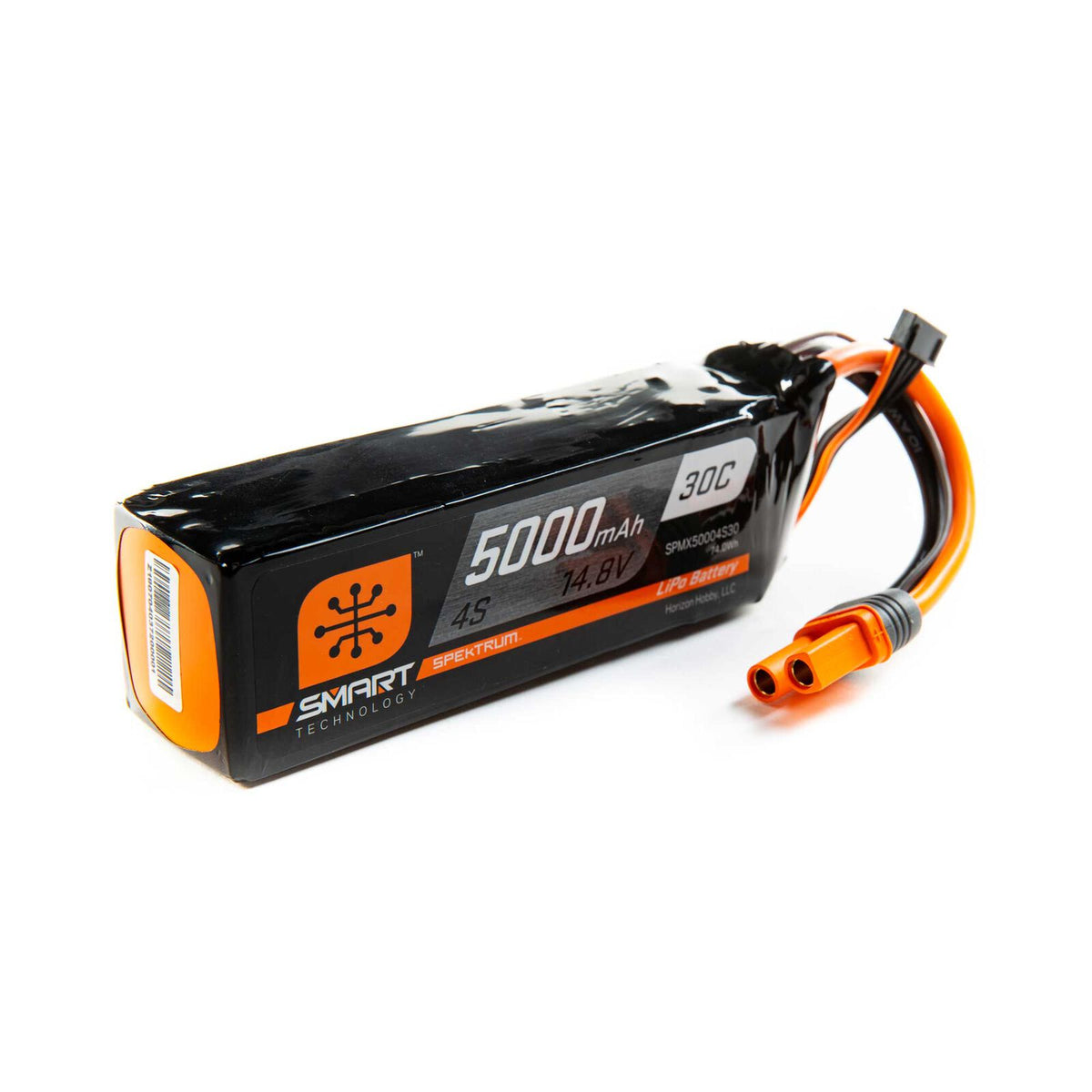

MPN: SPMX50004S30
UPC:
EAN:
Key Features
- Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
- Integrated Microchip Stores Unique Parameters for Each Battery
- New IC3 and IC5 Connectors are Compatible with EC3 and EC5
- Save Time and Hassle, while Improving Battery Life
- Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Feature OverviewYou’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger “Start” button. Smart technology takes care of the rest.Every Smart LiPo battery is factory assembled with the next-generation IC3™ or IC5™ output connector that’s conveniently compatible with older devices equipped with robust EC3™ and EC5™ connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.Spektrum Smart LiPo Batteries Store Unique Data, such as:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you’ve chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the “Start” button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Specifications
Application Aircraft
Battery Balance Connector
Battery Type LiPo, LiPo (3.7V per cell)
Battery Voltage 14.8V
Capacity 5000mAh
Cell Configuration 4S1P
Charge Protection Circuitry
Connector Type IC5
Hard Case No
Height 1.4" (36.5mm)
Length 5.7" (143.6mm)
Maximum Charge Rate 4C
Maximum Continuous Discharge Current 30C
Maximum Continuous Discharge Rate 30C
Number of Cells 4
Weight 1.07LBS (486g)
Width 1.7" (42.5mm)
Wire Gauge
