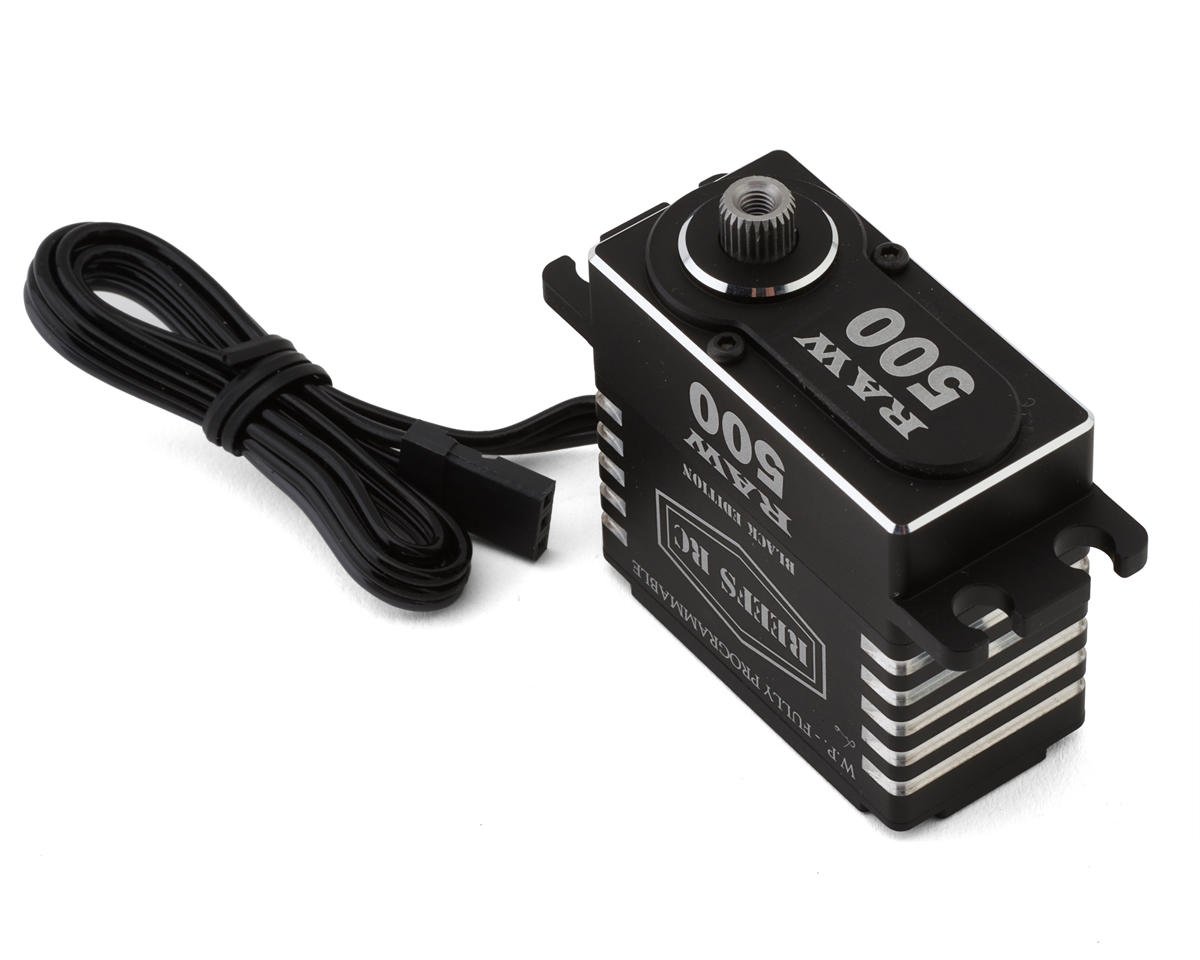

Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Black Edition) SEHREEFS178

Reefs RC RAW 500 High Torque/Speed Digital Servo (High Voltage) (Black Edition) SEHREEFS178

This is the Reefs RC RAW500 High Torque and Speed Digital Brushless Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its high torque output of 565oz-in (40.7kg-cm) at 8.4 Volts, lightning speed operation of 0.08sec/60° at 8.4 Volts, fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats!

Features:

• Powerful 4-Pole brushless motor
• "Submarine Waterproof" with 7-point seals
• High voltage capable
• Magnetic angle sensor
• Internal steel gears
• CNC Aluminum casing with "ULTRA" finish
• Fully Programmable with REEFS Software

Specifications:

• Speed:
• @6.0V: 0.11sec/60°
• @7.4V: 0.09sec/60°
• @8.4V: 0.08sec/60°
• Torque:
• @6.0V: 450oz-in (32.4kg-cm)
• @7.4V: 500oz-in (36kg-cm)
• @8.4V: 565oz-in (40.7kg-cm)
• Motor: Brushless
• Operating Voltage: 5.0V-8.4V
• Dimensions(LxWxH): 1.57x.79x1.5in (39.87x20.06x38.1mm)
• Weight: 2.75oz (77.96g)
• Operating Spline: 25T

Includes:

• (1) RAW500 Digital Waterproof Brushless Black Edition Servo
• Assorted Servo Horns and Mounting Hardware
