Charger Overview:

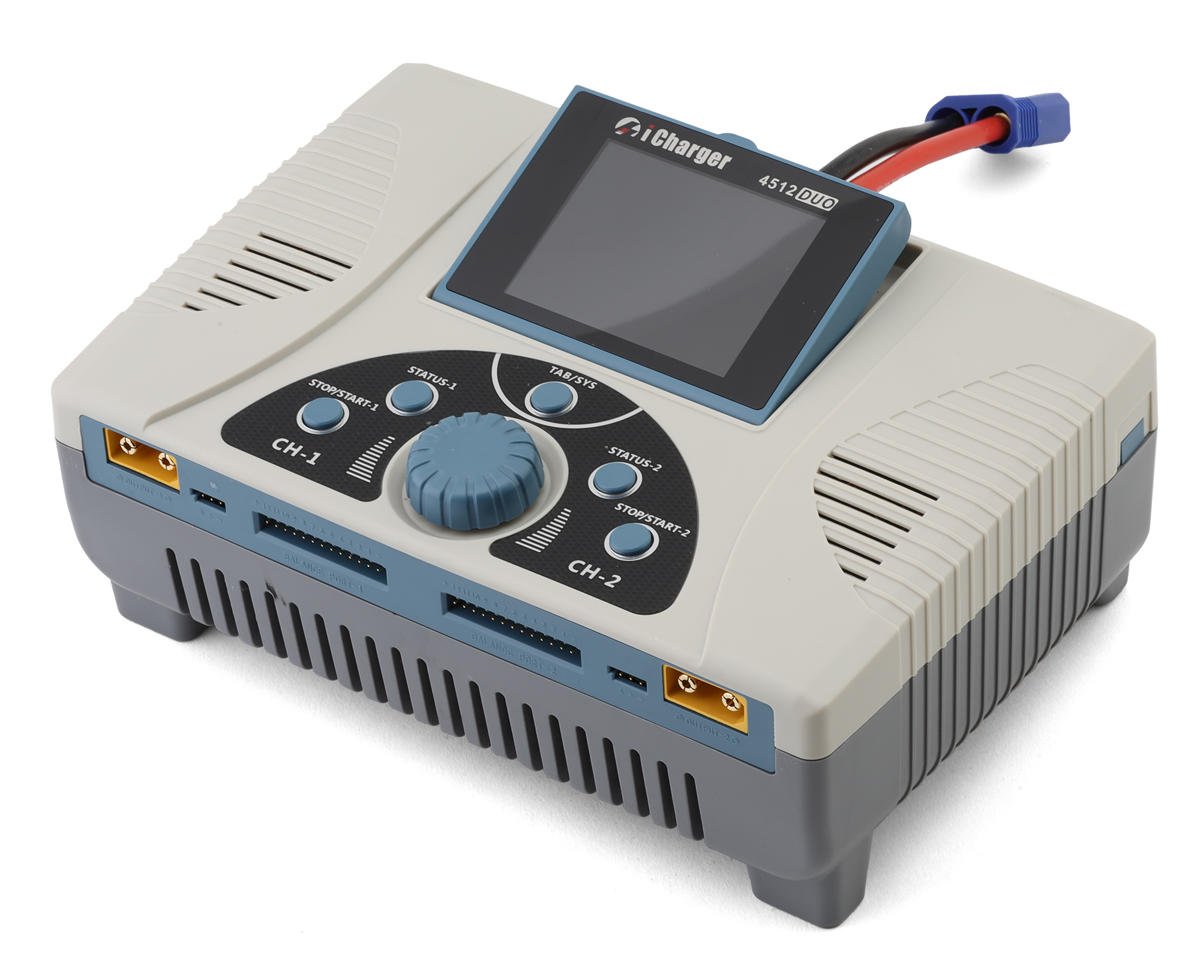

This is the iCharger 4512 Duo Dual Port LiPo/Life/NiMH/NiCD Battery Charger from Junsi, a cutting-edge charger engineered for exceptional performance. With an outstanding 45A charge rate and a total output of 2800W, this charger represents a significant upgrade from its predecessor, the 4010Duo. Equipped with upgraded connections on both input and output, it effortlessly handles higher current levels. The charger features open-port style balance connections, eliminating the need for separate balance boards, along with a sleek IPS display, enhanced temperature ports, and a USB-C fast-charge port.
Features:
-
High Charge RateĀ offers a remarkable 45A charge rate and a total output of 2800W for efficient charging.
-
Dual Port DesignĀ allows simultaneous charging of batteries with different cell counts at up to 45A per channel.
- Upgraded connections on input and output for seamless handling of higher current levels.
- Innovative Balance ConnectionsĀ feature an open-port style balance connection, eliminating the need for separate balance boards.
-
USB-C Fast-Charge PortĀ for fast charging convenience.
Specifications:
-
Dimensions:Ā 210x140x80mm
-
Weight:Ā 1530g
-
Charge Power (Max):Ā 2800W (2000W per channel)
-
Charge Current Range:Ā 0.1-45A per channel (80A in sync mode)
-
Discharge (Max):Ā 200W (130W per channel)
-
External Discharge (Max):Ā 2800W (2000W per channel)
-
Regenerative Discharge (Max):Ā 2800W (2000W per channel)
-
Balance Current:Ā 2A per channel
-
Maximum Output Voltage:Ā 40V DC
-
Input Voltage:Ā 11-53V DC
-
Input Current Limit:Ā 80A
-
Supported Battery Types:Ā LiPo, LiHV, Li-Ion, LiFe, LTO, NiZn, NiMH, NiCd, Pb
-
USB Charge:Ā Type-C Charge Port: 5V/3A, 9V/2A, 12V/1.5A
Includes:
- (1) iCharger 4512 Duo Dual Port LiPo/Life/NiMH/NiCD Battery Charger
- (1) EC8 Power Lead
- (2) XT90 Plugs
