MPN: ICC2010
UPC:
EAN:
Key Features
- Patent Automatic alarm function
- All Status Display
- Super Portability
- Voltage Display Function
- Supports the Ddetection of up to 8S Battery
- ARM 32bit Hi-speed CPU
- 1.3" OLED Display
Overview

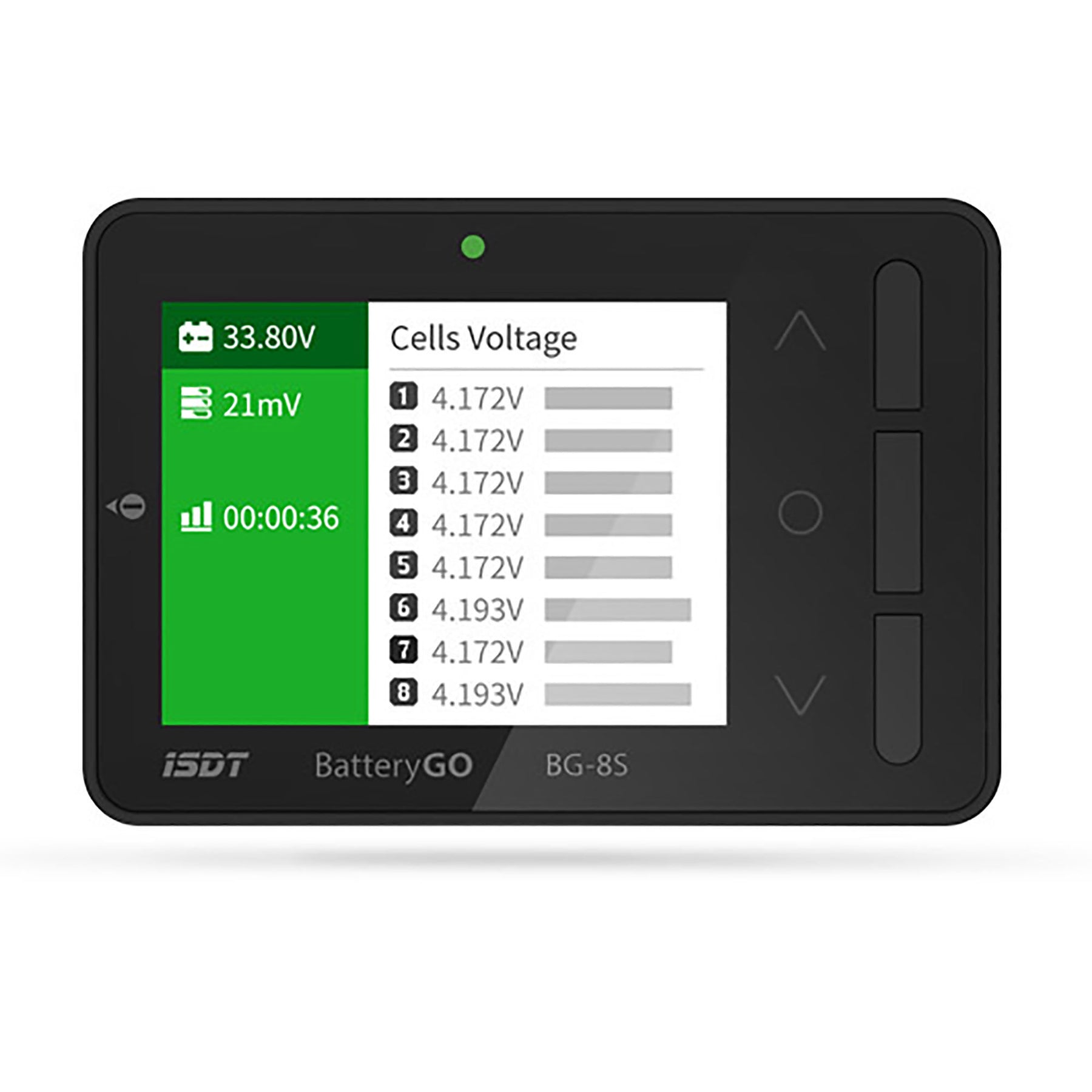

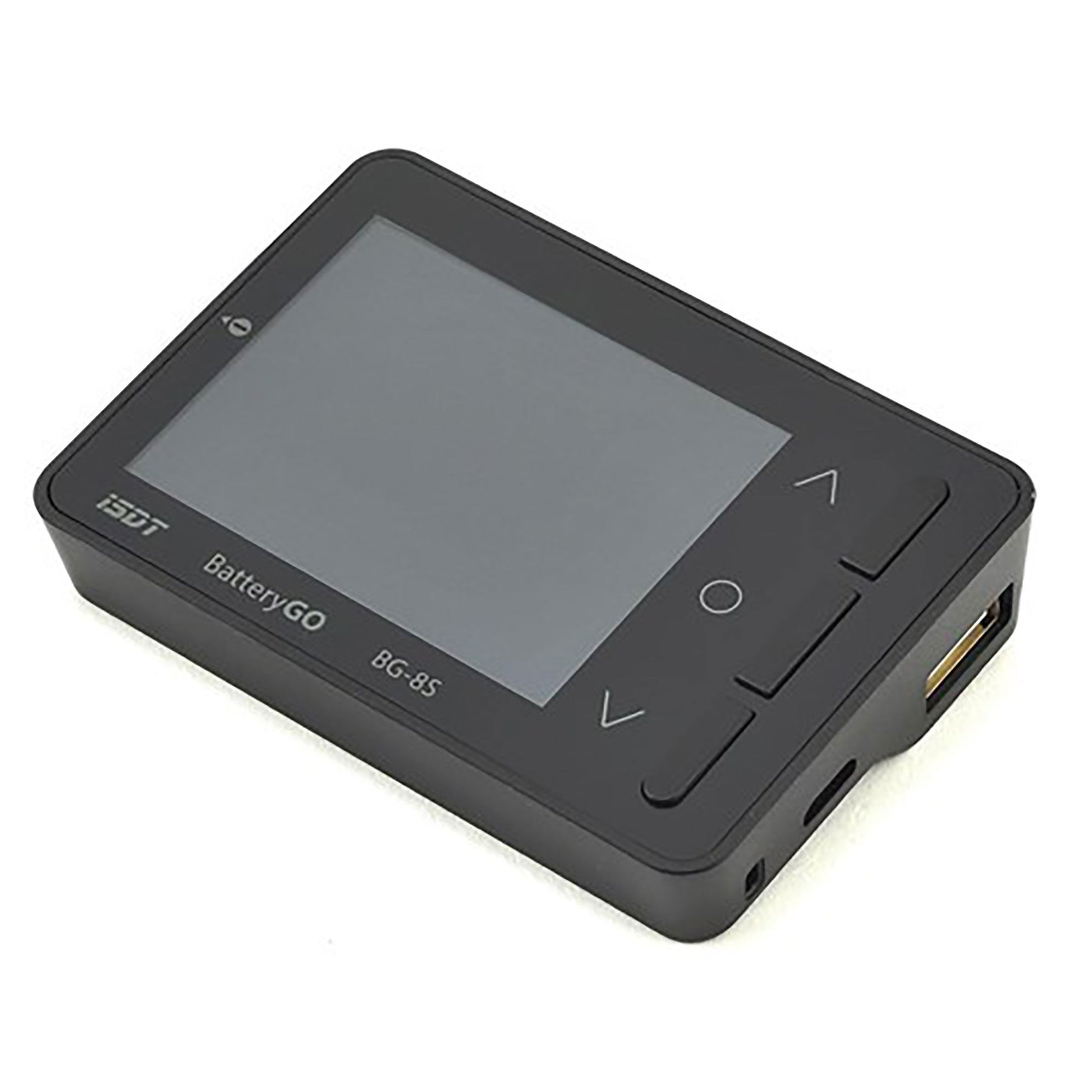

Designed for LiPo, LiHv, LiFe, LiIon batteries, highly effectively manage your different batteries with just our BC-8S Battery Checker. Built-in four bright LED lights and two 85dB buzzer, with sound and light tracking signal, you will never lose contact with your UAV. 3 kinds of working mode, easy to switch as you wish. Voltage recording function Histogram can tell you the voltage change during usage of battery. The upper part tells you the lowest voltage recorded during usage. The lower part shows you current voltage. For on-board measurement, it's recommended to use this mode, after your flight by checking histogram, it can easily tell how well is your battery. Suitable for batteries with JST XH 2.54 balance port, connect the balance port start from "BAT-"
Specifications
- Dimensions: 54x30x9 mm
- Weight: 15g
- Lowest Function Voltage: 2.6V (1S Battery)
- Voltage Measurement Range: 1.0-5.0V
- Supported Battery Type: LiPo, LiHv, LiFe, LiIon
- Balance Cells: 1-8S
- Voltage measurement accuracy: +/-5mV
- Intensity of Buzzer Sound: 85dB
