Hot Racing 12mm to 17mm Hex Hub Adapters (4) (6mm Offset) WH17HS01

Hot Racing 12mm to 17mm Hex Hub Adapters (4) (6mm Offset) WH17HS01

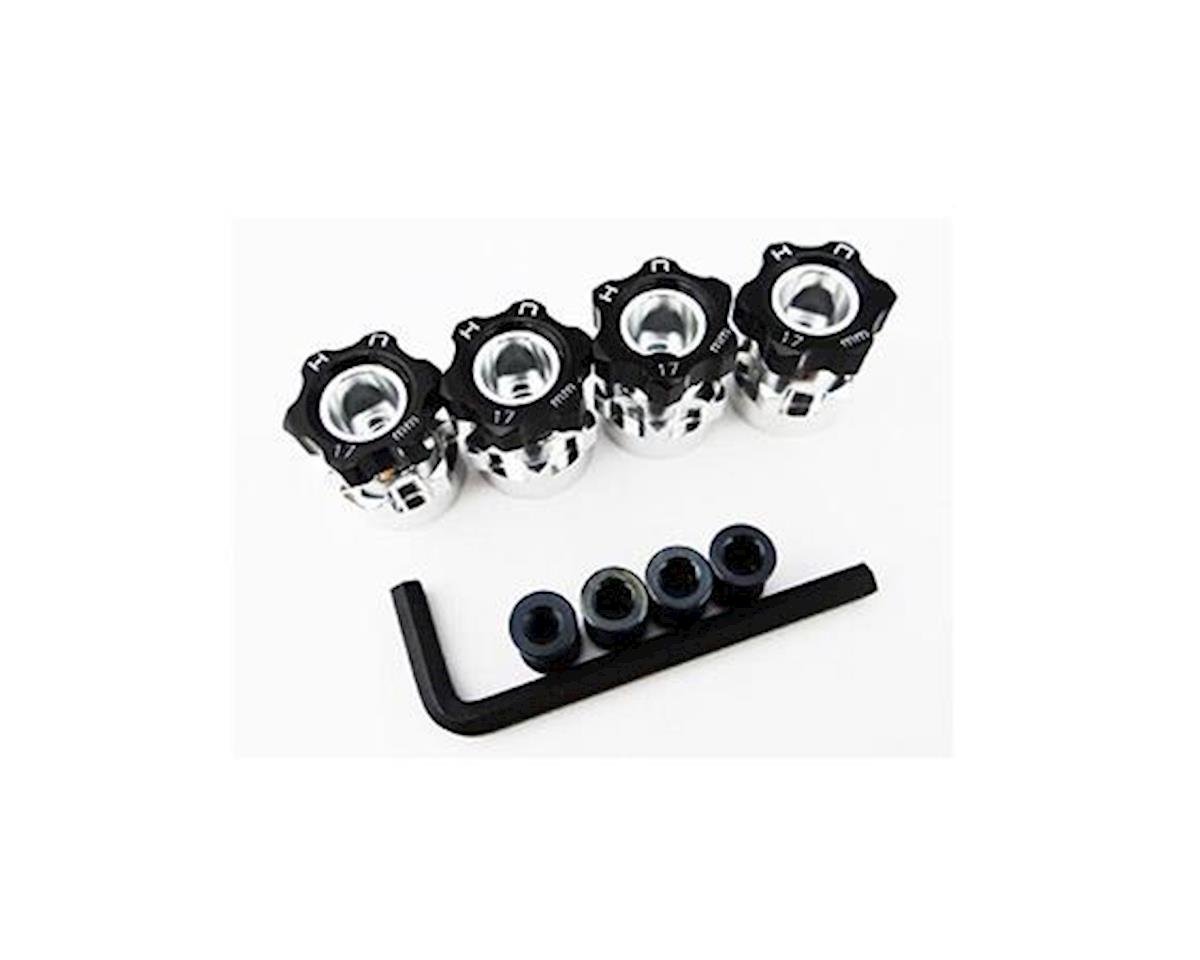

This is a pack of Hot Racing 12mm to 17mm Hex Hub Adapters, with a 6mm offset. These adapters are compatible with many 1/10th scale vehicles with factory 12mm hex hubs and allow the use of 17mm hex wheels, all while adding a 6mm width extension per side of the vehicle for a wider, more stable, stance.

Features:

• CNC machined solid billet aluminum construction
• 12mm hex to 17mm hex conversion
• 6mm offset extension per side
• 17mm wheel nuts
• Adapters are anodized silver in color, wheel nuts are anodized black
• Wheel nuts feature an internal o-ring to maintain the nut position, even under the most severe conditions

Specifications:
Total length: 20mm
Max axle diameter: 5mm
Axle thread: M4
Hex depth: 5mm

Comments: See Hot Racing HRARSSLF117X for replacement/spare M4 axle hub nuts; O-rings are 11x1mm.

NOTE: These adapters fix a wide array of vehicles. Make sure the vehicle uses a hex at least 5mm thick, or the adapter may bind against the hub.
