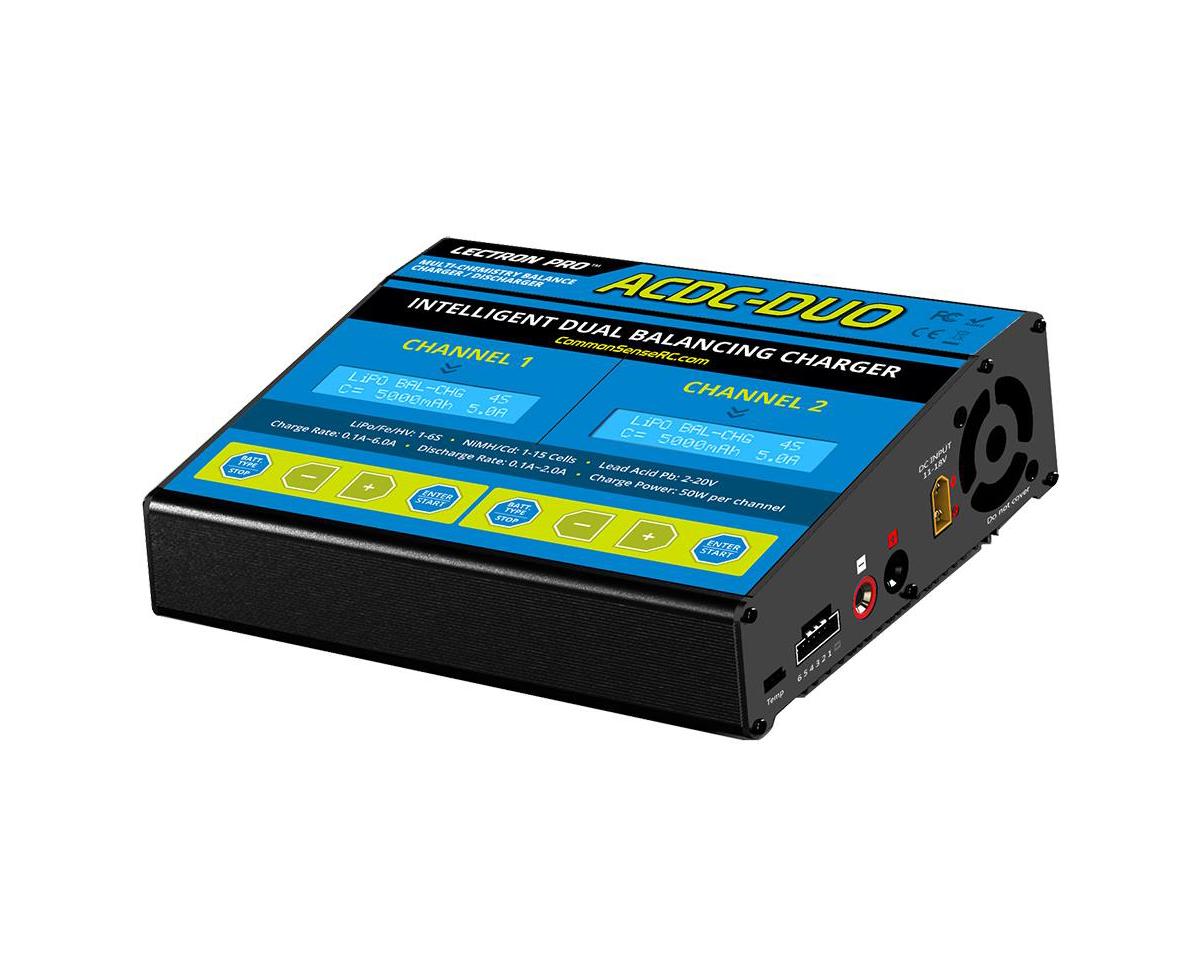

The ACDC-DUO features two independent 50 watt charge ports, allowing you to get back to action in half the time. This versatile charger handles up to 15 NiCad/NiMH cells or 6S Lithium batteries, including LiPo, LiFe, and LiHV, with a maximum charge rate of 6 amps. It's equipped with a balancing circuit for lithium batteries and includes two balancing boards with 2S-6S JST-XH connectors, along with Deans-type and XT60 charging cables.
Features:
-
Dual Battery Charging: Two independent 50 watt charge ports for faster turnaround.
-
Multi-Chemistry Support: Charges NiCad, NiMH, LiPo, LiFe, LiHV, and Pb batteries.
-
Built-in Balancing Circuit: Ensures balanced charging for lithium batteries.
Specifications:
-
Input Voltage: DC 11-18.0V, AC 100-240V
-
Charging Circuit Power (Per Channel): 50 watts max
-
Total Charging Circuit Power: 100W
-
No. of Lithium Cells: 1S-6S
-
No. of NiMH/NiCad: 1-15 cells
-
Pb Battery Voltage: 2-20V
-
Charge Rate (Per Channel): 0.1A to 6.0A
-
Discharge Power (Per Channel): 5 watts max
-
Total Discharge Power: 10W
-
Discharge Rate (Per Channel): 0.1 to 2.0A
-
Balance Current: 400mAh/cell
-
Dimensions (LxWxH): 7x4.15x2.16"
-
Weight: 2.8lbs
Includes:
- (1) ACDC-DUO Two-Port Multi-Chemistry Charger
- (2) Balancing Boards with 2S-6S JST-XH Connectors
- (1) Deans-Type Charging Cable
- (1) XT60 Charging Cable
