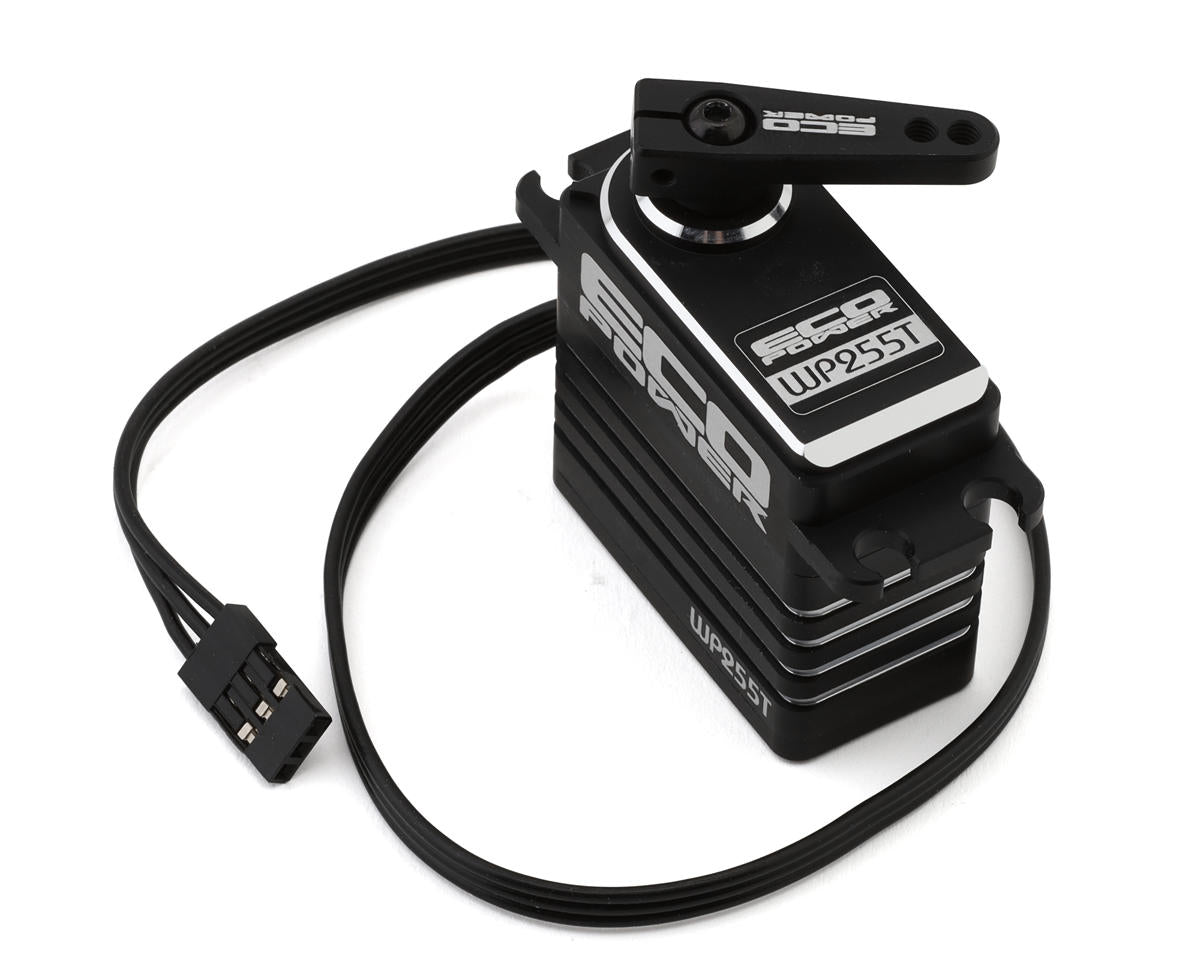

EcoPower WP255T Waterproof High Torque Metal Gear Brushless Servo (HV) ECP-255T

EcoPower WP255T Waterproof High Torque Metal Gear Brushless Servo (HV) ECP-255T

Price
Regular price $9999
Regular price $11999 Sale price $9999
Save $20
/
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon
Shipping calculated at checkout.

MPN: ECP-255T UPC: 694485090214


High-Torque Brushless Power

The WP255T's brushless motor delivers smoother operation, lower heat, and longer lifespan compared to brushed servos, making it ideal for high-demand vehicles. With 681 ounce-inches of torque at 7.4V, it provides the muscle needed to control oversized tires and heavy rigs. Additionally, its 0.12-second speed ensures responsive steering feel even under load.

Steel Gear Strength

A full steel geartrain gives the WP255T the durability required for harsh terrain, big jumps, and aggressive driving. This hardened setup resists wear and eliminates concerns about stripped gears. The aluminum heat sink case helps manage temperature during long runs, maintaining consistent performance in demanding environments.

Waterproof Protection

Engineered with a one-meter waterproof-rated gasket system, the WP255T is built for mud, rain, snow, and water crossings. Its sealed design keeps moisture out, allowing drivers to push their vehicles through wet terrain with confidence. Whether crawling through streams or bashing through puddles, this servo stays protected and ready.

Features:

  • Lifetime Gear Warranty Backed by Amain Hobbies
  • 681 ounce-inches of torque at 7.4V for heavy-duty steering
  • 0.12 sec transit speed for responsive control
  • Brushless motor efficiency for smooth, cool operation
  • Full steel geartrain for long-term durability
  • Aluminum heat sink case for improved thermal management
  • Waterproof gasket system rated to one meter
  • Handles large 2.2-inch crawler and basher tires with ease
  • Ideal for 1/7 and 1/8 scale vehicles
  • Delivers premium-level specs at a mid-range price point

Includes:

  • (1) Lifetime Gear Warranty
  • (1) WP255T High Torque Metal Gear Brushless Servo
  • (1) Aluminum Clamping Servo Horn (25T)
  • Servo Hardware & Grommets

Specifications:

Application 1/10, 1/8 & 1/7 Surface
Operating Voltage 4.8-8.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.14/60° sec
Operating Speed @ 7.4V 0.12/60° sec
Operating Speed @ 8.4V 0.10/60° sec
Dynamic Torque @ 6.0V 574oz-in (41.3 kg-cm)
Dynamic Torque @ 7.4V 681oz-in (49 kg-cm)
Dynamic Torque @ 8.4V 758oz-in (54.5 kg-cm)
Motor Type Brushless Digital
Output Shaft 25T
Gears Metal w/Lifetime Gear Warranty
Pulse/Frequency 1520s / 333hz
Dimensions 1.56x0.79x1.55in (39.5x20x39.25mm)
Weight 2.7oz (76.6g)
