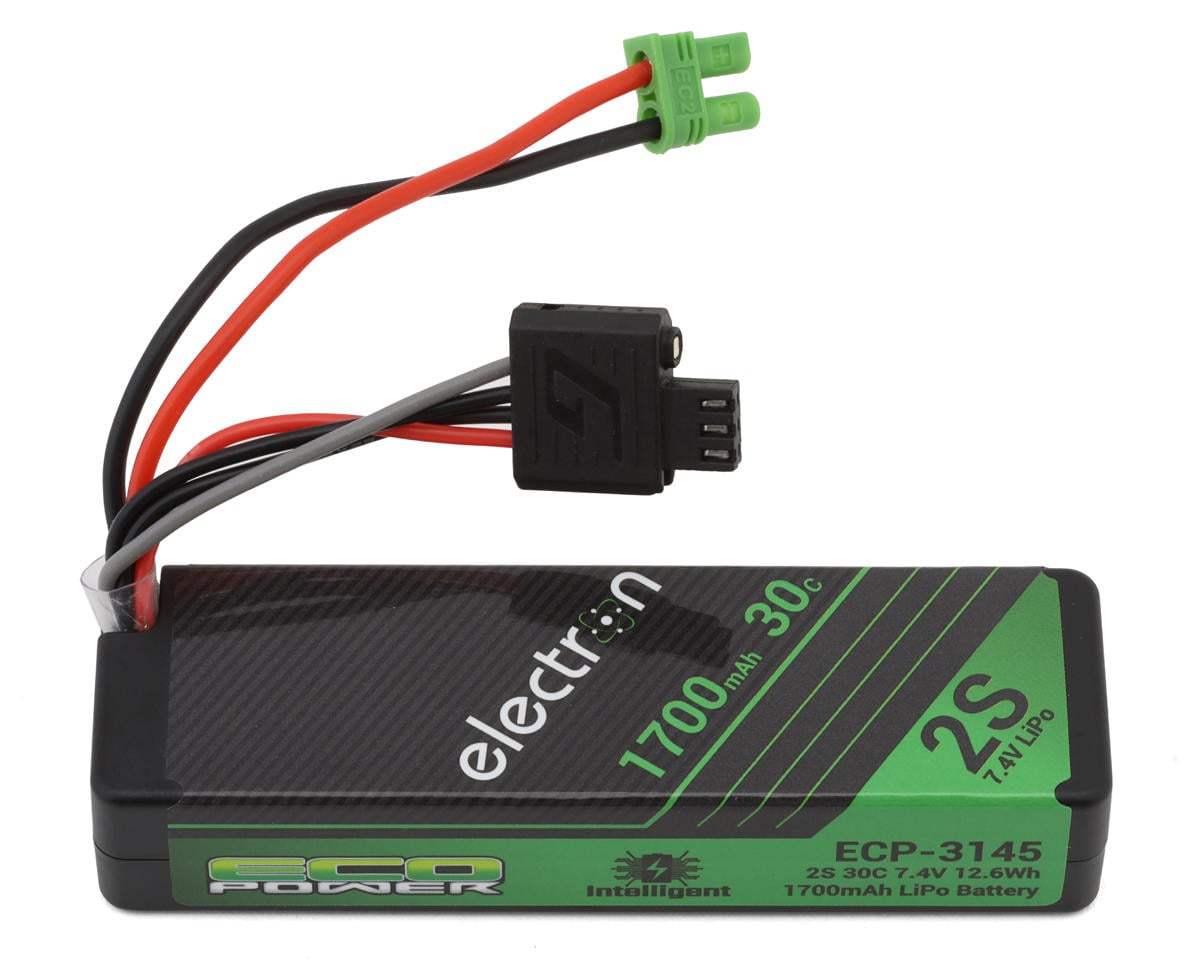

EcoPower "Electron" 2S 30C Intelligent LiPo Battery w/EC2 Plug (7.4V/1700mAh) ECP-3145
The Intelligent LiPo Battery from EcoPower makes charging easier, safer, and smarter. Designed for use with the Losi™ NASCAR, Arrma™ Grom platforms and other mini RCs, this battery when paired with the EcoPower "Electron Mini" charger (ECP-1007) offers a seamless charging experience with its advanced intelligent technology. Whether you're a seasoned hobbyist or new to the world of RC, this battery simplifies the operating process and ensures your battery is charged efficiently and safely.
About the "Electron" Intelligent LiPo Battery
Intelligent Charging Technology
The Electron Intelligent LiPo Battery is designed for seamless integration with the Electron Mini Intelligent Charger (ECP-1007), ensuring effortless charging every time. When connected, the charger automatically detects the battery type and adjusts to the optimal settings, delivering a worry-free charging experience. The battery's advanced technology pairs perfectly with the charger's user-friendly interface, which features just two buttons—Charge and Storage—making operation straightforward.
Charging Safety
Safety is paramount with Electron Intelligent LiPo Batteries, as they are designed to work seamlessly with the Intelligent Charger to prevent common charging mistakes. This feature is especially valuable for newcomers to the hobby, as it helps protect your batteries from potential damage. The intelligent charging system provides peace of mind by removing the guesswork, ensuring that your battery is charged correctly every time.
Features:
- Automatic identification and recording of all battery parameters
- High Quality lithium
- Adjusting charging parameters to improve safety
- Automated tracking and logging of all battery parameters
- Customizable charging settings for enhanced safety
- Balance plug featuring an integrated chip and proprietary design technology
- Safeguards and prolongs battery lifespan
IMPORTANT LITHIUM POLYMER SAFETY INFORMATION
- DO NOT leave a battery in your model when charging
- DO NOT leave lithium batteries unattended when charging
- ALWAYS balance charge lithium battery
- ALWAYS use a LiPo Safe charging bag/box
- YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
- YOU MUST not over discharge lithium battery packs
- READ & UNDERSTAND the instructions carefully before operating this battery
Includes:
- (1) "Electron" 2S 30C Intelligent LiPo Battery
Recommended to Complete:
EcoPower Flame Resistant LiPo Charging Bag
$18.99
Add to Cart
Specifications
| Nominal Voltage: |
7.4V (2S) |
| Capacity: |
1700mAh |
| Maximum Charge Rate: |
1C (0.85A) |
| Discharge Rates |
|
| Continuous: |
30C |
| Peak: |
(Not Available) |
| Cell Configuration: |
2S1P |
| Watt Hours: |
12.6Wh |
| ROAR Approved: |
No |
| Connectors |
|
| Battery: |
EC2 |
| Balance: |
Intelligent |
| Dimensions (LxWxH): |
3.95x1.17x0.811in (100.12x29.9x20.53mm) |
| Weight: |
3.40oz (96g) |
Note: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in overheated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for the first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use a battery that has too low a voltage. Do not expose batteries to sunshine or store/charge batteries at temperatures above 35°C or in a closed car. The high-temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging, or racing, do not charge it until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
**Note: Please use the "Resources" tab to view important lithium polymer battery warnings and safety information.
