Vehicle Specs
|
Traxxas Toyota 4-Tec 3.0 Toyota Supra BL-2s 93164-4-WHT |
||||||||||||||||||
|
Product Description

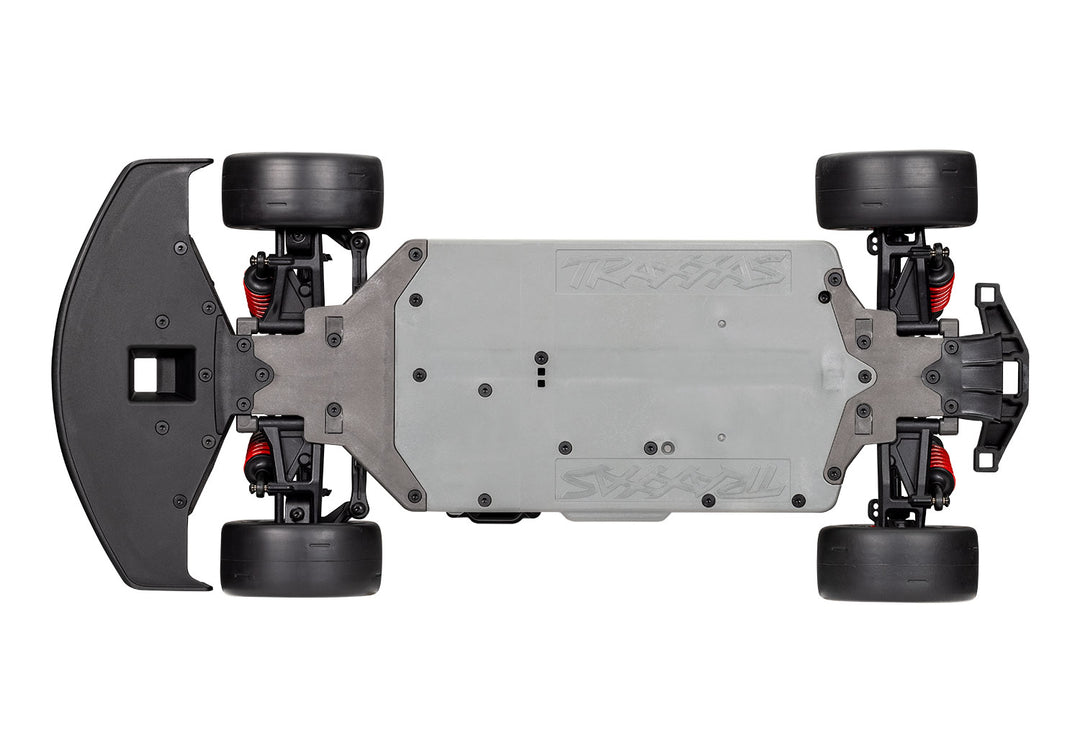

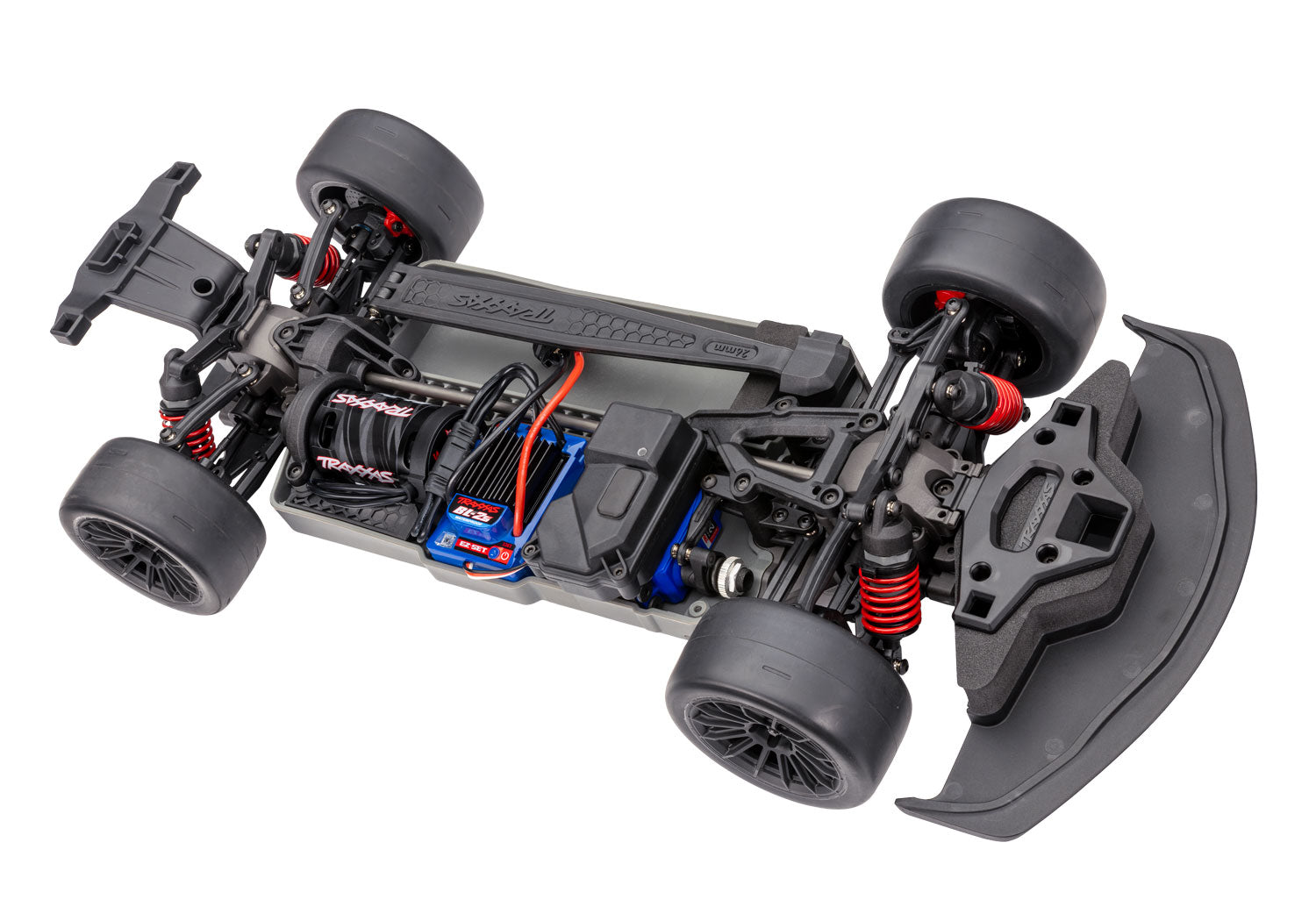

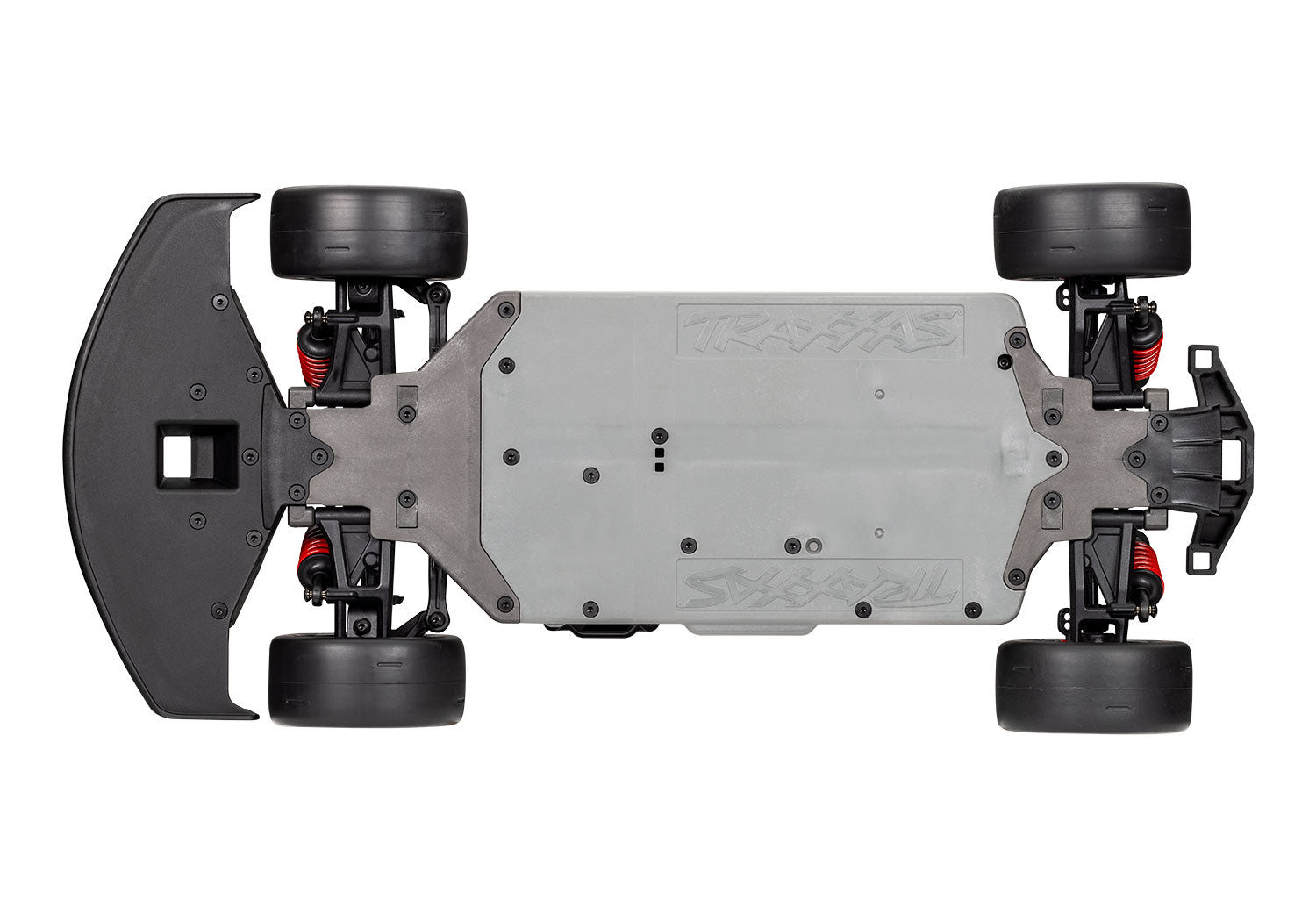

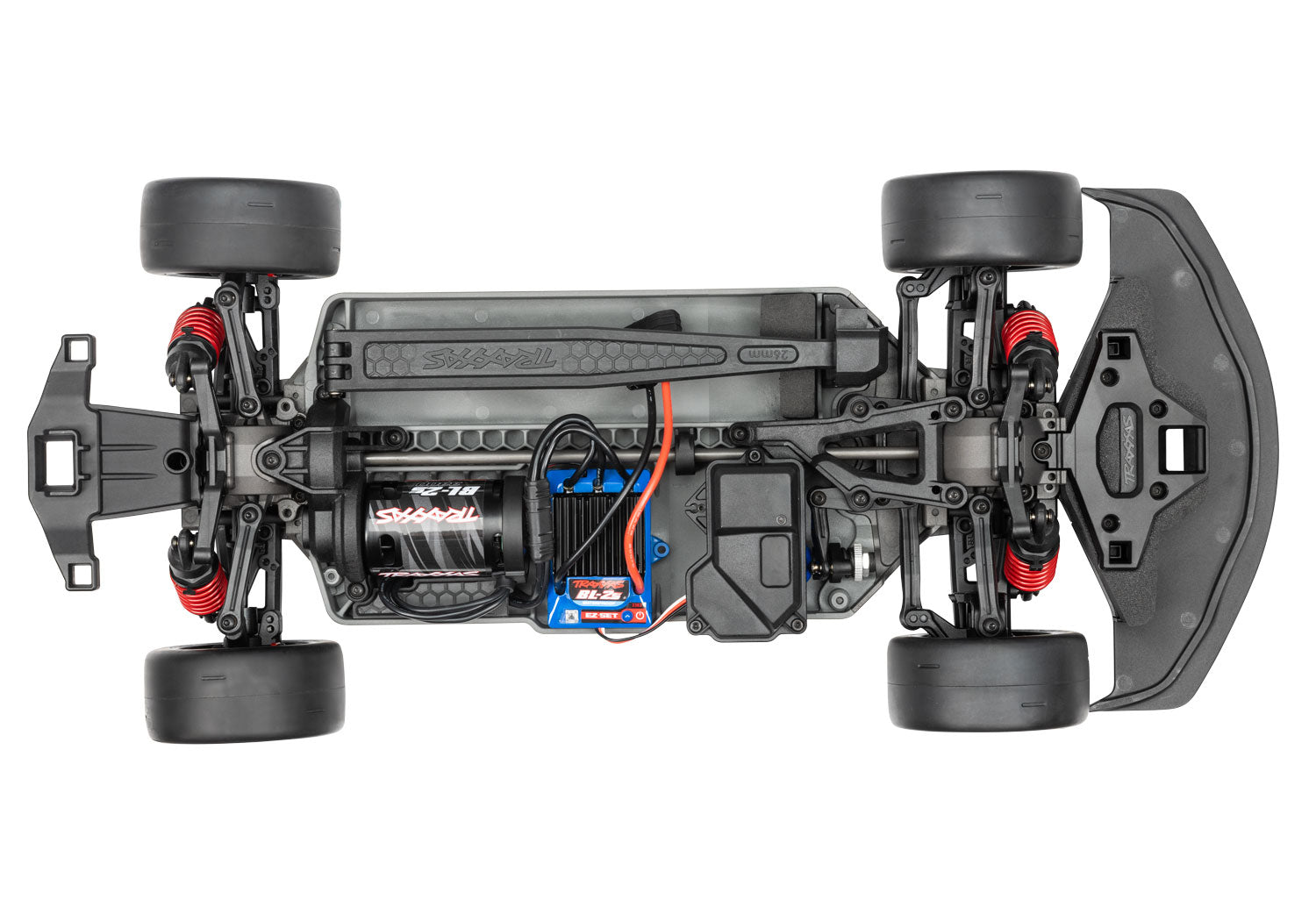

Outfitted with new BL-2s brushless power, Toyota GR Supra GT4 delivers even more on-road excitement. Riding on the ultra-responsive 4-Tec® 3.0 chassis, GR Supra features AWG grip, razor-sharp handling, and 35+mph speed.
Toyota Supra Features
- BL-2s 3300 Brushless motor
- BL-2s Electronic Speed Control
- Full-time 4WD

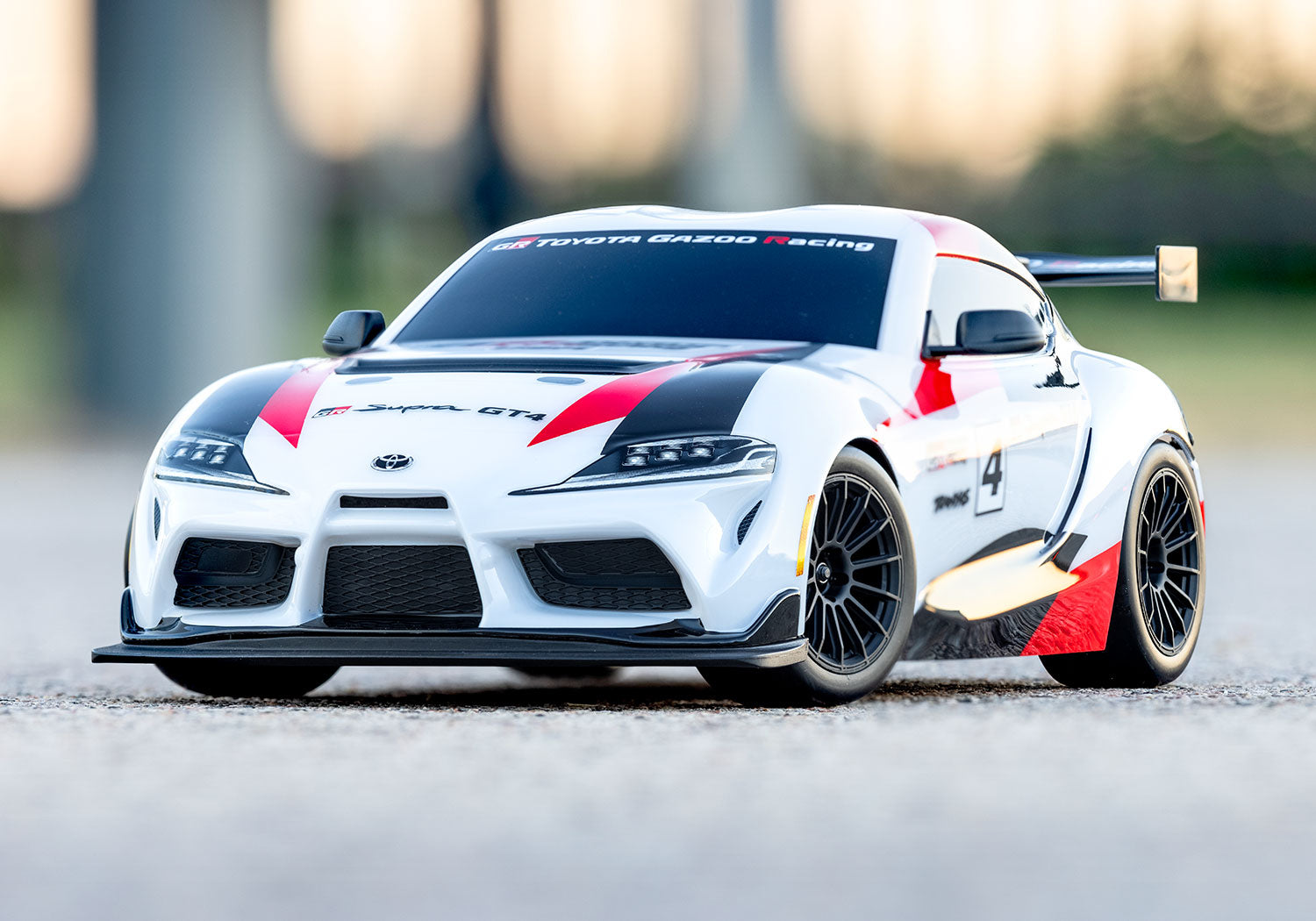

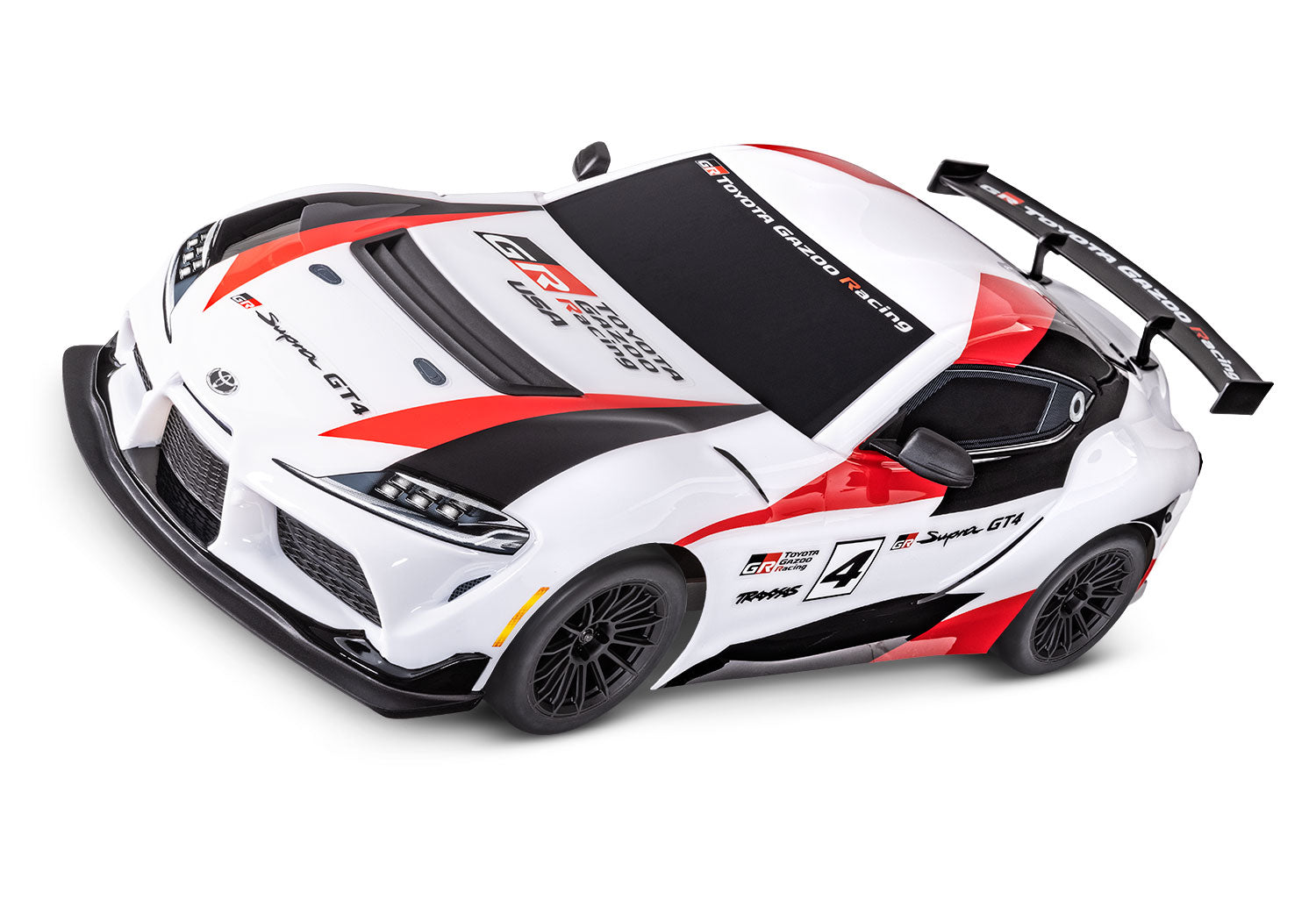

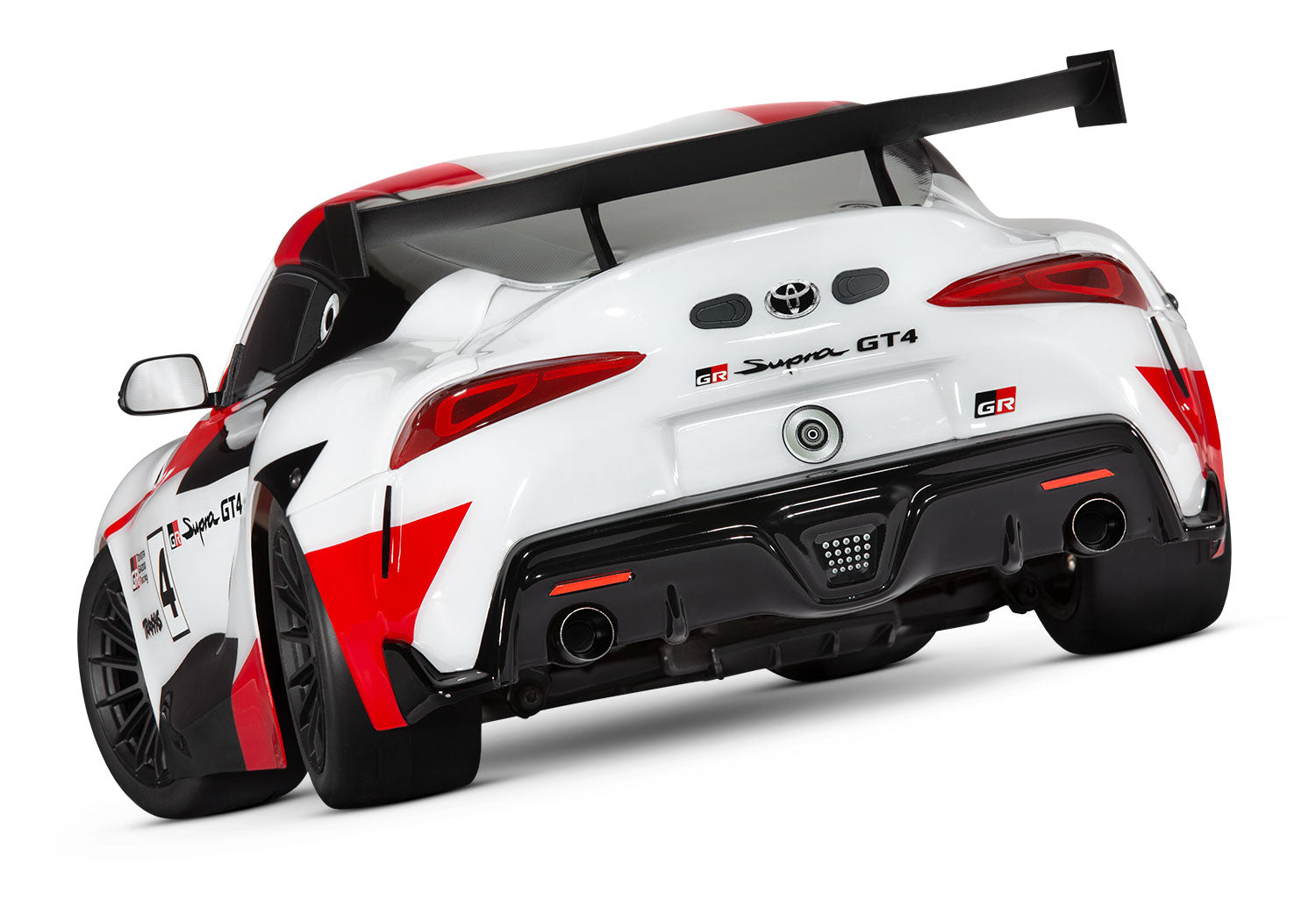

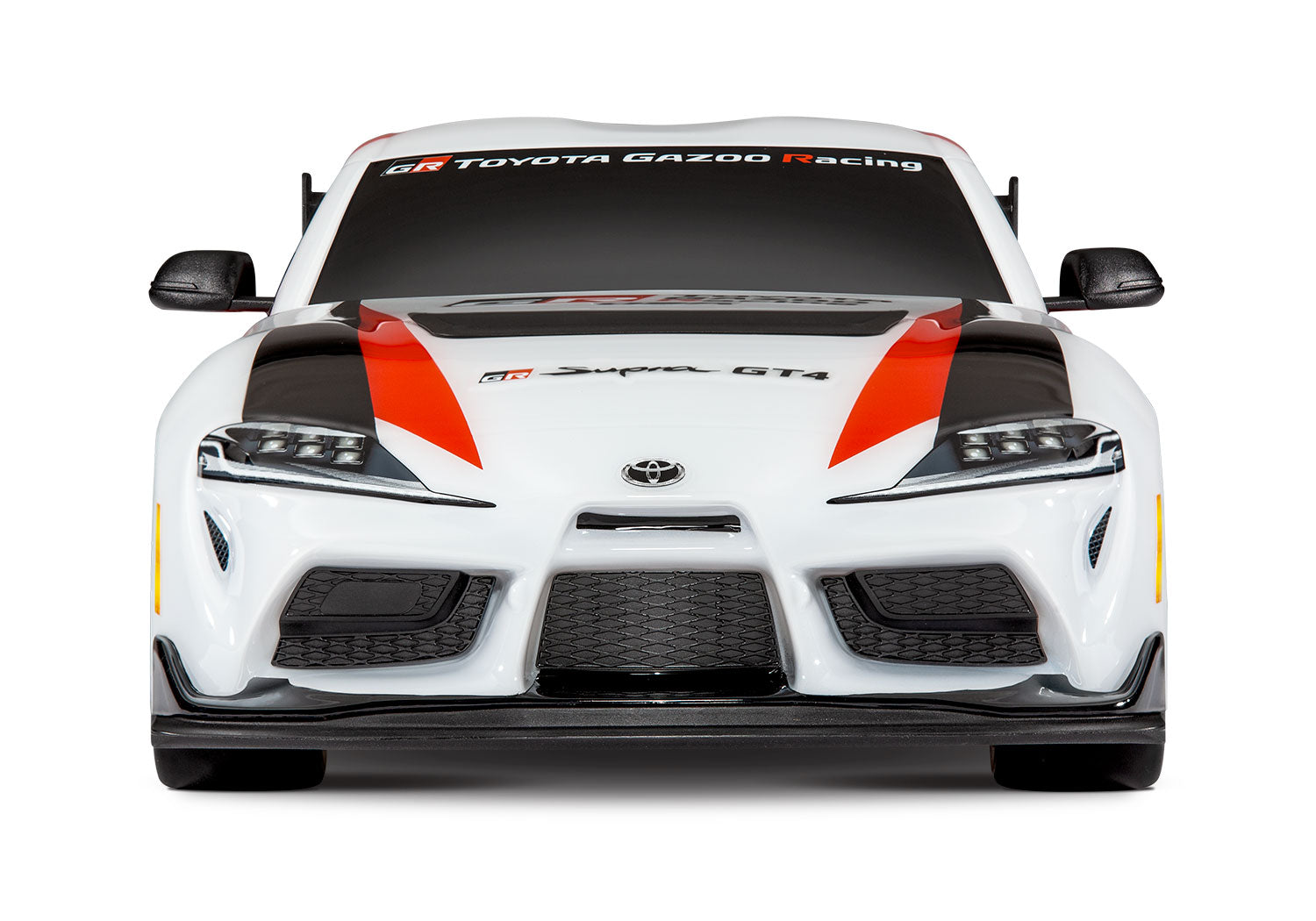

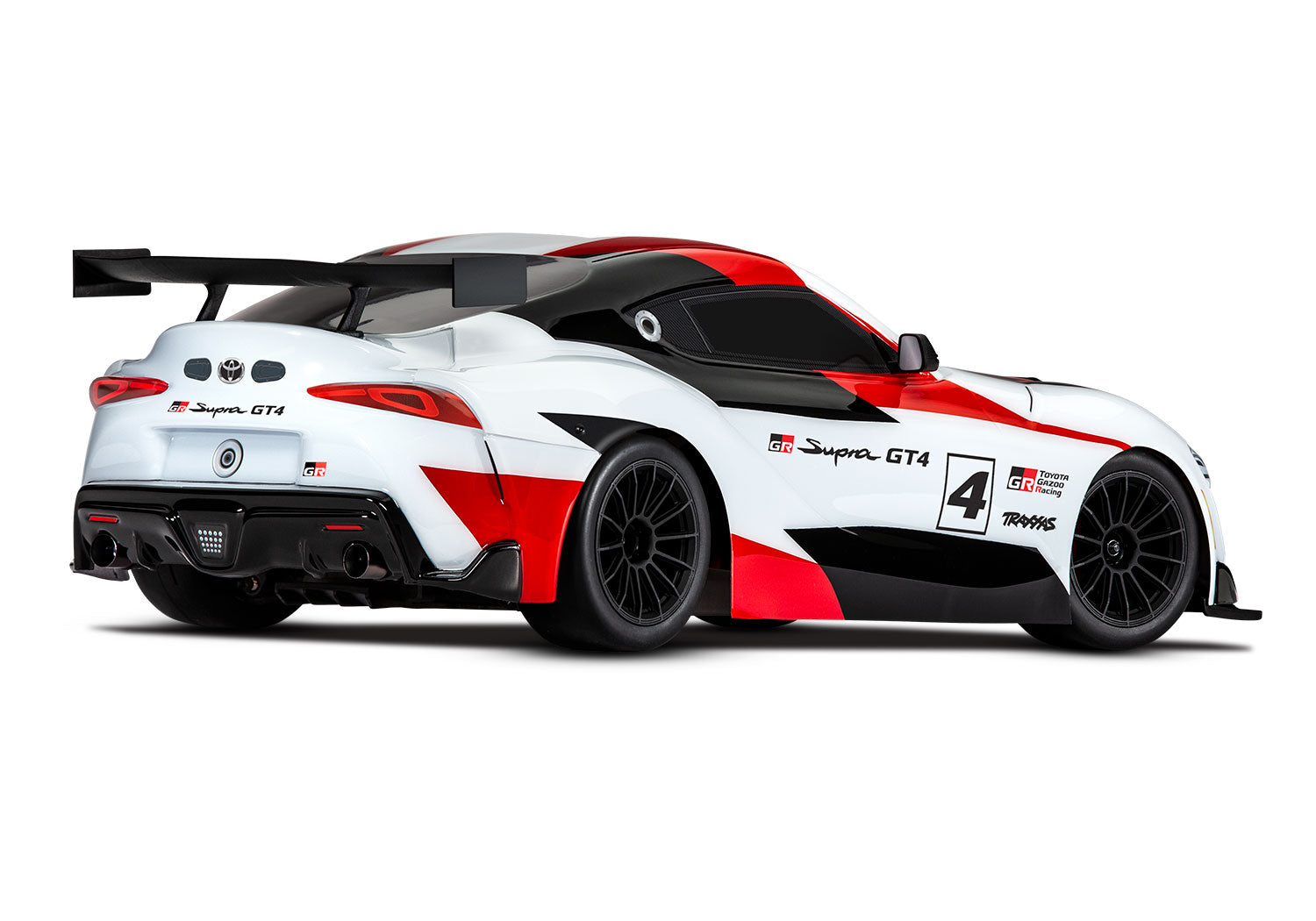

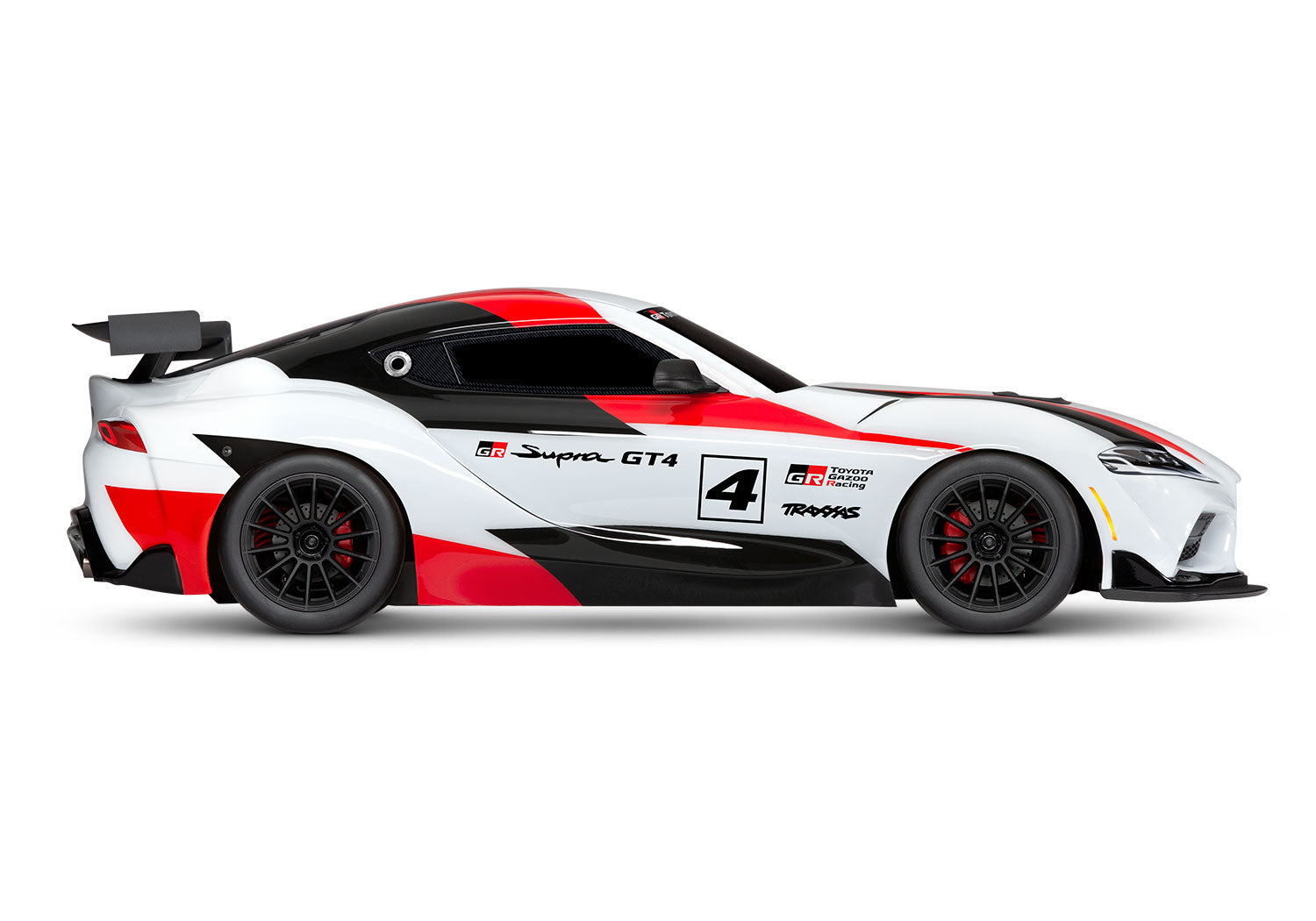

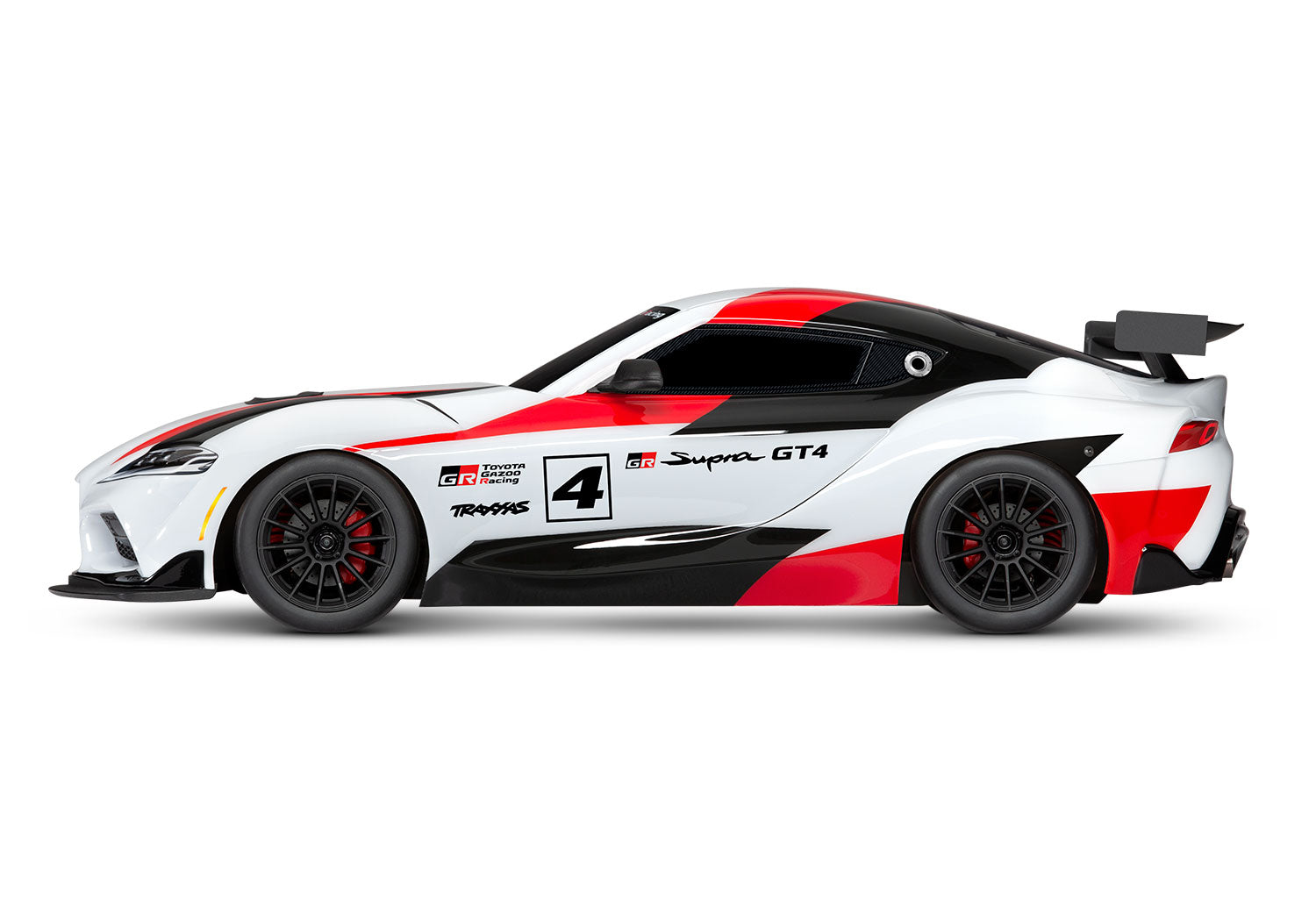

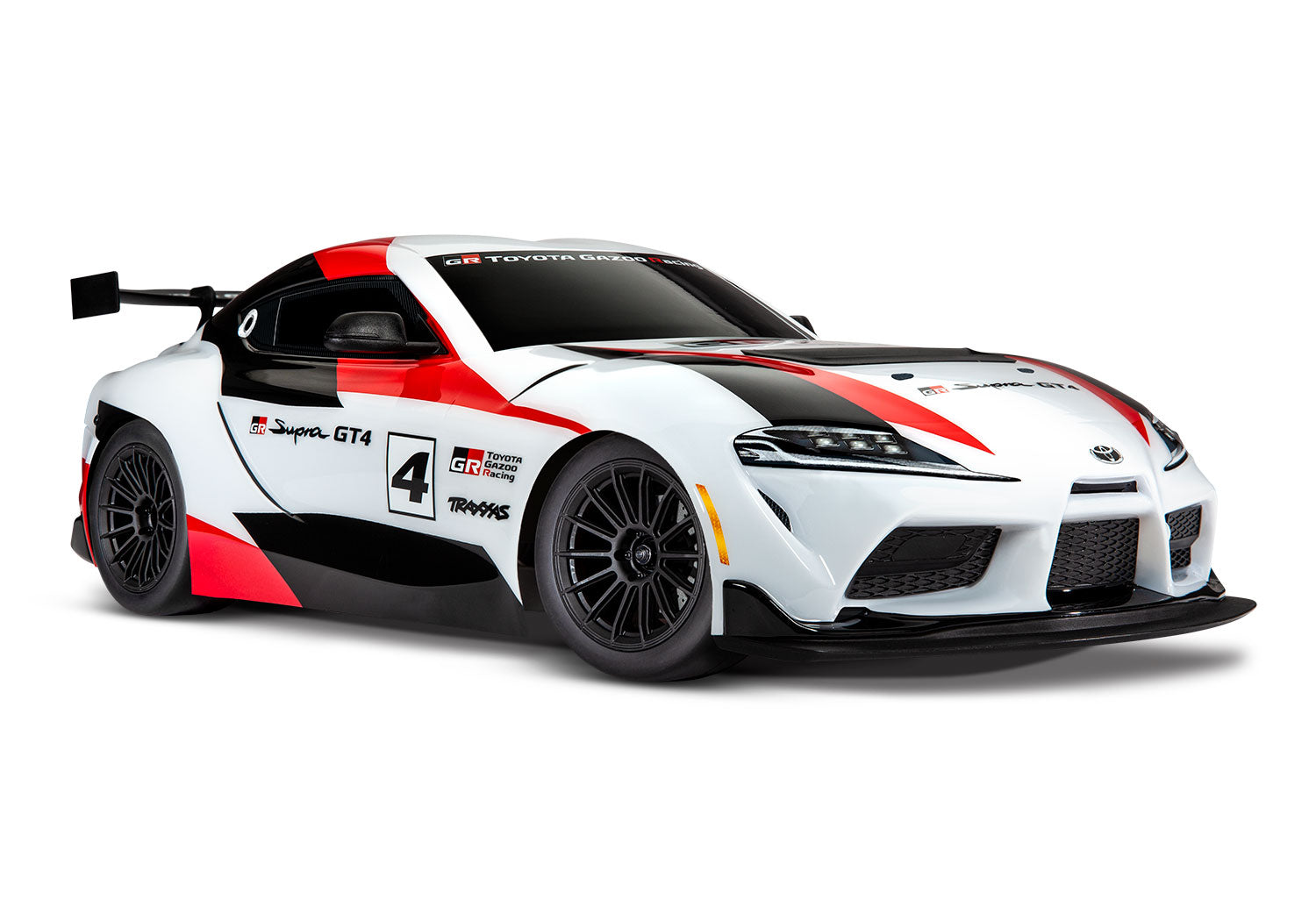

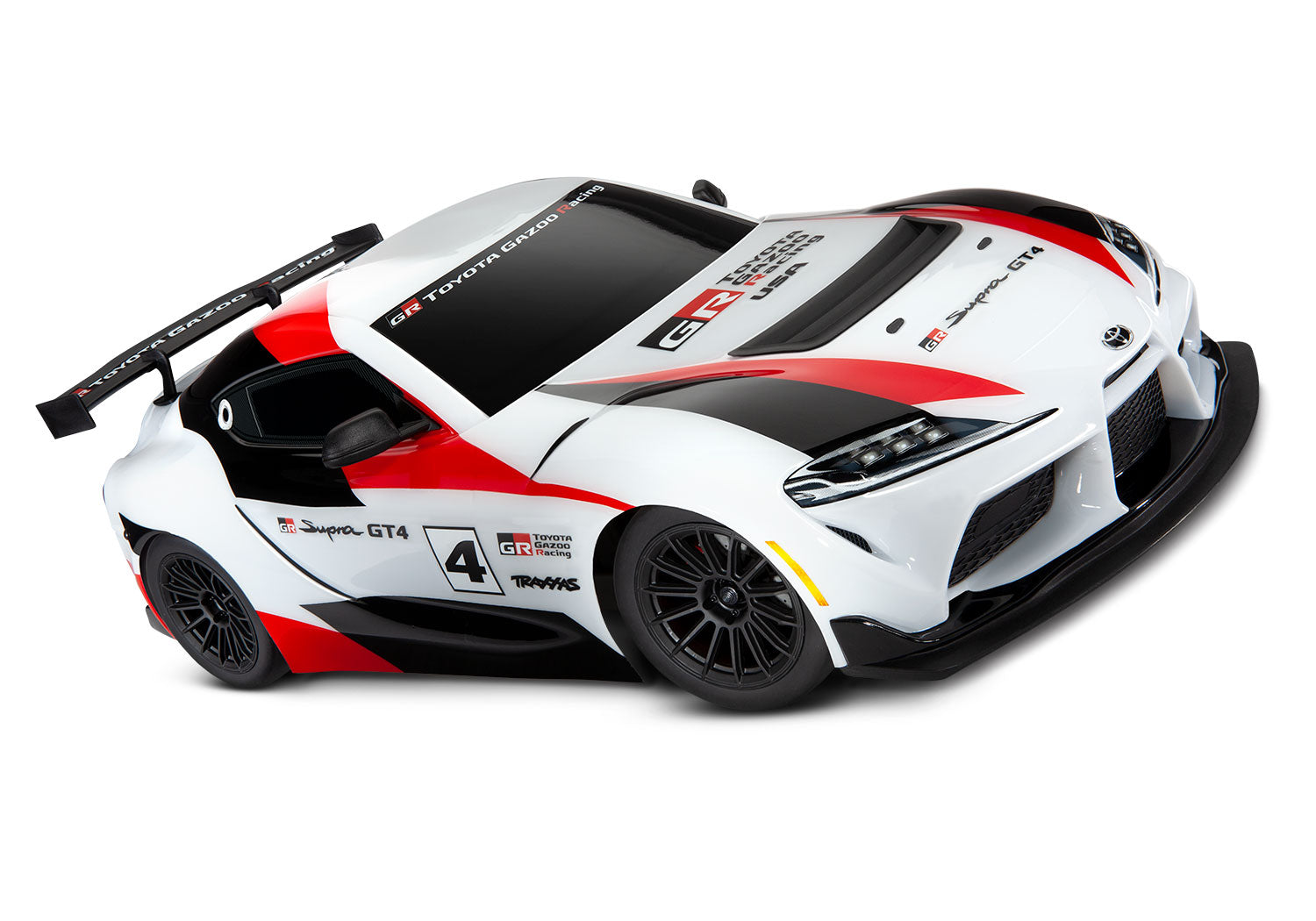

- GR Supra GT4 replica body
- Waterproof electronics for all-weather, all-season R/C excitement
BL-2s Brushless Power System Features
- Top speed increased
- Faster acceleration
- Fan-cooled ball bearing motor
- Unique motor connector
- More efficient for long run times
- No motor brushes to wear out
- Consistent performance
- Practically maintenance-free running
MODEL SPECS
| Model Name: | Toyota GR Supra GT4 |
|---|---|
| Model Type: | On-Road Cars |
| Top Speed: | 35+ mph |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Length: | 19.3 inches (490 mm) |
| Width: | 8.6 inches (219 mm) |
| Height: | 5.6 inches (141 mm) |
| Weight: | 3.92 lbs (1.78 kg) |
| Front Track: | 8.0 inches (204 mm) |
| Rear Track: | 8.0 inches (204 mm) |
| Wheelbase: | 10.7 inches (272 mm) |
|---|---|
| Ground Clearance: | 0.5 inches (14 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single speed direct drive |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | 48 |
| Servo: | 2075 digital high-torque waterproof |
| Radio System: | TQ™ 2.4 GHz 2-channel transmitter |
| Battery Compartment Specs: | 174 mm X 48 mm X 23 mm or 26 mm |
MOTOR SPECS
| Motor Name: | BL-2s 3300 kV |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 7.51 ounces (213 g) |
| Motor Length: | 3.15 inches (80 mm) |
| Motor Diameter: | 1.42 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| ESC Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: | 3.07 ounces (87 g) |
| Motor Connectors: | Traxxas Quick Connect Motor Plug |
| Battery Connectors: | Traxxas High Current Connector |
